Mustek A3 Scanner S 2400 Plus
€399.00
Out of stock
Mustek A3 Scanner S 2400 Plus
€399.00
| Model | Mustek 2400 S Plus |
| Features | |
| Features | ■ Ultra-Slim Type A3 Large Format Scanning ■ Unique Frameless and Narrow Boundary Design ■ 2400 x 2400 dpi Optical Resolution ■ Fast Scanning in 7 sec. at 200 dpi ■ Easy Operation Buttons Design ■ LED Light Source Technology Requires No Warm-up Time ■ Powerful Image Processing Software ■ Convenient Automatic Multiple Images Cropping ■ Direct Scan Function |
Out of stock
| Model | Mustek S 2400 Plus |
| Features | |
| Features | ■ Ultra-Slim Type A3 Large Format Scanning ■ Unique Frameless and Narrow Boundary Design ■ 2400 x 2400dpi Optical Resolution ■ Fast Scanning in 7 sec. at 200 dpi ■ Easy Operation Buttons Design ■ LED Light Source Technology Requires No Warm-up Time ■ Powerful Image Processing Software ■ Convenient Automatic Multiple Images Cropping ■ Direct Scan FunctionSupports Windows & Mac |
| Specifications | |
| Scanner Type | Color Flatbed Scanner |
| Image Sensor | CIS (Contact Image Sensor) |

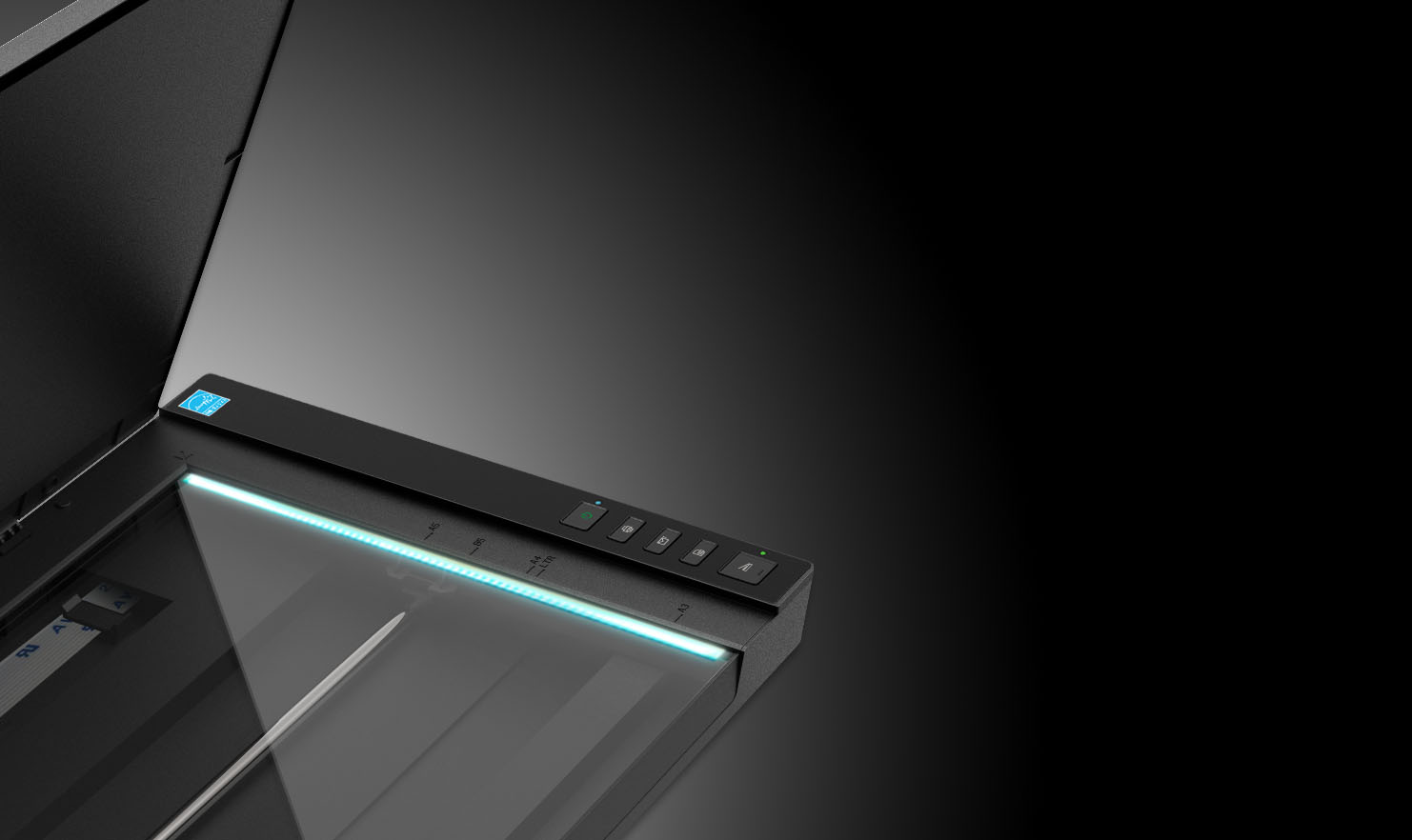

| Light Source | Three-color (RGB) LED |
| Optical Resolution | 2400 dpi x 2400 dpi |
| Color depth | Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output |
| Scanning Speed | 7 sec (200dpi, A3-size color) |
| Function Button | Scan, PDF, Email, Print, Power |
| Max. Scanning Area (W x L) | Max. 304 x 426mm (11.98 x 16.8 inch) |
| Daily Duty Scan ( Sheets ) | Recommended daily duty cycle: 2500 Sheet |
| Power Requirements | 12 VDC, 2.0A, 24W ( Input: 100~120VAC or 200~240VAC, 50~60Hz) |
| Max. Power Consumption | 8.5W |
| Power Saving | 15 min auto power off |
| Operation Temperature | 10 °C – 35 °C (50 °F – 95 °F) |
| Operation Humidity | 10% to 85% RH |
| Interface | High Speed USB 2.0 |
| Protocol | WINDOWS:TWAIN & WIA Compliant ;MAC OS: Image Capture (ICA) driver only |
| Supported File Types | BMP、PNG、JPEG、Multi-page PDF、PDF、Multi-page TIF、TIF |
| Net Weigh | Approx. 4.3 kgs |
| Dimensions (W x D x H) | 565 x 394 x 61 mm |
| OS Compatibility | Microsoft® Windows® 10, 8.1, 8, 7, Vista, XP(SP3) 32 or 64 bit Mac OS 10.7 0r later for Image Capture (ICA) driver only |
| Minimum System Requirements | Intel Core 2 Duo 2.4 GHz Processor or Higher 2 GB RAM (Recommend 4GB) 2GB free HDD space for installing software DVD-ROM drive 1024 x 768 SVGA monitor USB 2.0 Port |
| Software Included | ViiScan, Scan Software Event Utility OCR Engine Arcobat Reader User Manual |
| Accessories | Power Adapter USB Cable Installation DVD Quick Start Guide |
| Logistics information | |
| Inner carton sized | 610 x 535 x 125mm |
| 1-in-1 Shipping Carton Size | 628 x 550 x 133mm |
| N.W. | 4.3 kg |
| G.W. | 6 kg |
| Single EU Pallet | 30 pcs / Pallet |
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 62.8 × 55 × 13.3 cm |
