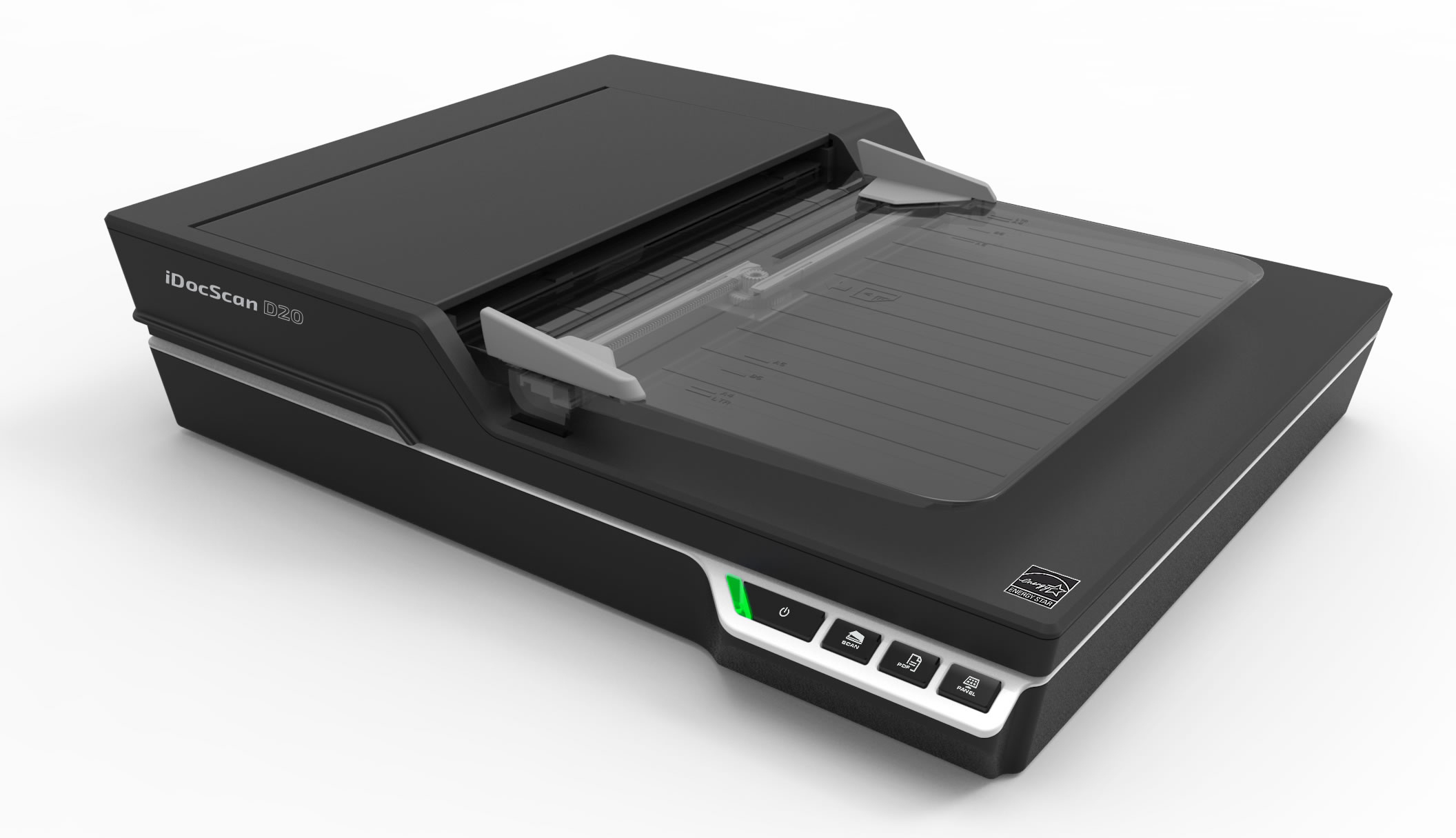

Mustek iDocScan D20
Mustek iDocScan D20
| • Includes a 60-page automatic document feeder and flatbed scanning. | ||||||||
| • Easy one-touch button for Scan, PDF, Print, and e-mail functional operations. | ||||||||
| • Captures the finest details with 1200 dpi optical resolution. | ||||||||
| • Duplex scanning up to 20 ppm/40 ipm in both color and gray | ||||||||
| • Scans various sizes of originals from 2″ x 3.5″ to 8.5″ x 14″. | ||||||||
| • Achieves reliable scanning up to 1,500 pages a day. | ||||||||
| • Convert documents into editable and shareable digital files with bundled software. | ||||||||
| • Power energy saving design. | ||||||||
| SPECIFICATIONS | |||||||||
| Product type | Flatbed / Duplex | ||||||||
| Multi-feed detection | N/A | ||||||||
| ADF Motor | PM | ||||||||
| Automatic Document Feeder | |||||||||
| Scan speed | 20 ppm/40 ipm (color, 200 dpi, A4, 70 g/m2) | ||||||||
| 20 ppm/40 ipm (gray, 200 dpi, A4, 70 g/m2) | |||||||||
| * Scan speed depends on scan software, computer processor and | |||||||||
| memory | |||||||||
| Paper capacity | 60 pages (A4, 70 g/m) | ||||||||
| * Maximum ADF capacity varies, depending upon paper weight | |||||||||
| Paper feeder width | Max.: 9.5″ (242 mm) | ||||||||
| Scan Length | Max.: 128″ (3250 mm) | ||||||||
| Acceptable Paper Weight (thickness) | 5-130 g/m2 | ||||||||
| Optical resolution | 600 dpi | ||||||||
| Daily duty cycle | 1500 sheets | ||||||||
| Roller Lifetime (scans) | 100000 scans | ||||||||
| Scan area | Max.: 8.5″x 14″ / ( 216 x 356 mm) | ||||||||
| Min.: 2″x 3.5″/ (50.8 x 88.9 mm) | |||||||||
| Scan Area | Max.: 8.5″x 11.89″ / ( 215.9 x 302 mm) | ||||||||
| Flatbed | |||||||||
| Scan Speed | approx. 4 sec ( Color, 300 dpi, A4) | ||||||||
| Optical resolution | 1200 dpi | ||||||||
| Dimensions | 430 mm (L) x 334 mm (W) x 100 mm (H) | ||||||||
| 16.9 “x 13.15” (W) x 3.94″(H) | |||||||||
| Power supply P/A | 12V/2A ( Input: 100V ~ 240V, 50/60 Hz) | ||||||||
| Compatible Operating System | Windows XP / Vista / 7/ 8 / 8.1 | ||||||||
| USB cable | |||||||||
| Power Adapter | |||||||||
| Installation CD | |||||||||
| User Manual | |||||||||
| Separation pad x1 | |||||||||
| Paper receiver x1 | |||||||||
| Application CD | Twain driver | ||||||||
| iDocScan | |||||||||
| ABBYY FineReader 9.0 | |||||||||
| ArcSoft Media Impression II | |||||||||
| Adobe Acrobat Reader 5.0 | |||||||||
Additional information
| Weight | 7 kg |
|---|

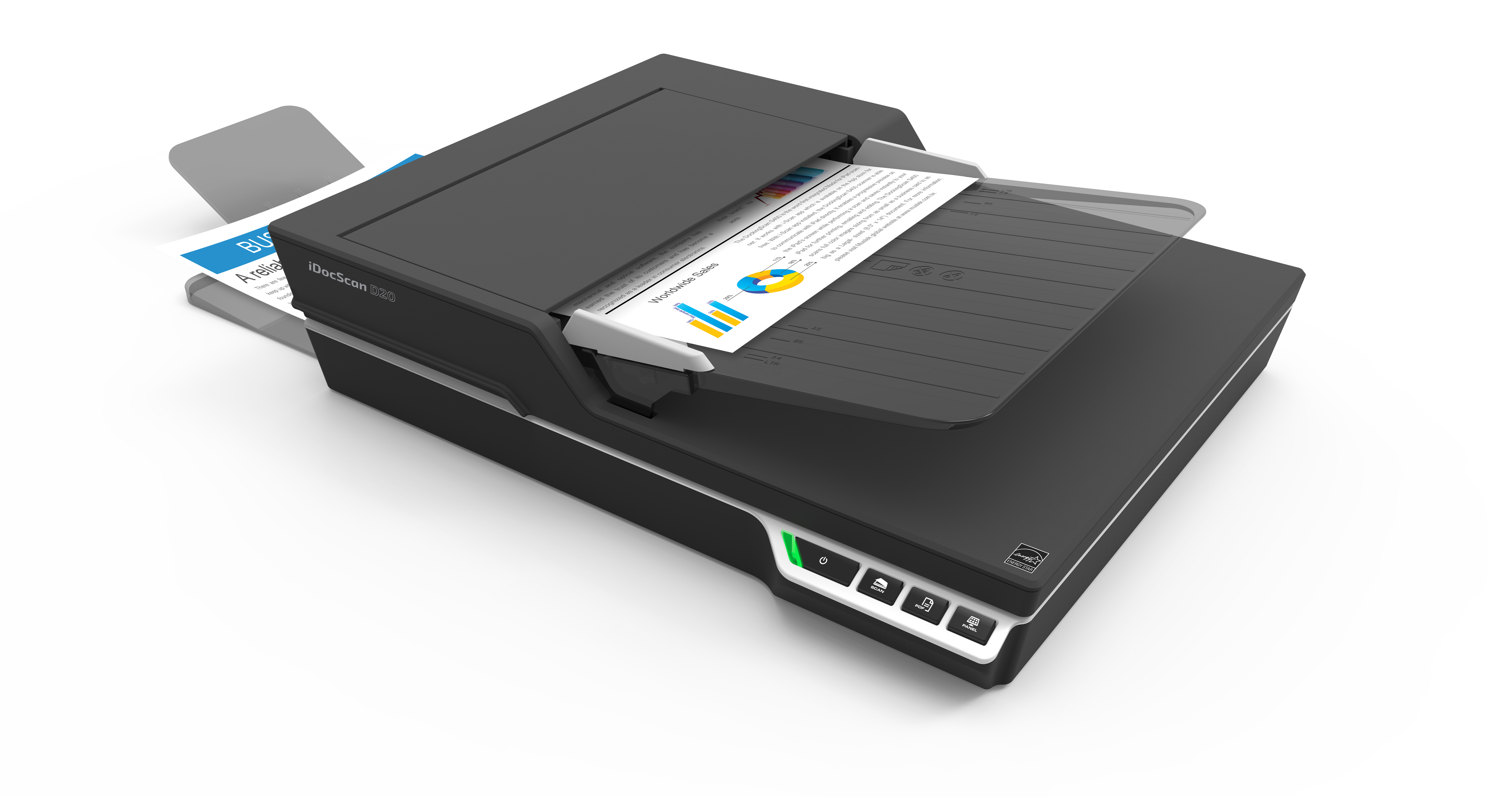

 | ADF_D20-1.jpg | 3.3mb | 14-07-2017 |
