Mustek PowerMust 1500 Netguard LCD Line Int., IEC

Mustek PowerMust 1500 Netguard LCD Line Int., IEC

Features

  • Pure Sine Wave
  • High flexibility with rack/tower design
  • Output power factor 0.9
  • Pogrammable power management outlets
  • Excellent microprocessor control guarantees high reliability
  • Multiple communications available
  • Visual and Audible Alarm System
  • Boost and Buck AVR for voltage stabilization
  • User–friendly and easy shift LCD Display
  • ECO operation for energy saving



SKU: 1500-LCD-LIS-R20 Categories: ,
Specification
MODEL PowerMust 1500 PowerMust 2000 PowerMust 3000
INPUT
Capacity 1500VA/1350W 2000VA/1800W 3000VA/2700W
Power Factor 0,9
Voltage Range 162-290 VAC
Frequency Range 50 / 60 Hz, (Auto Sensing)
OUTPUT
Output voltage 208/220/230/240 VAC
Voltage Regulation (Batt. Mode) ± 1,5% (Before Battery Alarm)
Frequency Range (Batt. Mode) 50 Hz or 60 Hz ± 1 Hz
Waveform (Batt. Mode) Pure Sinewave
Harmonic Distortion 2% @ 100% Linear Load, 5% max @ Non-Linear Load (Before battery Alarm)
Transfer Time Typical 2-6 ms, 10 ms max.
Protection Overload,short, discharge, overcharge and over temperature
BATTERY
Battery Type 12 V / 7 AH 12 V / 9 AH 12 V / 7 AH
Number 4 4 6
Recharge Time 4 hours recover to 90% capacity
BACK-UP TIME
Back up time (half loading) 12 min.  12 min. 12 min.
Back up time ( full loading) 4,5 min. 3,5 min 3,5 min
AUDIBLE ALARM
Battery Mode Sounding every 10 seconds
Low Battery at battery mode Sounding every 2 seconds
Fault Continuously Sounding
Battery Replacement
Overload Sounding every second
PHYSICAL
Dimension, W x L x H (mm) 510 x 438x 88 630 x 438x 88
Net Weight (kgs) 19,5 21,5 29,3
ENVIRONMENT
Operation Humidity 20-80% RH @ 0-40˚ C (non-condensing)
Noise Level Less than 45 dB
INTERFACE
Expandable Battery Yes
EPO (Emergency Power Off) Yes
SNMP/Slot Card Yes
Power Cord Connector Yes
Outlet IEC 8 x
Phoneline/Network Protection RJ45
RS232 Yes
USB Port Yes
LED/LCD LCD
Intelligent Slot Yes
EFFICIENCY
AC Mode 96%
Battery Mode 82%
Buck & Boost Mode 95% & 92%
ACCESSORIES
Accessories Input Power Cord, IEC Output Cable x2, User Guide, CD, Tower Bracket, Fitting Ears x1 , USB Cable
MANAGEMENT
Smart RS 232 or USB Port Supports Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux, Unix, and MAC
Optional SNMP Power Management from SNMP manager and Web browser

Additional information

Weight 5.2 kg

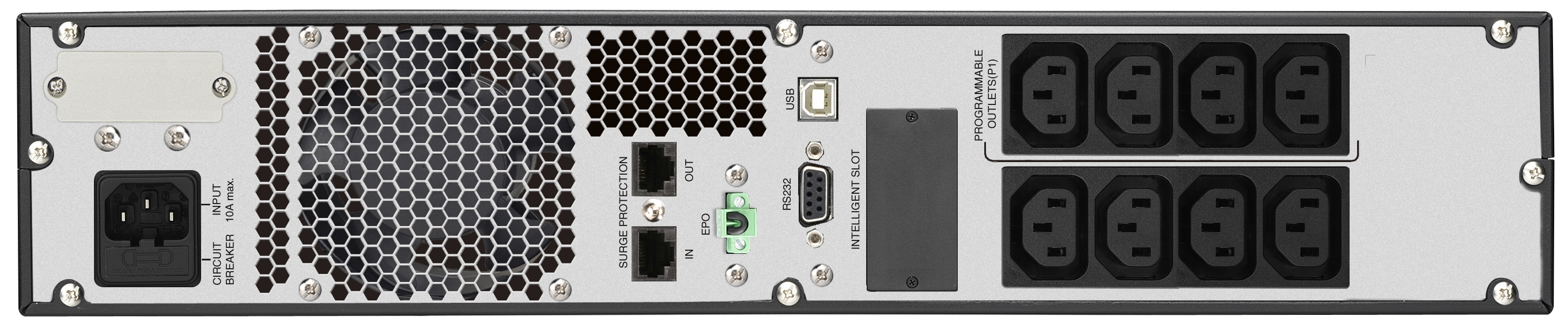

PM 1500 LCD NetGuard Line int IEC back.jpg1mb20-09-2017

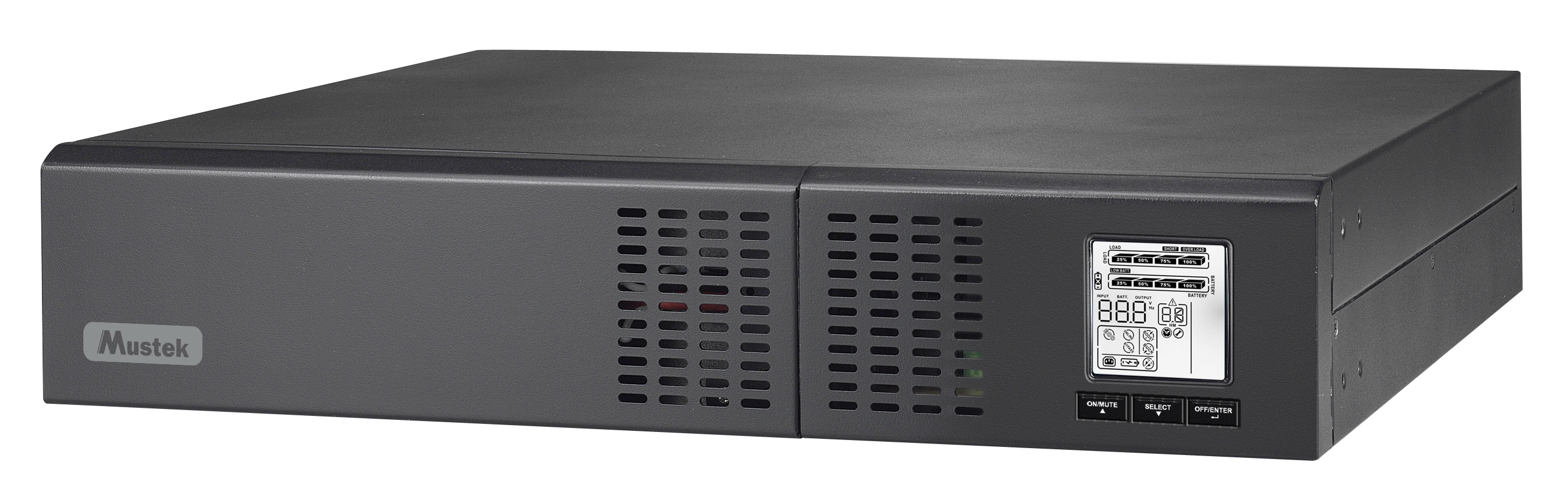

PM 1500-2000-3000 LCD Netguard Line int IEC front.jpg1.2mb20-09-2017
