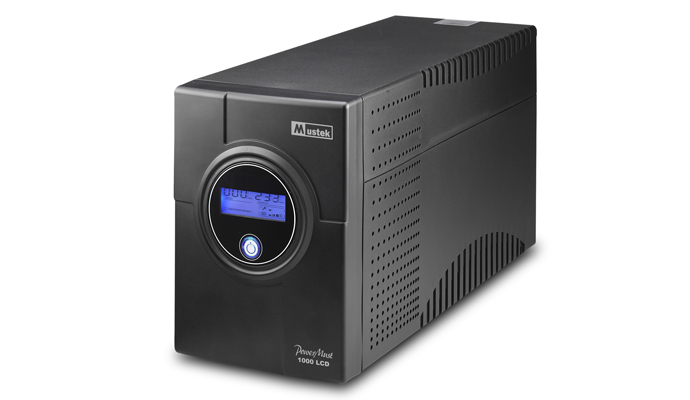

PowerMust 1000 LCD
PowerMust 1000 LCD
| Product type | Uninterrupted power supply; Line-interactive |
| Model | PowerMust 1000 LCD |
| Capacity | 1000 VA / 600W |
| Product type | Uninterrupted power supply; Line-interactive |
| Model | PowerMust 1000 LCD |
| Capacity | 1000 VA / 600W |
| Input | Phase: Single |
| Voltage: 220/230/240 VAC | |
| Voltage range: 166~290 VAC ±5% | |
| Frequency: 50 / 60Hz (Auto Sensing) | |
| Frequency range: 45 ~ 55 Hz / 55 ~ 65Hz | |
| Output | Phase: Single |
| Voltage (Batt. mode): 220/230/240 VAC | |
| Voltage regulation (Batt. mode): ±10% | |
| Frequency: 50Hz or 60Hz | |
| Frequency regulation (Batt. mode): ±1Hz | |
| Output waveform (Batt. mode): Modified Sinewave | |
| Battery | Battery type & number: 12V/7AH * 2 pcs |
| Back up time (at a PC load with 15″ monitor): 40 minutes |
|
| Recharge time: 10 hours to 90 % after complete discharge |
|
| Transfer time | Typical: 4~8 ms |
| Indicator | LCD: The LCD will turn on when the UPS works including in off charging mode and fault mode |
| Audible alarm | Battery mode: Sounding every 10 seconds |
| Low battery at battery mode: Sounding every second | |
| Fault: Continously sourding | |
| Battery replacement: Sounding every 2 seconds | |
| Overload: Sounding every 0.5 second | |
| Protection | Full protection: Discharge, overcharge, and overload protection |
| Physical | Dimension, D*W*H (mm): 405*205*145 |
| Net weight (kgs): 9.6 | |
| Environment | Operating Environment: 0- 40°C, 0-90 % relative humidity (non-condensing) |
| Noise Level: Less than 45dB | |

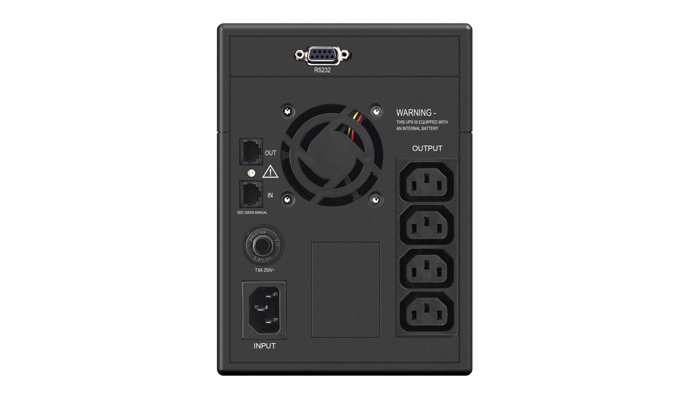

| Interface | Smart RS-232: Support Windows family, Linux, IBM Aix, Sun Solaris, Compaq True64, UnixWare, FreeBSD, HP-UX, and MAC |
| Accessories | AC input cablex1, IEC output cable x2, RS-232 cable x1, application CD, user guide |
