PowerMust 1000 Offline

PowerMust 1000 Offline

Product type Uninterrupted power supply; Offline
Capacity 1000VA/600W
Categories: ,
Product type Uninterrupted power supply; Offline
Capacity 1000VA/600W
Input Phase: Single
Voltage: 110/120 VAC or 220/230/240 VAC
Voltage range: 90~145 VAC / 170~270 VAC ±4VAC
Frequency: 50 / 60Hz
Frequency range: Min. 43HZ
Output Phase: Single
Voltage: 120 VAC or 220 VAC
Voltage regulation ( Batt. mode ): ± 10%
Frequency: 50 Hz or 60Hz
Frequency redulation ( Batt. mode ): ±1Hz
Output waveform ( Batt. mode ): Modified sinewave
Power factor 0,6
Battetry Battery type & number: 12V/7,2Ah *2 pc
Back up time ( at a PC load with 15″
monitor ): 30 minutes
Back up time ( at a PC load with 17″
monitor ): N/A
Recharge time: 10 hours to 90% after complete discharge
Transfer time Typical: 2-6ms, 12ms Max
Indicator AC mode: Green lighting
Battery mode: Green LED flashing every 4 seconds
Low battery at battery mode: Green LED flashing every second
Fault: Red LED lighting
Battery weak at AC mode: Red LED flashing every 2 seconds for 30 seconds
Battery fault at AC mode: Red LED flashing 3 times every 2 seconds
Overload: Red LED flashing twice every
second
Audible alarm Battery mode: Sounding every 4 seconds
Low battery at battery mode: Sounding every second
Fault: Continuously Sounding
Battery weak at AC mode: Sounding every 2 seconds for 30 seconds
Battery fault at AC mode: Sounding 3 times every 2 seconds
Battery replacement: N/A
Overload: Sounding twice every second
Protection Full protection: Discharge, overcharge, and overload protection
Physical Dimension, D*W*H (mm): 280*90.6*237.7
Net weight (kg): 6,5
Environment Operating Environment: 0- 40°C, 20-90 % relative
humidity (non-condensing)
Operating environment Humidity: 0-95 % RH @ 0- 40°C (non-condensing)
Noise Level: Less than 40dB
Interface Smart RS-232: N/A
USB Port: N/A
Accessories IEC output cable x1, User guide

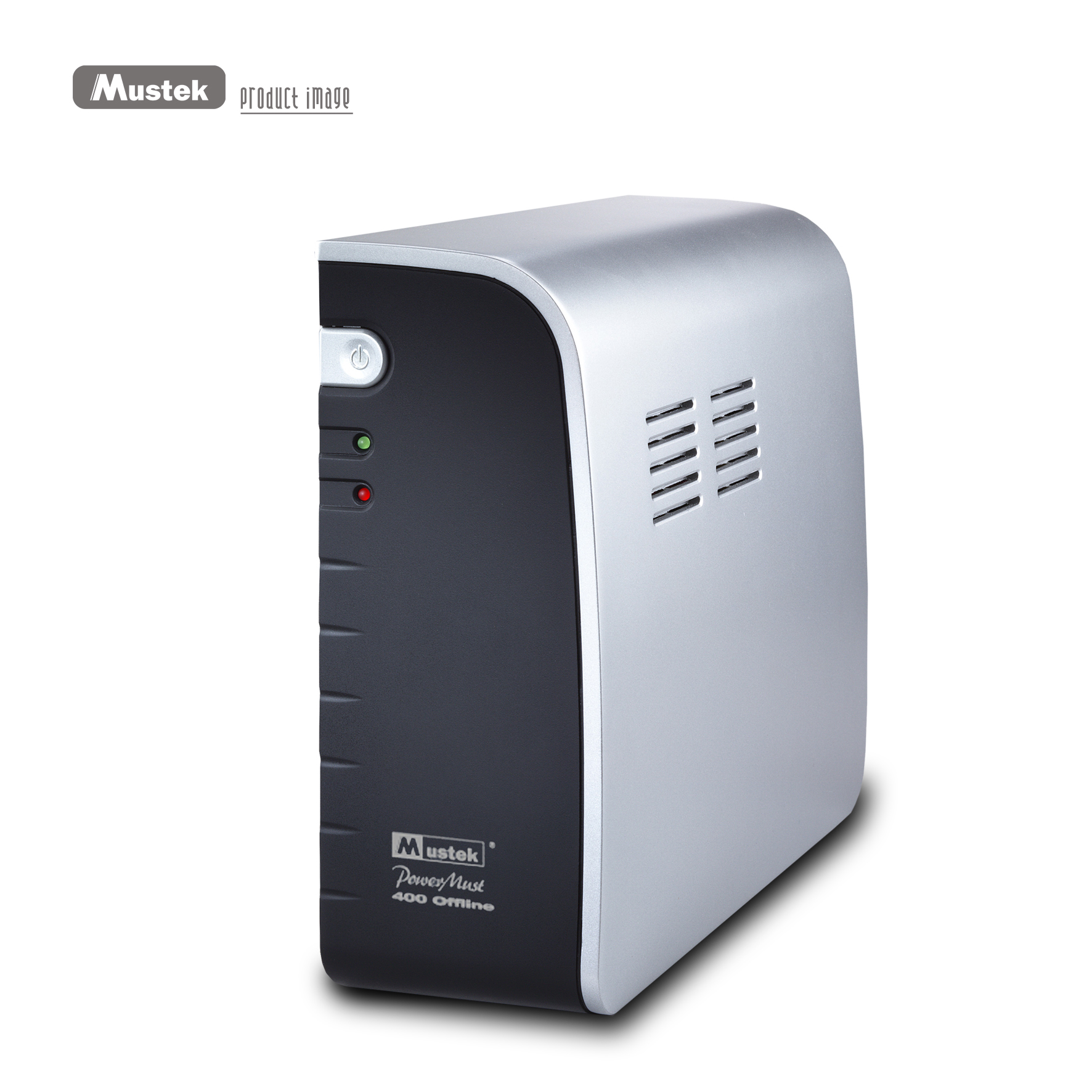

15x15 product image 300dpi PowerMust400 Offline-tower.jpg0.9mb14-07-2017

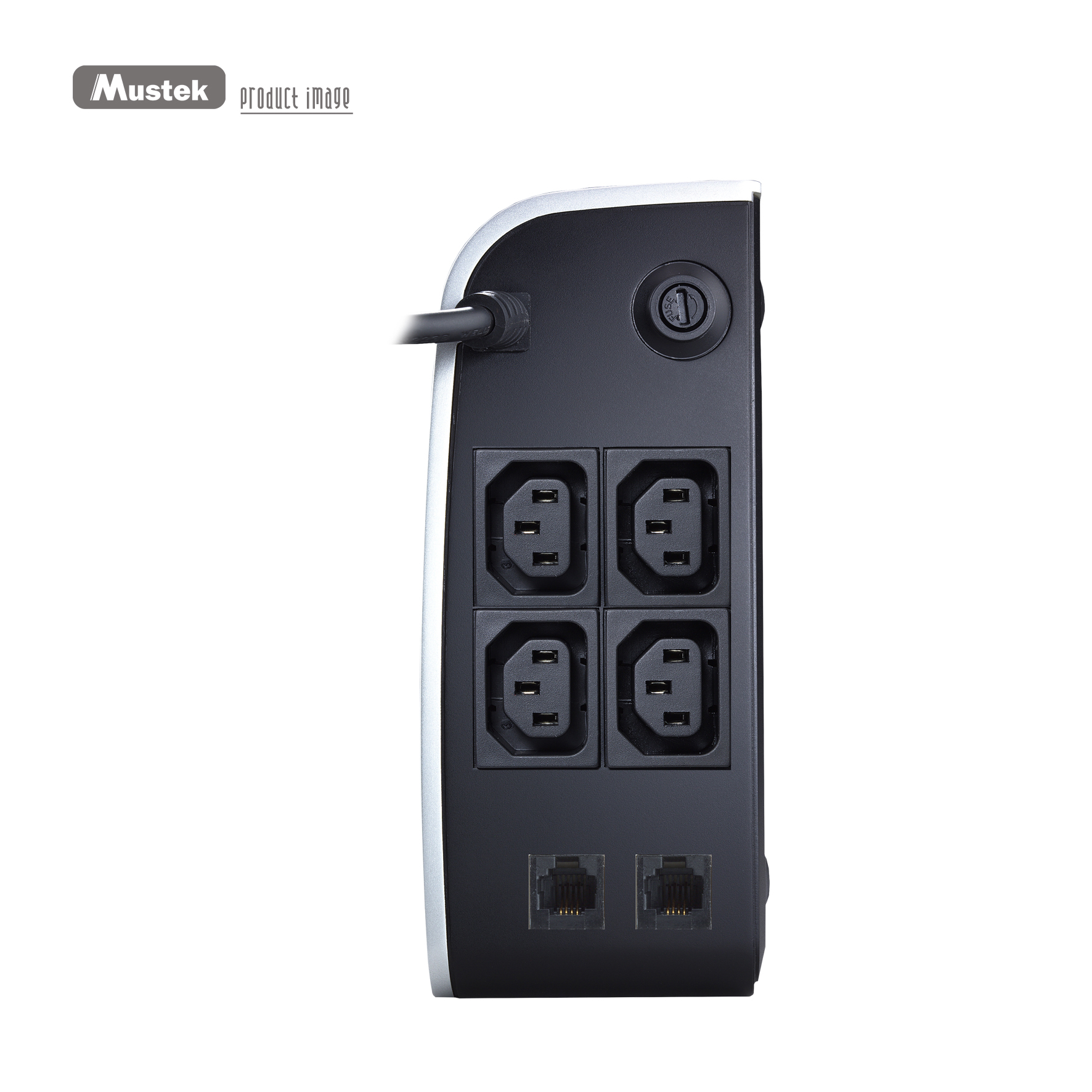

15x15 product image 300dpi PowerMust1000 Offline-back.jpg0.8mb14-07-2017
15x15 product image 300dpi PowerMust600 Offline-rack.jpg0.8mb14-07-2017

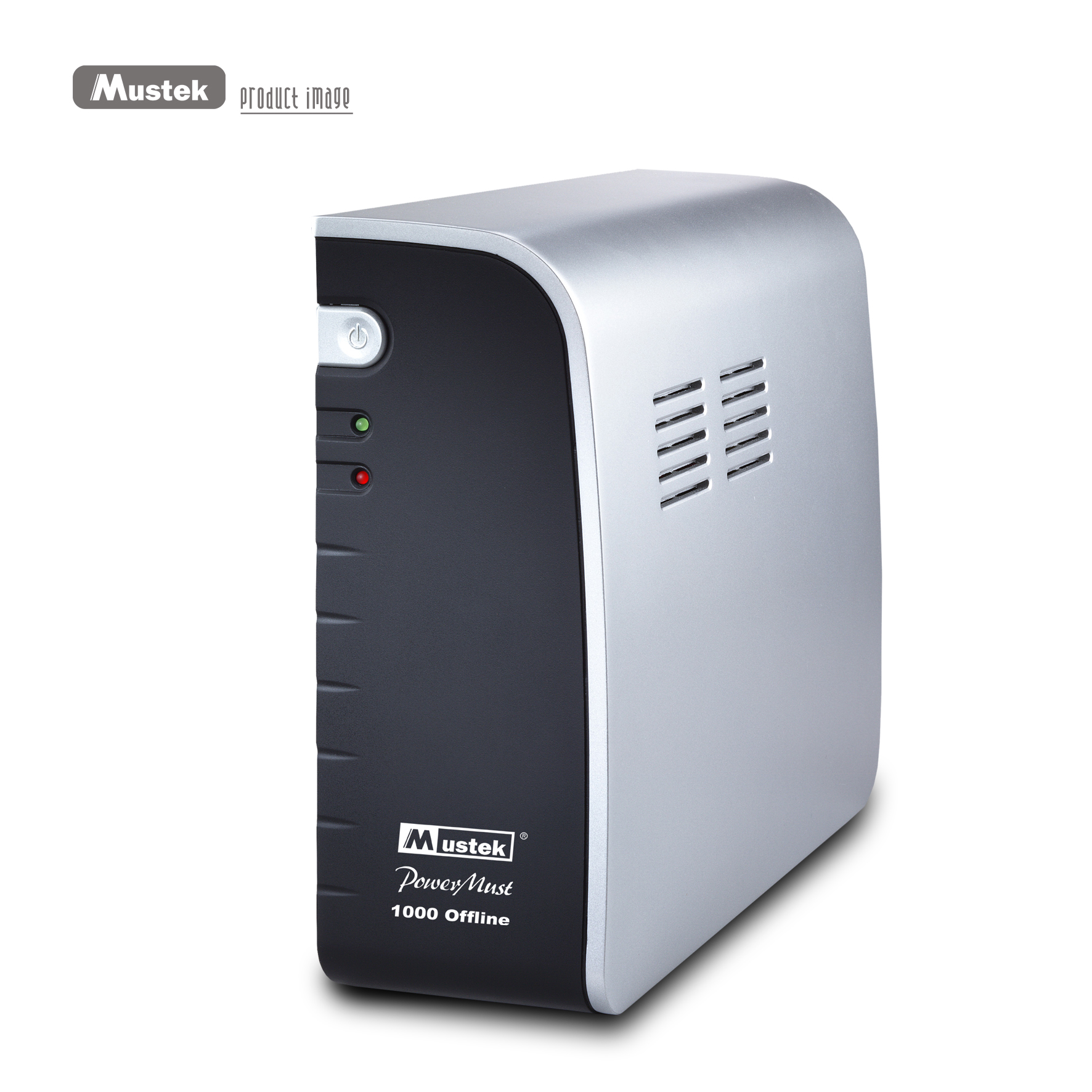

15x15 product image 300dpi PowerMust 1000 Offline-tower.jpg1mb14-07-2017

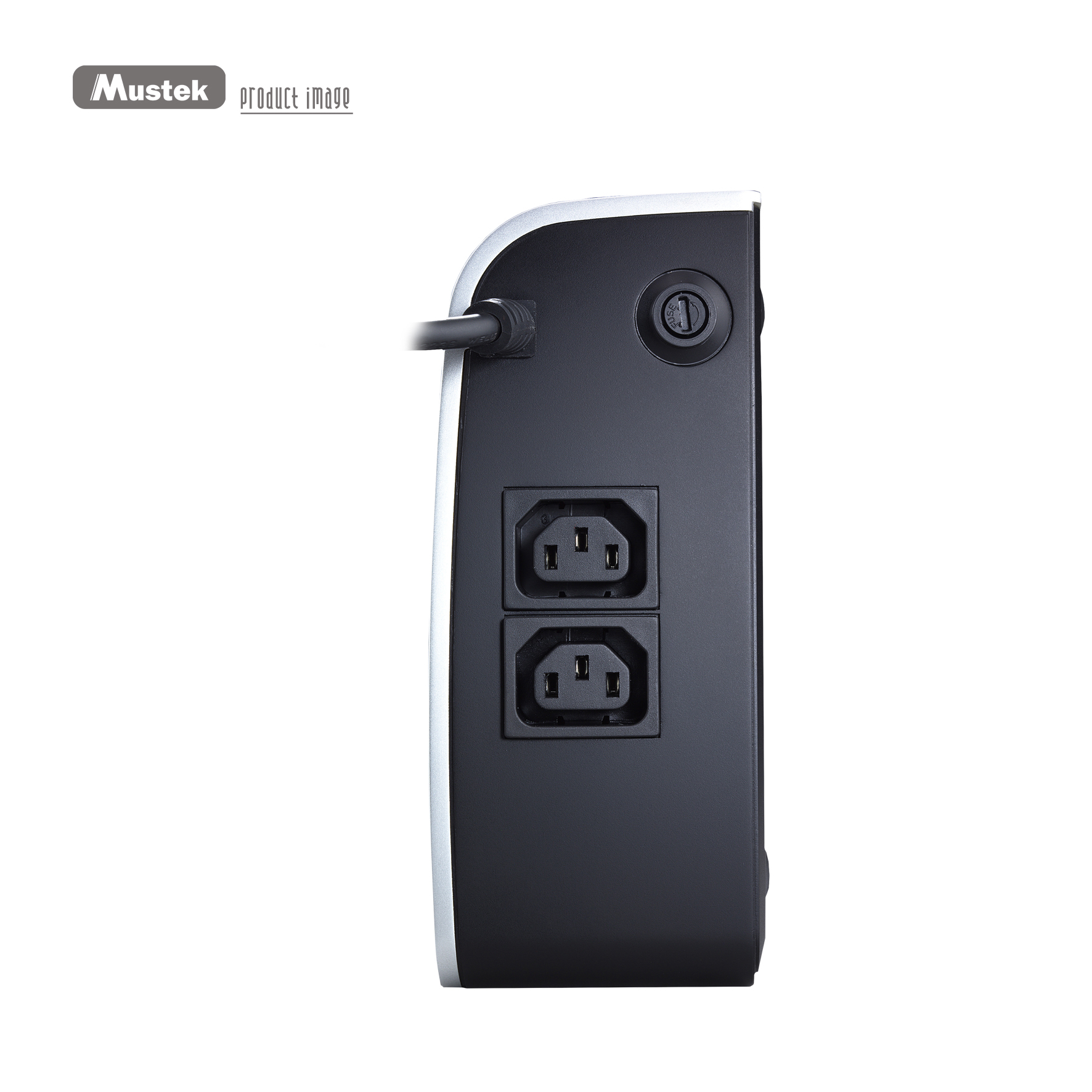

15x15 product image 300dpi PowerMust600 Offline-back.jpg0.7mb14-07-2017

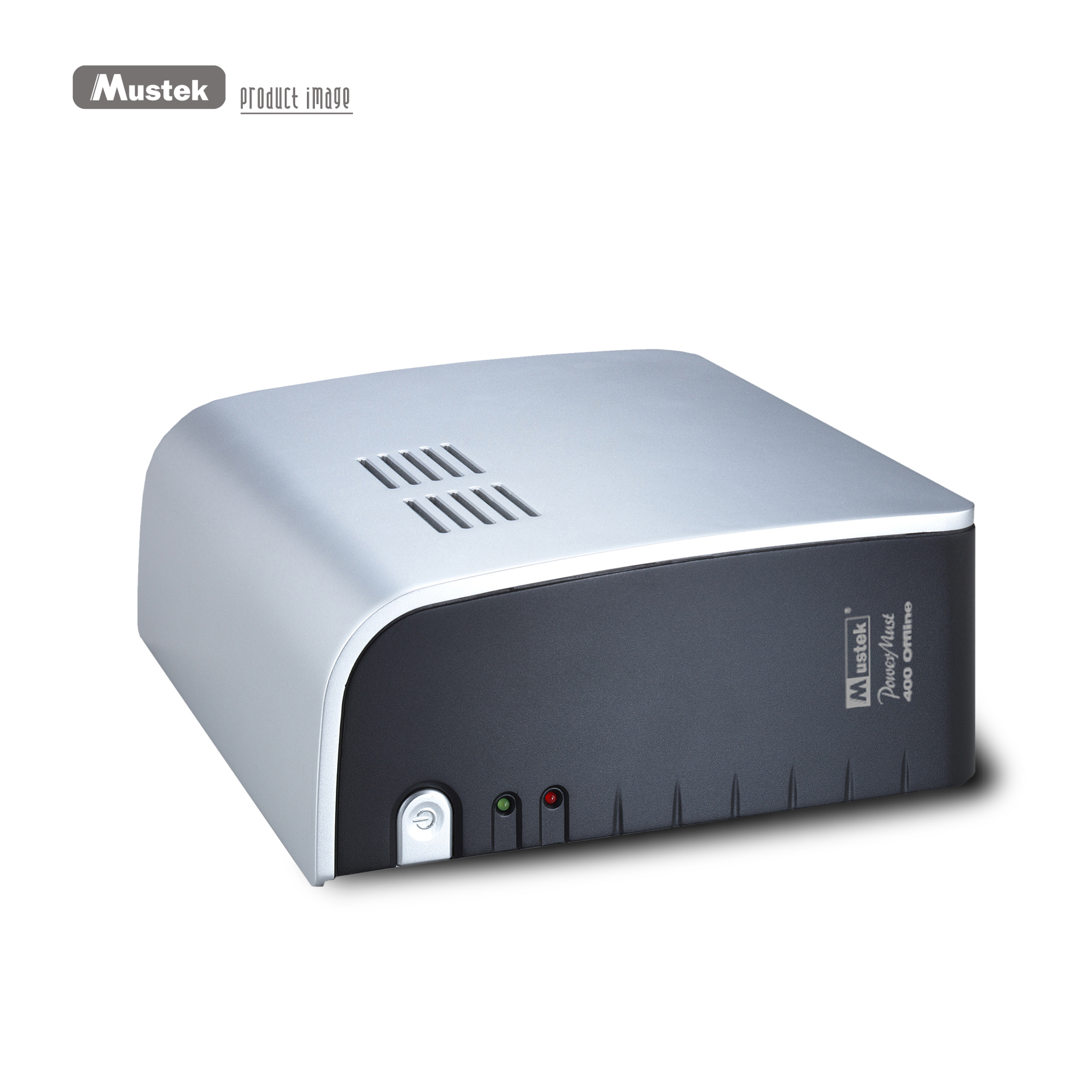

15x15 product image 300dpi PowerMust400 Offline-rack.jpg0.8mb14-07-2017
