PowerMust 10800 Online LCD

Product type	Uninterrupted power supply; Online
Capacity	10000 VA / 8000 W
Input	Voltage Range Low line transfer: 176 VAC @ 100% load 110 VAC @ 50% load
	Voltage Range Low line/Comeback: 186 VAC @ 100% load 120 VAC @ 50% load
	Voltage Range High line transfer: 300 VAC
	Voltage Range Low line/Comeback: 290 VAC
	Voltage Range Frequency range: 46~54 Hz or 56~64 Hz
	Voltage Range Phase: Single phase with ground
	Voltage Range Power factor: ≧ 0.99 @ 100% load
Output	AC voltage regulation (Batt. mode): ±1 %
	Frequency range (Synchronized Range): 46~54 Hz or 56~64 Hz
	Frequency range (Batt. mode): 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
	Current crest ratio: 3:1
	Harmonic distortion: ≦ 3 % THD (Linear Load) ≦ 6 % THD(Non-linear Load)
	Transfer time AC to DC: Zero
	Transfer time Inverter to Bypass: Zero
	Waveform (Batt. mode): Pure Sine Wave
Efficiency	To AC mode: 89%
	To battery mode: 88%
Battetry	Battery voltage: 12 V / 9 Ah x 20
	Typical recharge time: 7 hours recover to 90% capacity
	Charging current (max.): 1.0 A
	Charging voltage: 273 VDC
Indicators	LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Alarm	Battery mode: Sounding every 4 seconds
	Low battery: Sounding every second
	Overload: Sounding twice every second
	Fault: Continuously sounding
Physical	Dimension, DXWXH (mm): 592 X 250 X 576
	Net weight (kg): 83
Operating environment	Humidity: 20-90 % RH @ 0- 40°C (non-condensing)
	Noise level: Less than 58dB
Management	Smart RS-232/USB: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
	Optional SNMP: Power management from SNMP manager and web browser
Accessories	User guide, Software CD, USB cable, optional: SNMP card

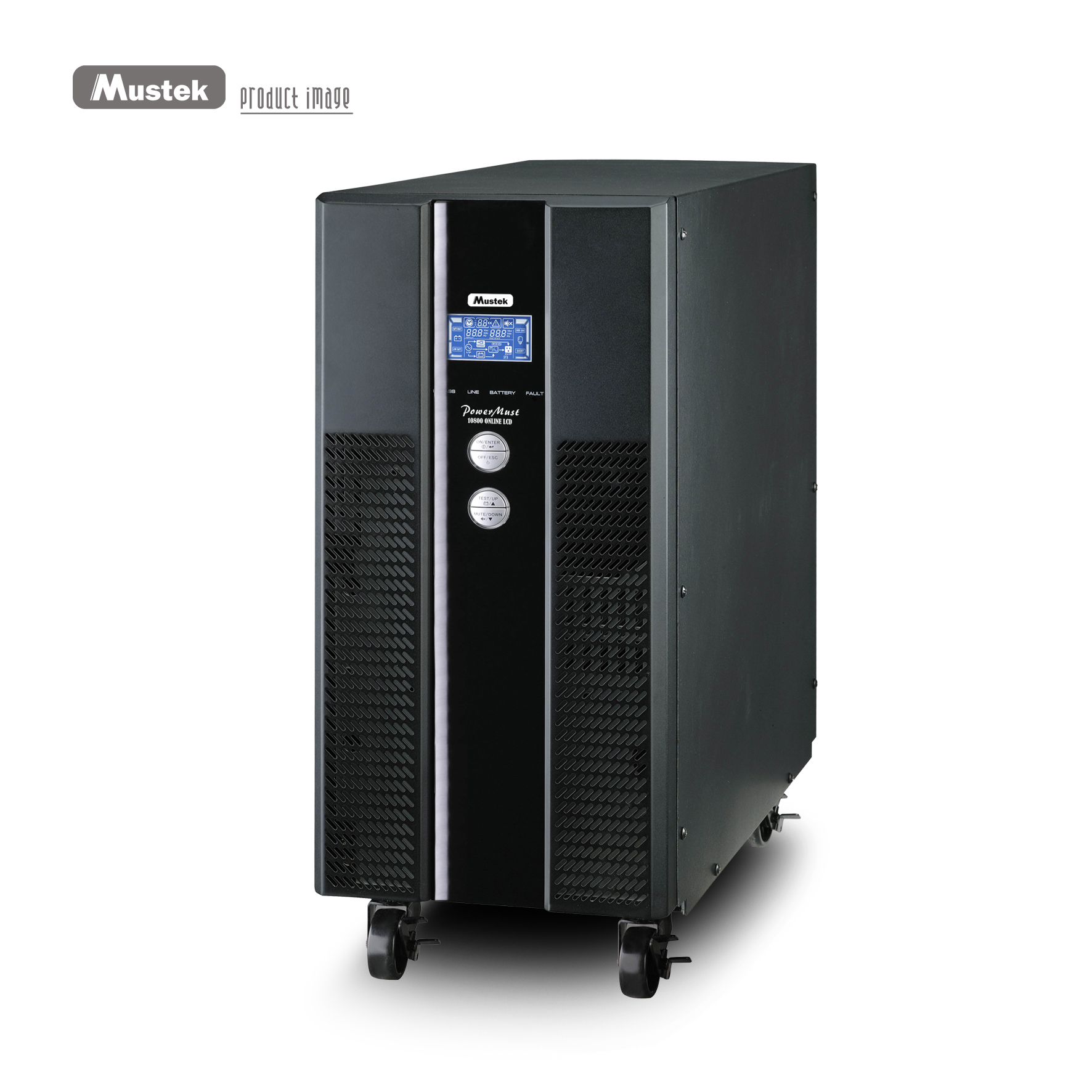

	15x15 product image 300dpi PowerMust 10800 Online LCD.jpg	0.8mb	14-07-2017

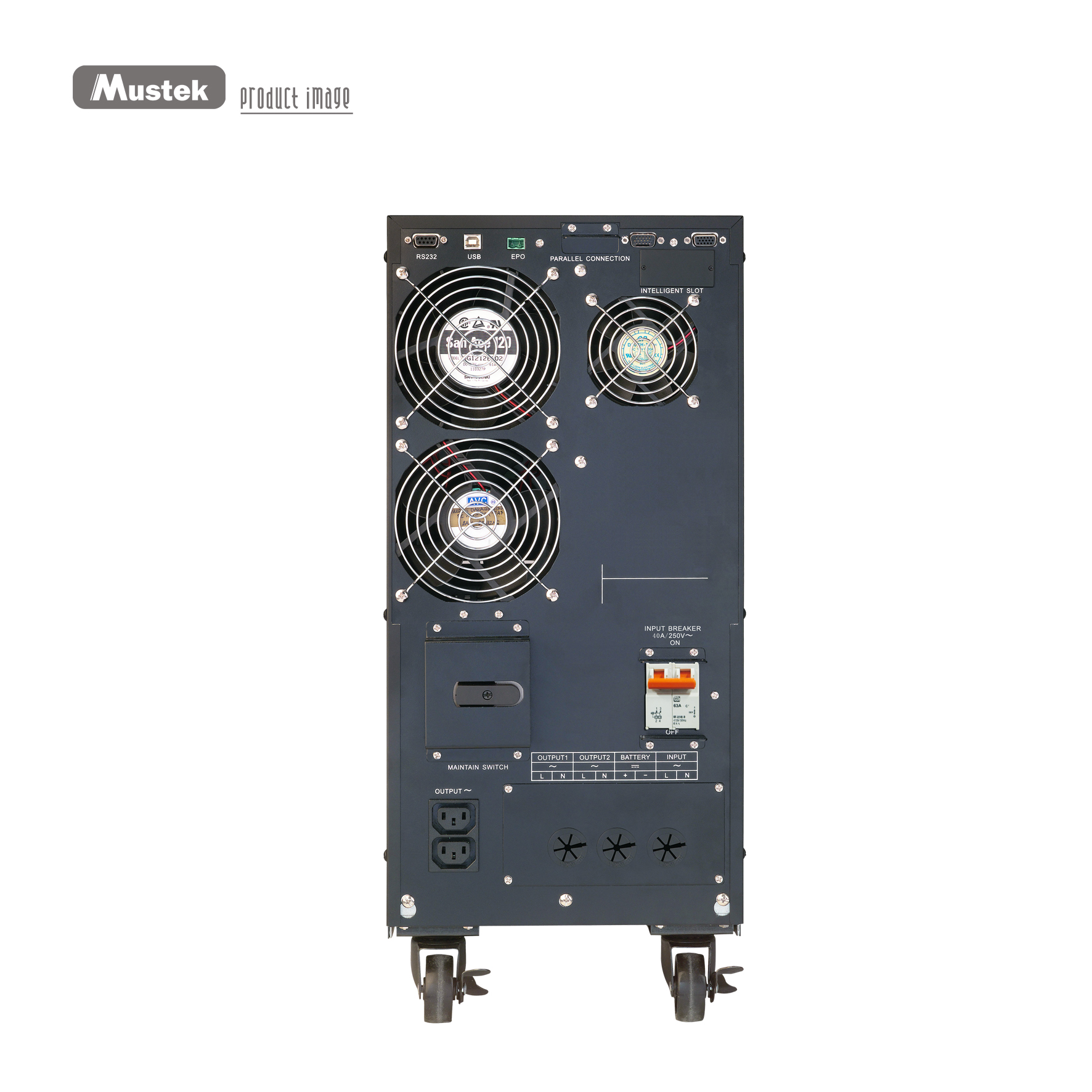

	15x15 product image 300dpi PowerMust 6048 10800 Online LCD_back.jpg	0.8mb	14-07-2017
