PowerMust 2012

Product type	Uninterrupted power supply; Line interactive
Capacity	2000 VA / 1200 W
Input	Voltage: 110/120 VAC or 220/230/240 VAC
	Voltage range: 81-145 VAC / 162-290 VAC
	Frequency range: 60/50 Hz (auto sensing)
Output	AC voltage regulation (Batt. mode): ± 10%
	Frequency range (Batt. mode): 50Hz or 60Hz ± 1Hz
	Transfer time: Typical 2-6 ms, 10ms max.
	Waveform (Batt. mode) Simulated Sine Wave
Battetry	Battery voltage: 12 V / 9 Ah x 2
	Backup time ( one PC load at 120 W ): 42 min.
	Typical recharge time: 4 – 6 hours recover to 90% capacity
Indicators	AC mode: The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level
	Battery mode: The right green LED flashing & the 2nd to 5th green gradually lighting indicating battery capacity
	Fault: Red flashing
Protection	Full protection: Overload, discharge, and overcharge protection
Alarm	Battery mode: Sounding every 10 seconds
	Low battery: Sounding every second
	Overload: Sounding every 0,5 seconds
	Battery replacement alarm: Sounding every 2 seconds
	Fault: Continuously sounding
Physical	Dimension, DXWXH (mm): 397 x 146 x 205
	Net weight (kg): 11.5
Operating environment	Humidity: 0-95 % RH @ 0- 40°C (non-condensing)
	Noise level: Less than 40dB
Management	USB port: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
Accessories	AC Input Power cable x1, IEC output cable x2, Application CD, USB cable x1, User guide

Additional information

Weight	12.5 kg

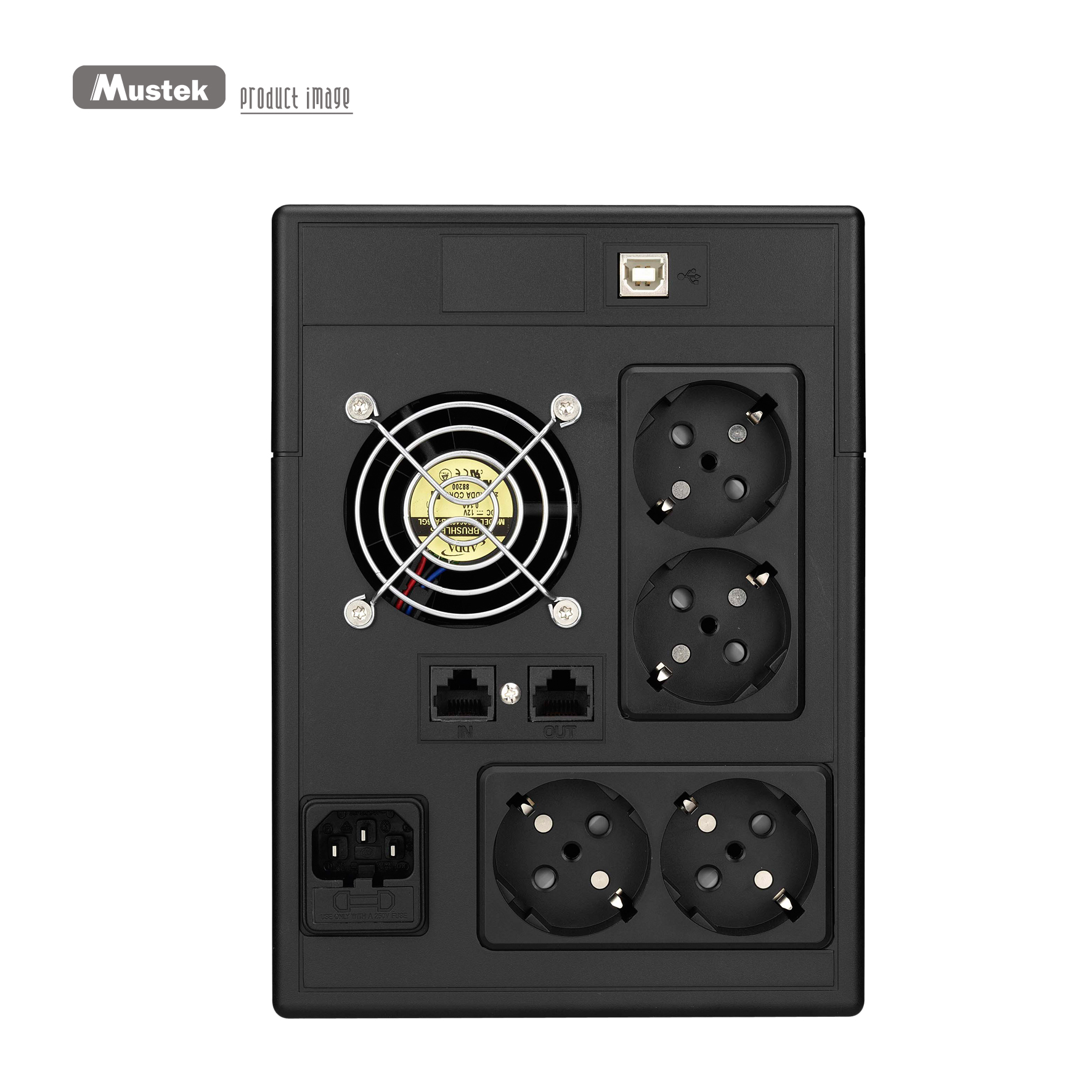

	15x15 product image 300dpi PowerMust 1590,2012 back.jpg	0.8mb	14-07-2017

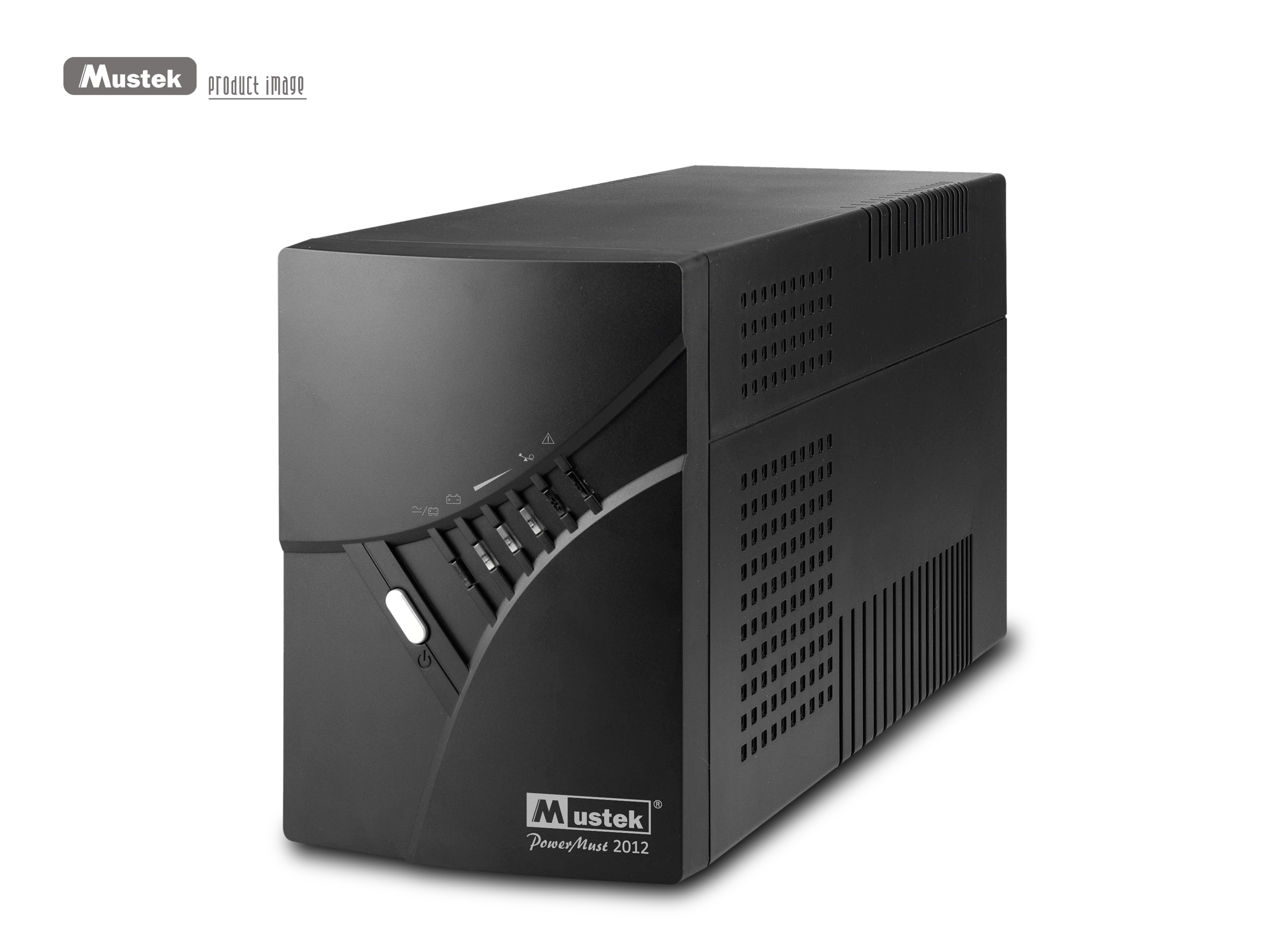

	20x15 product image 300dpi PowerMust 2012.jpg	0.9mb	14-07-2017
