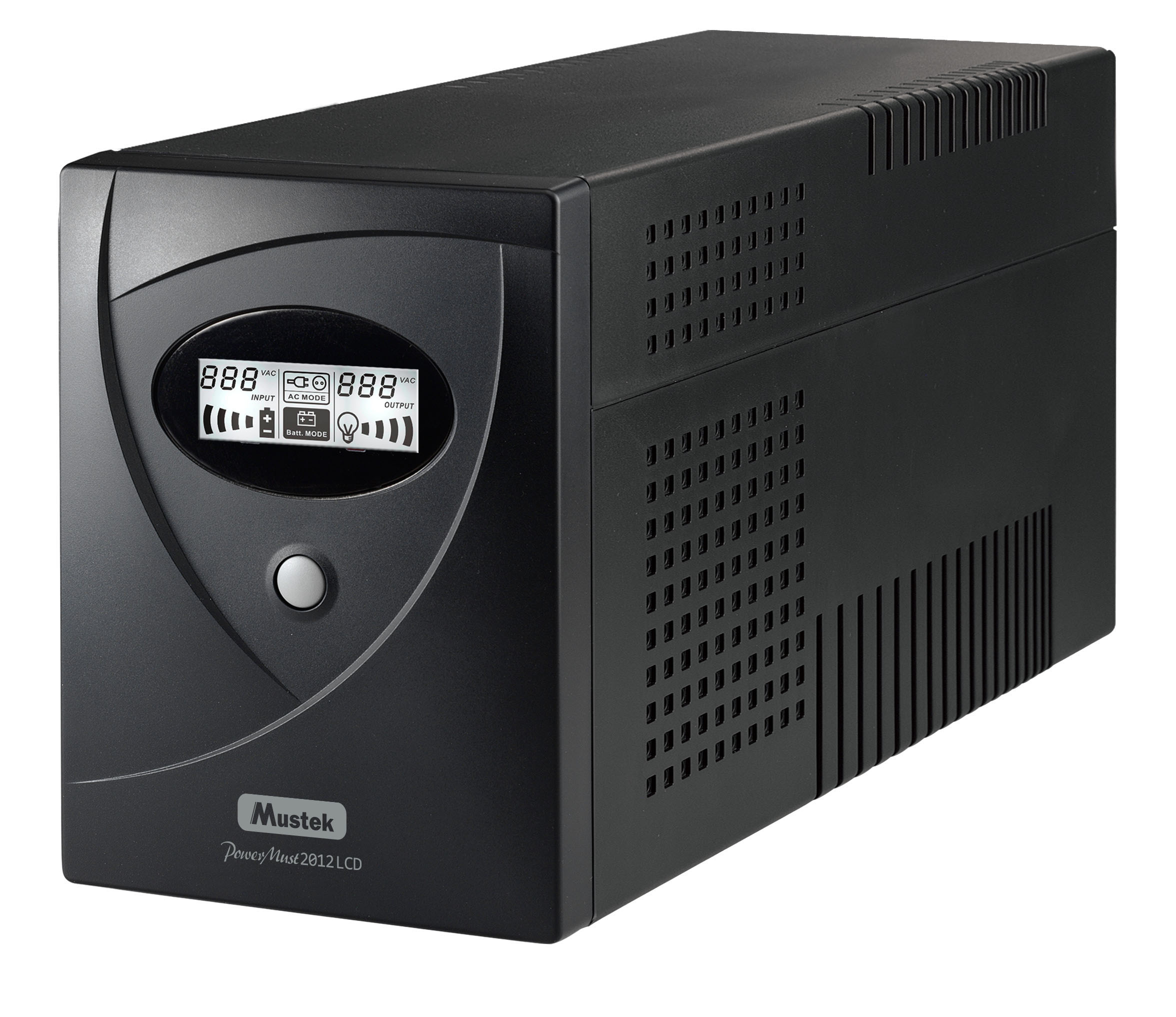

PowerMust 2012 LCD

MODEL	PowerMust 2012 LCD
INPUT
Capacity	2000VA/1200W
Nominal Voltage	220/230/240VAC
Voltage Range	162-290 VAC
OUTPUT
AC Voltage Regulation (Batt. Mode)	± 10%
Frequency Range (Batt. Mode)	50 Hz ± 1 Hz
Transfer Time	Typical 2-6 ms, 10 ms max.
Waveform (Batt. Mode)	Simulated Sine Wave
Protection	Short circuit and overload protection
BATTERY
Battery Type	12 V / 9 AH x 2
Typical Recharge Time	4-6 hours recover to 90% capacity
Protection	Discharge and Overcharging Protection
INDICATORS
LCD Display	AC Mode, Battery Mode, Load Level, Battery level, Input Voltage, Output Voltage, Overload, Fault and Low Battery
ALARM
Battery Mode	Sounding every 10seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement	Sounding every 2 seconds
Fault	Continuously sounding

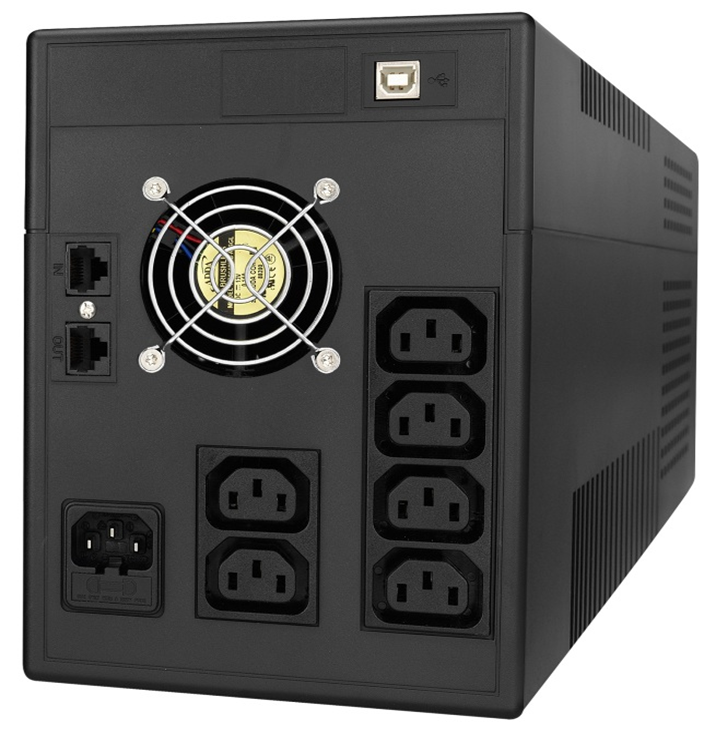

INTERFACE
Power cord connector	1x
IEC outlet	6
Phoneline/Network protection connector	RJ11/45 (1x in 1x out)
USB Port	USB Type B communication port
PHYSICAL
Dimension, D X W X H (mm)	397x146x205
Net Weight (kgs)	11.5
ENVIRONMENT
Operation Humidity	0-90% RH @ 0-40˚ C (non-condensing)
Noise Level	Less than 40 dB
MANAGEMENT
USB Port	Windows^®2000/2002/XP/Vista/2008/7/8, Linux, Unix, and MAC

Additional information

Weight	14.00 kg
