PowerMust 600 Plus Line Int., Schuko
Out of stock
PowerMust 600 Plus Line Int., Schuko
Features
- Built in super smart charger, 90% fully charged in 4 hours
- Boost and Buck AVR for voltage stabilization
- Built-in USB communication port
- RJ-45 protection
- Easy replacement battery compartment
- Discharge, overcharge and overload protection
- Visiual and audible Alarm system
- Simulated sinewave output
| Specification | ||
| MODEL | PowerMust 600 Plus Line Int. | |
| INPUT | ||
| Capacity | 625VA/375W | |
| Nominal Voltage | 220/230/240 VAC | |
| Voltage Range | 170-285 VAC | |
| Frequency Range | 50/60 Hz (auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | ± 10% | |
| Frequency Range (Batt. Mode) | 50 / 60 Hz ± 1 Hz | |
| Transfer Time | Typical 2-6 ms, 10 ms max. | |
| Line Mode Voltage | Same as input voltage | |
| Waveform (Batt. Mode) | Simulated Sinewave | |
| Protection | Discharge, Overcharging and Overload protection | |
| BATTERY | ||
| Battery Type | 12 V/ 7 AH x1 | |
| Recharge Time | 4 hours (recharge to 90% capacity) | |
| INDICATORS | ||
| Line Mode Normal | Green lighting | |
| Battery Normal | Yellow flashing | |
| Battery Low | – | |
| Fault | Red lighting | |
| AUDIBLE ALARM | ||
| Battery Mode | Sounding every 10 seconds | |
| Low Battery at battery mode | Sounding every second | |
| Fault | Continuously sounding | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 292 x 199 x 91 | |
| Net Weight (kgs) | 5,3 | |
| ENVIRONMENT | ||
| Operation Humidity | 0-90% RH @ 0-40˚ C (non-condensing) | |
| INTERFACE | ||
| Power Cord Connector | AC power cable | |
| Outlet | Schuko x 5 | |
| Phoneline/ Network protection R45 | Yes | |
| USB Port | Yes | |
Additional information
| Weight | 6.20 kg |
|---|

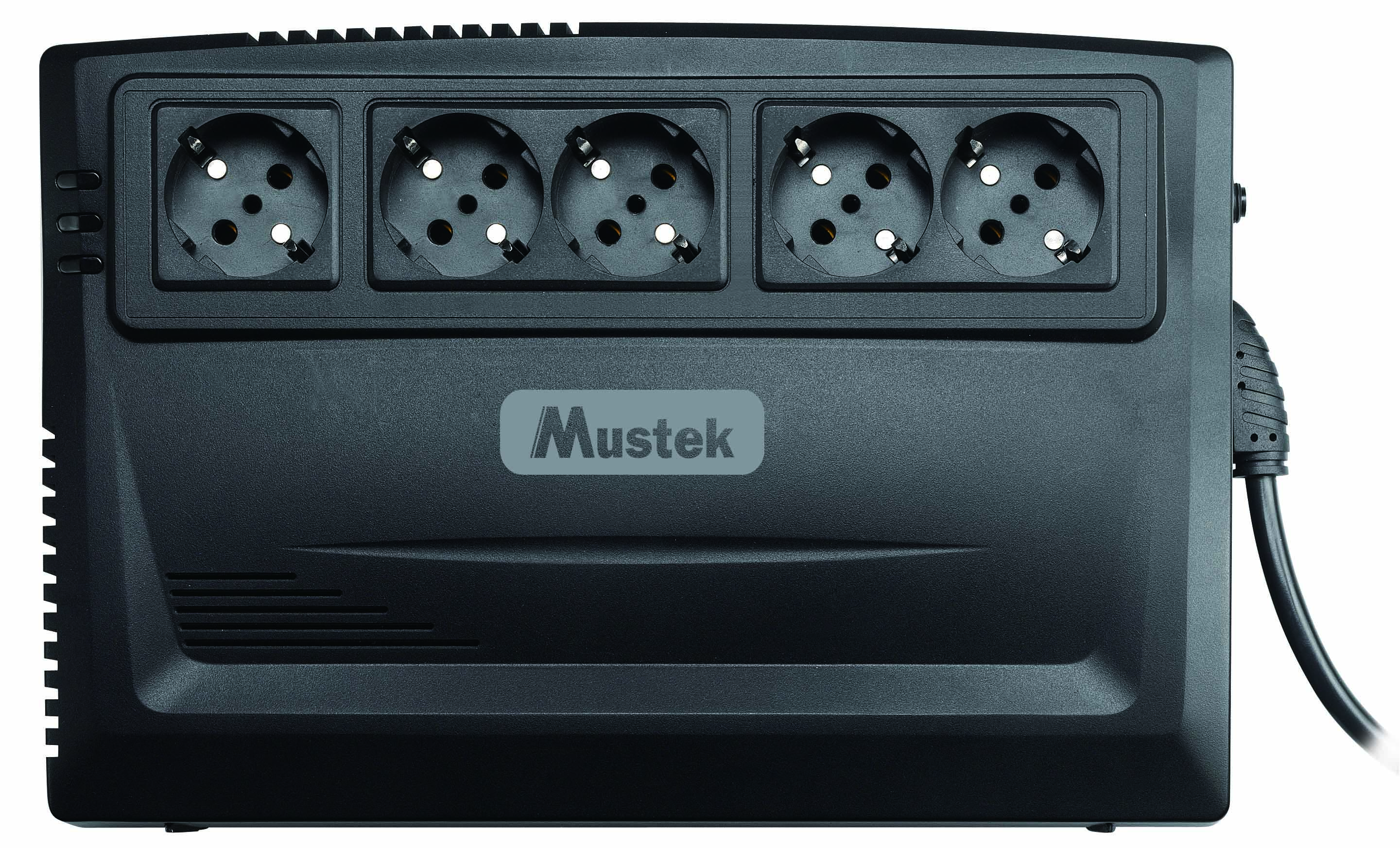

 | PM 600 Plus line int schuko top.jpg | 1.6mb | 20-09-2017 |

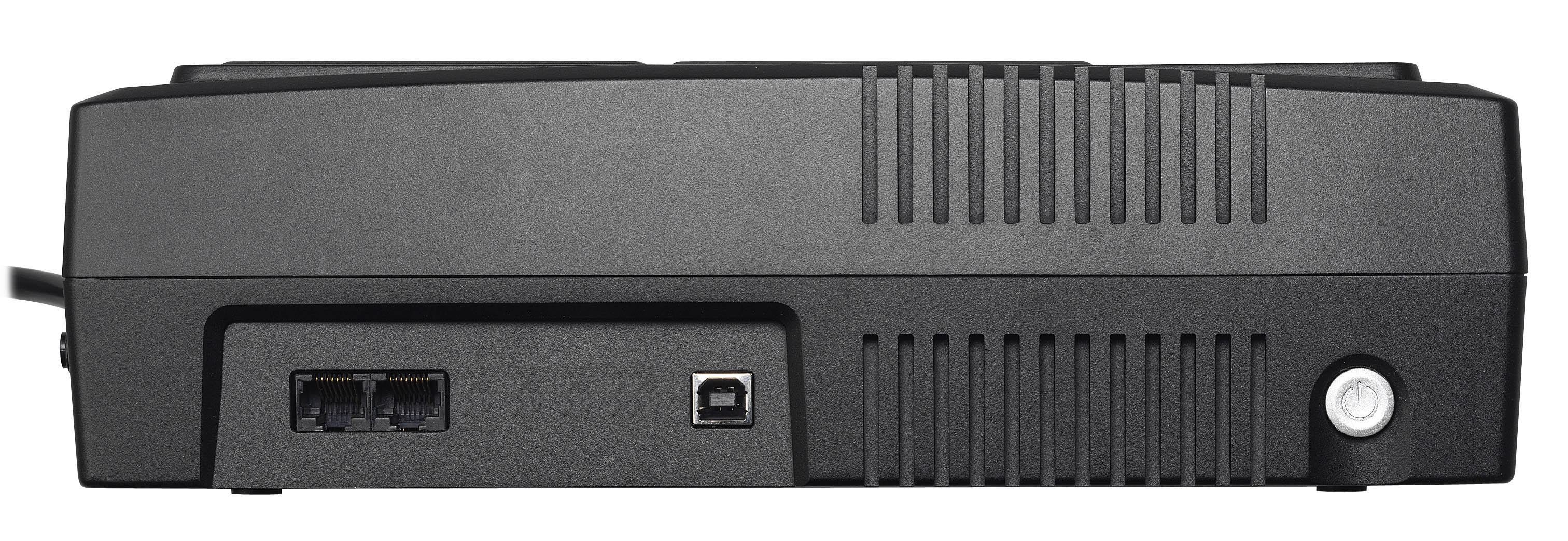

| PM 600 Plus line int schuko side.jpg | 0.7mb | 20-09-2017 |
| 600 plus line int schuko.pdf | 0.5mb | 20-09-2017 |
| PowerMust 600 Plus Line Int. Schuko.pdf | 1mb | 04-06-2018 |
