PowerMust 636
PowerMust 636
| Product type | Uninterrupted power supply; Line interactive |
| Capacity | 600 VA / 360 W |
| Product type | Uninterrupted power supply; Line interactive |
| Capacity | 600 VA / 360 W |
| Input | Voltage: 110/120 VAC or 220/230/240 VAC |
| Voltage range: 81-145 VAC / 162-290 VAC | |
| Frequency range: 60/50 Hz (auto sensing) | |
| Output | AC voltage regulation (Batt. mode): ± 10% |
| Optional DC voltage (USB) 5 V | |
| Frequency range (Batt. mode): 50Hz or 60Hz ± 1Hz | |
| Transfer time: Typical 2-6 ms, 10ms max. | |
| Waveform (Batt. mode) Simulated Sine Wave | |
| Protection: Short circuit and Overload Protection | |
| Battetry | Battery voltage: 12 V / 7 Ah x 1 |
| Backup time ( one-PC load at 99 W ): 19 min. | |
| Typical recharge time: 4 hours recover to 90% capacity | |
| Indicators | AC mode: Green lighting |
| Battery mode: Yellow flashing | |
| Fault: Red flashing | |
| Alarm | Battery mode: Sounding every 10 seconds |
| Low battery: Sounding every second | |
| Overload: Sounding every 0,5 seconds | |
| Battery replacement alarm: Sounding every 2 seconds | |
| Fault: Continuously sounding | |
| Physical | Dimension, DXWXH (mm): 330 x 100 x 140 |
| Net weight (kg): 6 | |
| Operating environment | Humidity: 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise level: Less than 40dB | |
| Management: | USB port: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC |
| Accessories | AC Input Power cable x1, IEC output cable x2, Application CD, USB cable x1, User guide |

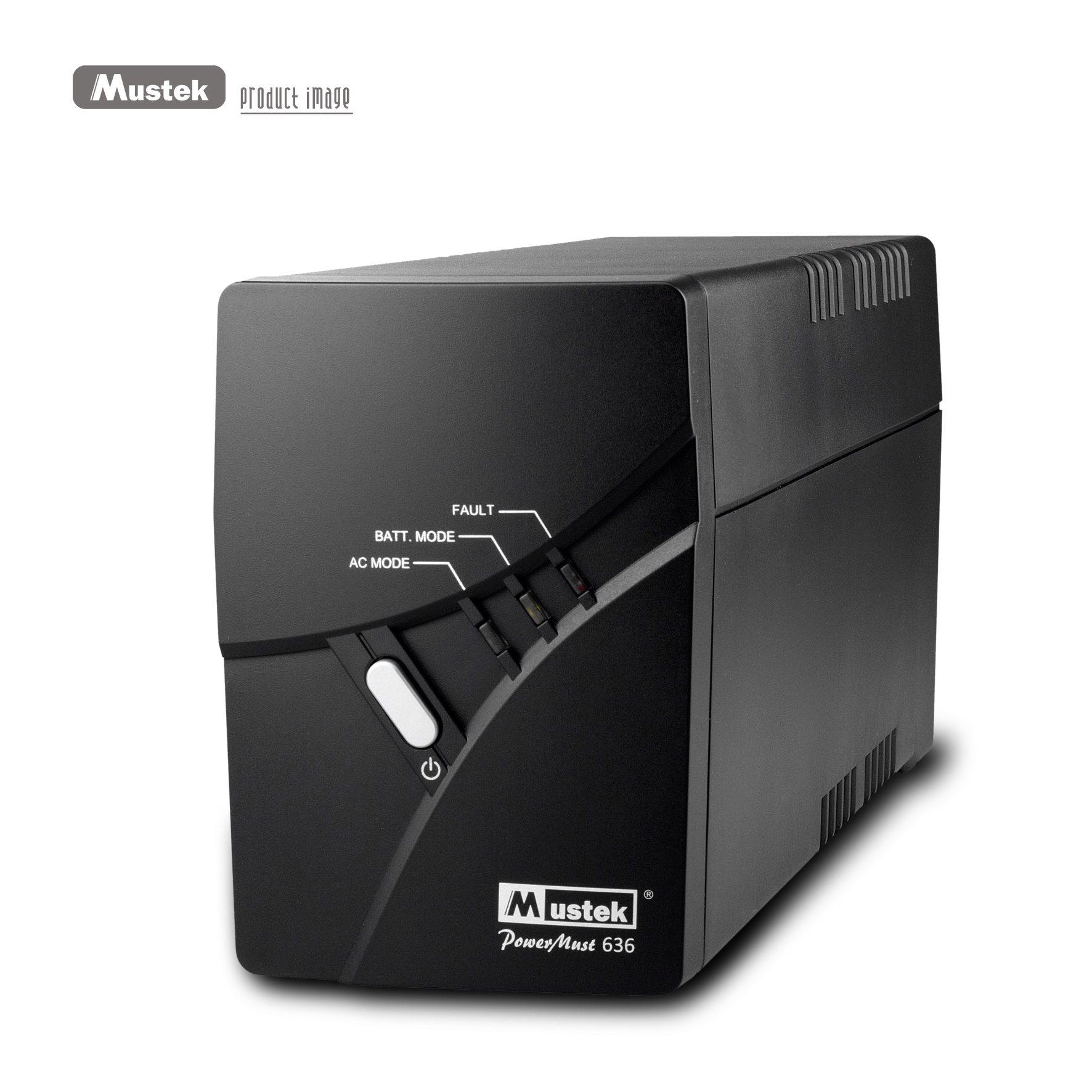

 | 15x15 product image 300dpi PowerMust 636.jpg | 0.9mb | 14-07-2017 |

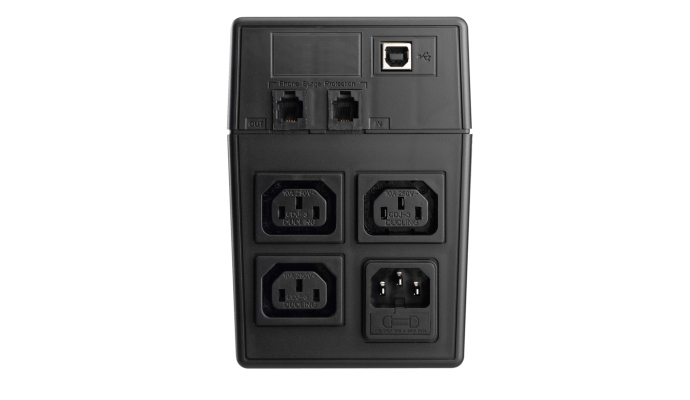

| 15x15 product image 300dpi PowerMust 424,636,848 Back.jpg | 0.9mb | 14-07-2017 |
