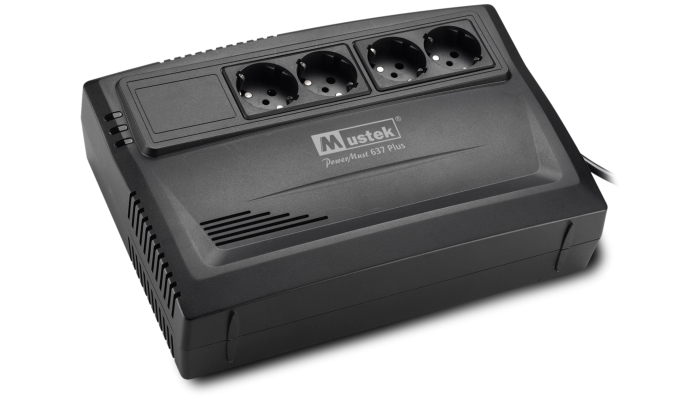

PowerMust 637 Plus

PowerMust 637 Plus

Product type Uninterrupted power supply; Line interactive
Capacity 625 VA / 375 W
Categories: ,
Product type Uninterrupted power supply; Line interactive
Capacity 625 VA / 375 W
Input Voltage: 110/120 VAC or 220/230/240 VAC
Voltage range: 85 – 145 VAC or 170-280 VAC
Frequency range: 50Hz or 60Hz (Auto sensing)
Output AC voltage regulation (Batt. mode): ± 10%
Frequency range (Batt. mode): 50Hz or 60Hz ± 1Hz
Transfer time: Typical 2-6 ms, 10ms max.
Waveform (Batt. mode) Simulated Sine Wave
Battetry Battery voltage: 12 V / 7 Ah x 1
Typical recharge time: 4 hours recover to 90% capacity
Protection Full protection: Overload, discharge, and overcharge protection
Indicators AC mode: Green lighting
Battery mode: Yellow flashing
Fault: Red flashing
Alarm Battery mode: Sounding every 10 seconds
Low battery: Sounding every second
Overload: Sounding every 0,5 seconds
Battery replacement alarm: Sounding every 2 seconds
Fault: Continuously sounding
Physical Dimension, DXWXH (mm): 292 x 199 x 91 ( foot included )
Net weight (kg): 5,30
Operating environment Humidity: 0-95 % RH @ 0- 40°C (non-condensing)
Noise level: Less than 40dB

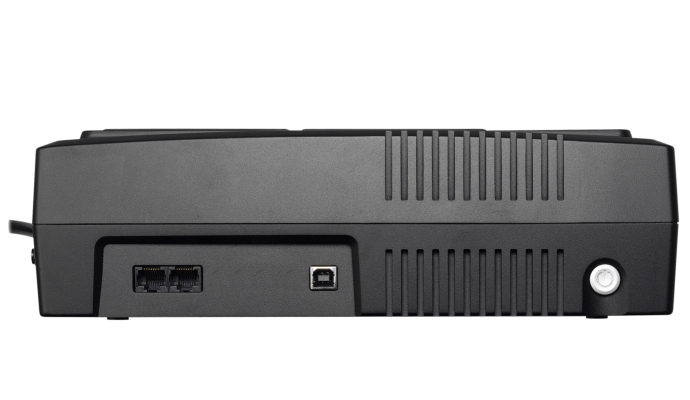

Management USB port: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
Accessories USB cable x1, Application CD, User guide

Additional information

Weight 6.20 kg

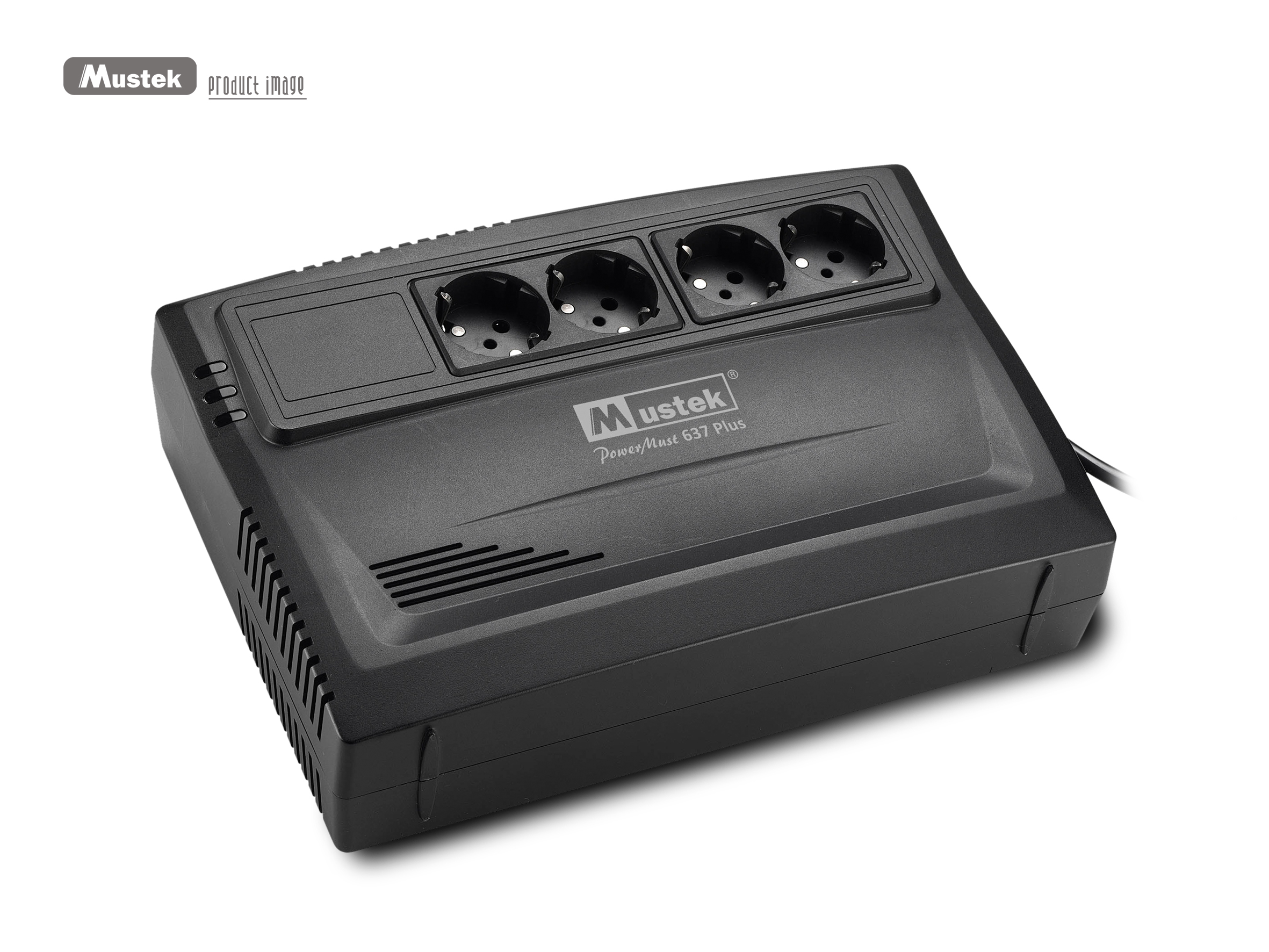

20x15 product image 300dpi PM 637 Plus.jpg1.2mb14-07-2017

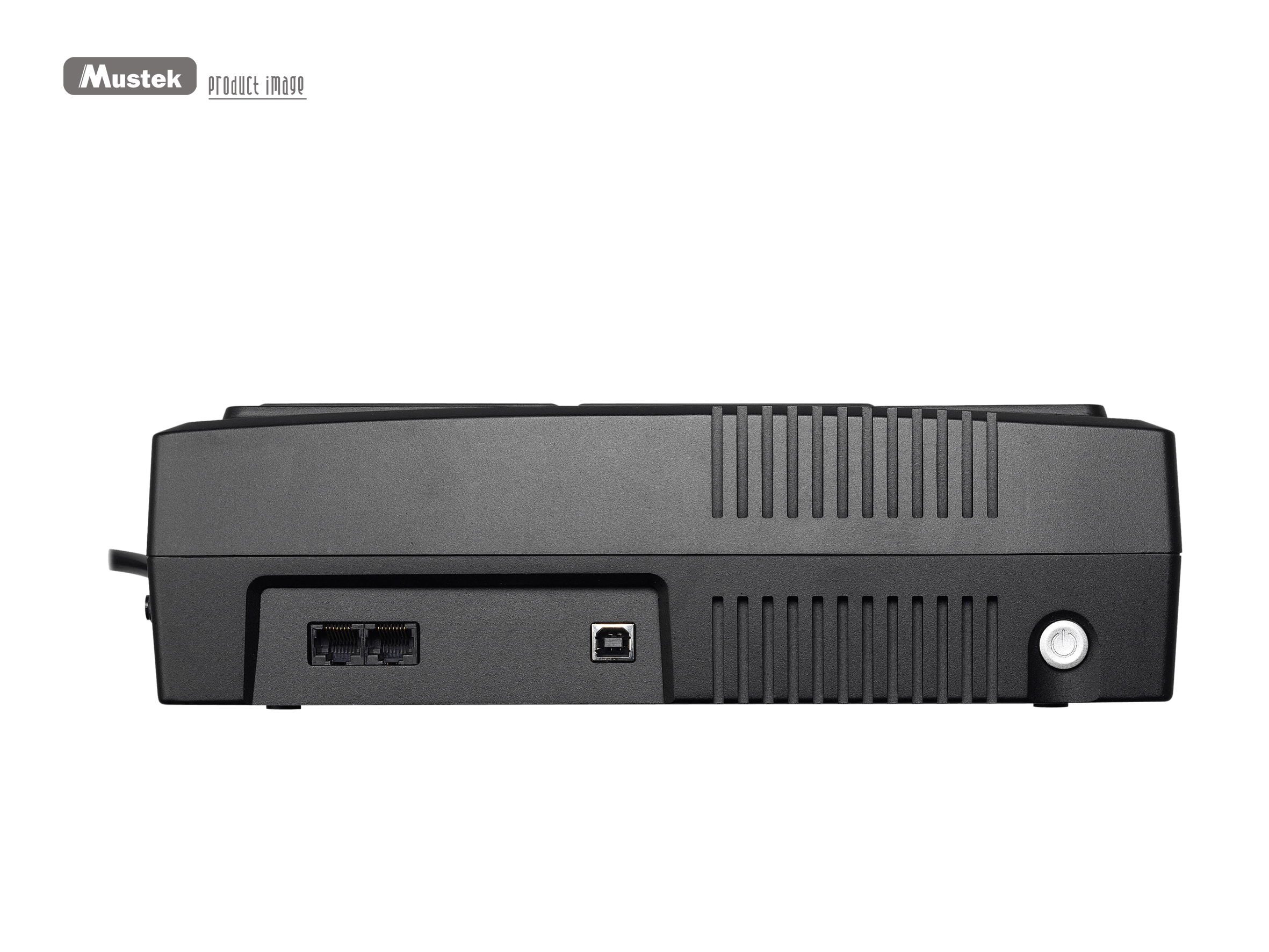

20x15 product image 300dpi PM 530,637,745 Plus back.jpg1.1mb14-07-2017
