Mustek PowerMust 1500 Sinewave LCD Line Int., Schuko
Out of stock
Mustek PowerMust 1500 Sinewave LCD Line Int., Schuko
Features
- Line Interactive UPS
- Pure Sinewave output
- LCD to display UPS information
- Compact size (39.7 x 14.6 x 20.5 cm)
- Microprocessor control guarantees high reliability
- Discharge, overcharge and overload protection
- Perfect power protection for mini servers & gaming PC’s
- USB and RJ11/RJ45 protection
- Visual and audible Alarm system
- Boost and Buck AVR for Voltage stabilization
| Specification | ||
| MODEL | PowerMust 1500 Sinewave LCD | |
| INPUT | ||
| Capacity | 1500VA/1050W | |
| Nominal Voltage | 220/230/240VAC | |
| Voltage Range | 162-290 VAC | |
| Frequency Range | 50/60 Hz ± 1 Hz (auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | ± 10% | |
| Frequency Range (Batt. Mode) | 50 / 60 Hz ± 1 Hz | |
| Transfer Time | Typical 2-6 ms, 10ms max. | |
| Waveform (Batt. Mode) | Pure Sinewave | |
| Protection | Overload, discharge and overcharge protection | |
| BATTERY | ||
| Battery Type | 12 V / 9 AH x 2 | |
| Recharge Time | 6 hours to 90% capacity | |
| Backup Time (at 100W load) | 20 min. | |
| AUDIBLE ALARM | ||
| Battery Mode | Sounding every 10 seconds | |
| Low Battery at battery mode | Sounding every second | |
| Fault | Continuously sounding | |
| Battery replacement | Sounding every 2 seconds | |
| Overload | Sounding every 0.5 second | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 397 x 146 x 205 | |
| Net Weight (kgs) | 12,2 | |
| ENVIRONMENT | ||
| Operation Humidity | 0-90% RH @ 0-40˚ C (non-condensing) | |
| Noise Level | Less than 40 dB | |
| INTERFACE | ||
| Power Cord Connector | Schuko input powercord | |
| Outlet | Schuko 2 x and 2 x IEC | |
| Phoneline/ Network protection | RJ45 + RS232 | |
| USB port | Yes | |
| LED/LCD | LCD | |
| MANAGEMENT | ||
| USB Port | Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC | |
Additional information
| Weight | 5.2 kg |
|---|

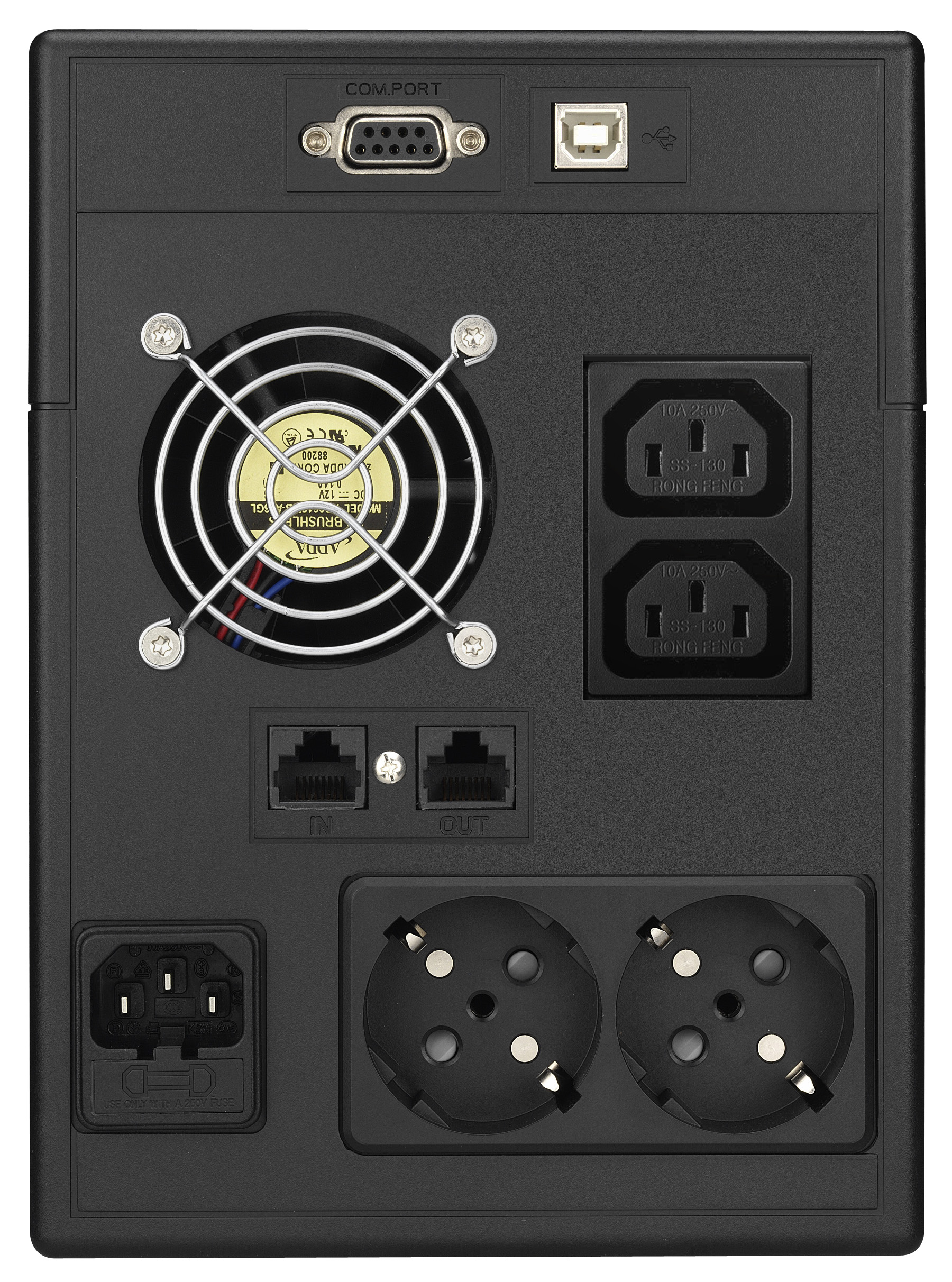

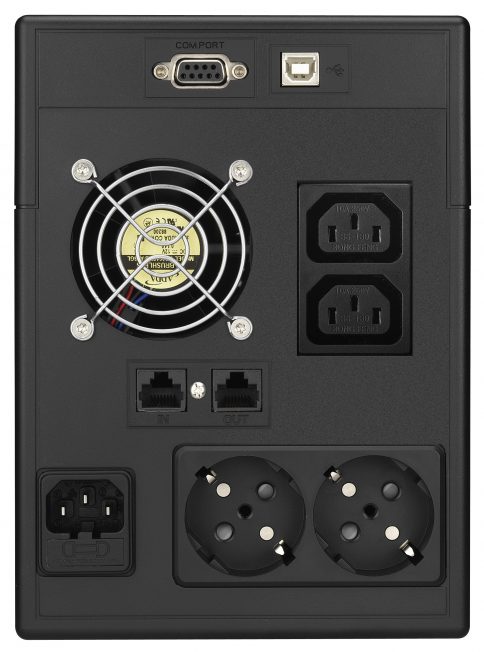

 | PM 1500 sinewave LCD Line int Schuko back.jpg | 1.2mb | 20-09-2017 |

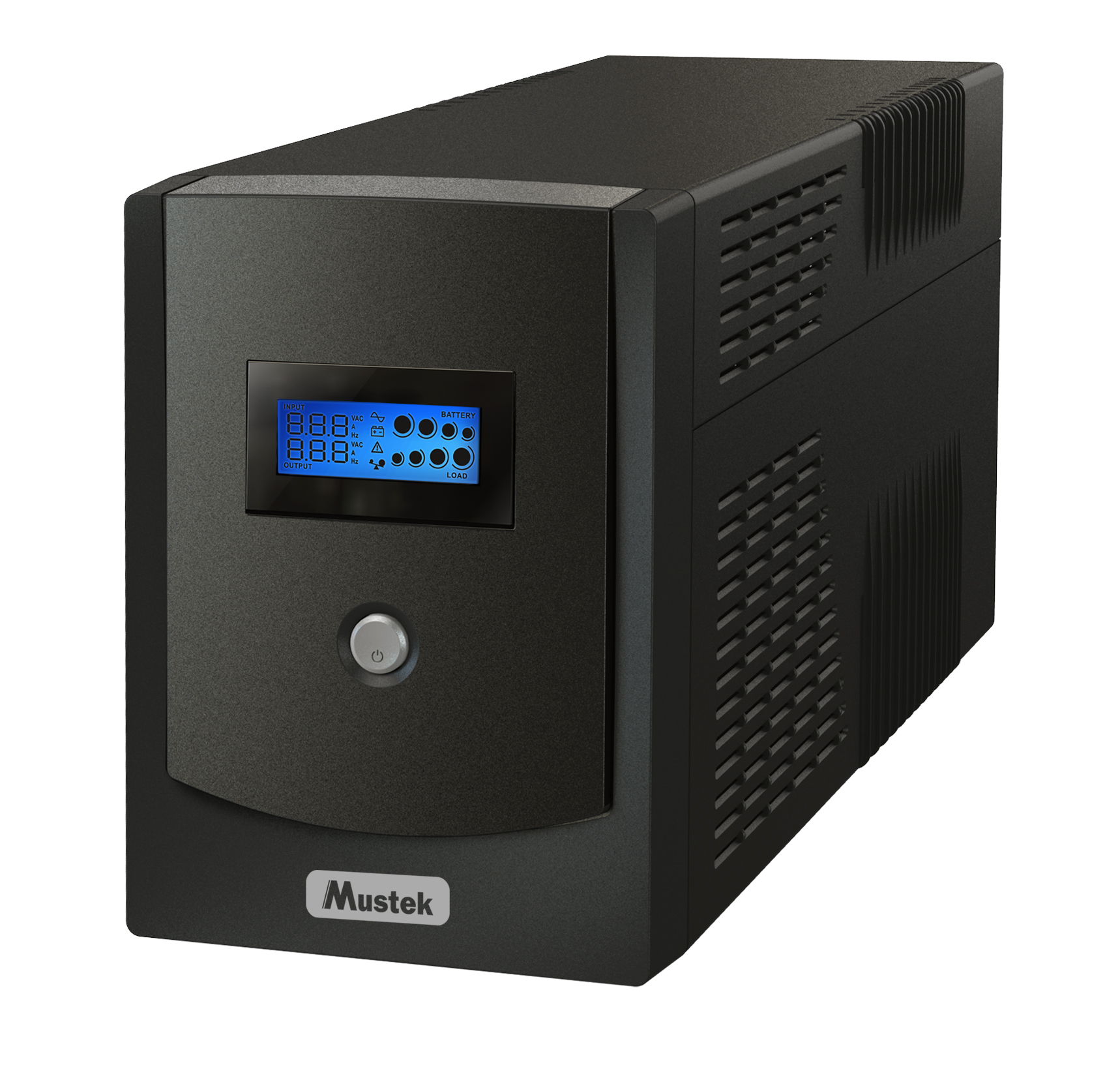

| PM 1500 sinewave LCD Line int schuko front.jpg | 1mb | 20-09-2017 |
| 1500 sinewave LCD line interactive schuko-IEC.pdf | 1mb | 20-11-2018 |
| PowerMust 800_1500 Sinewave LCD Line Int. Schuko.pdf | 1.9mb | 04-06-2018 |
