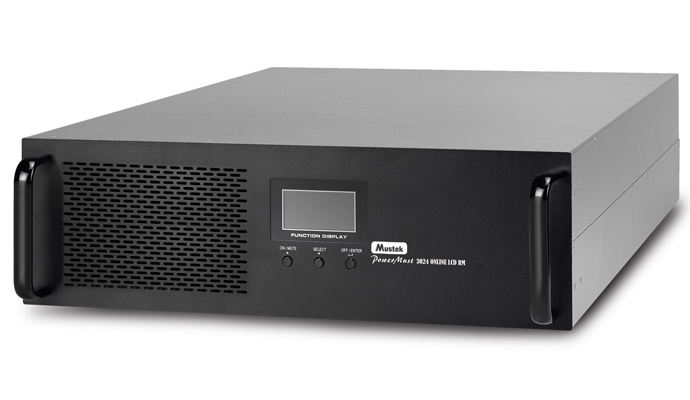

PowerMust 3024 (L) LCD RM

PowerMust 3024 (L) LCD RM

Product type Uninterrupted power supply; Online
Capacity 3000 VA / 2400 W
SKU: 98-UPS-VR030 Categories: ,
Product type Uninterrupted power supply; Online
Capacity 3000 VA / 2400 W
Input Voltage Range
Low line transfer:
“160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 % or
80 VAC / 70 VAC / 60 VAC / 50 VAC ± 5 %
(based on load percentage 100% – 80% / 80% – 70% / 70% – 60% / 60% -0) “
Voltage Range
Low line/Comeback:
175 VAC ± 5 % or 85 VAC ± 5 %
Voltage Range
High line transfer:
300 VAC ± 5 % or 150 VAC ± 5 %
Voltage Range
Low line/Comeback:
290 VAC ± 5 VAC or 143 VAC ± 3 VAC
Frequency range:
40 Hz ~ 70 Hz
Phase:
Single phase with ground
Power factor:
≧ 0.99 @ 220-230 VAC (input voltage)
Output AC voltage regulation (Batt. mode): ±1 %
Frequency range (Synchronized Range): 47 ~ 53 Hz or 57 Hz ~ 63 Hz
Frequency range (Batt. mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Current crest ratio: 3:1
Harmonic distortion:
≦ 4 % THD (Linear Load)
≦ 7 % THD(Non-linear Load)
Transfer time AC to DC: Zero
Transfer time Inverter to Bypass: 4 ms (Typical)
Waveform (Batt. mode): Pure Sine Wave
Efficiency To AC mode: 88%
To battery mode: 83%
Battetry Battery voltage: 12 V / 9 Ah x 6
Typical recharge time: 4 hours recover to 90% capacity
Charging current (max.): 1.0 A
Charging voltage: 82.1 VDC ± 1%
Long-run model Battery voltage: Depending on the capacity of external batteries
Long-run model Typical recharge time: /
Long-run model Charging current (max.): 8.0 A
Long-run model Charging voltage: 82.1 VDC ± 1%
Indicators LCD Panel:
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Alarm Battery mode:
Sounding every 4 seconds
Low battery:
Sounding every second
Overload:
Sounding twice every second
Fault:
Continuously sounding
Physical Standard model Dimension, DXWXH (mm): 580 X 438 X 133 [3U]
Standard model Net weight (kg): 31
Long-run model
Dimension, DXWXH (mm): 580 X 438 X 133 [3U]
Long-run model
Net weight (kg): 17
Operating environment Humidity: 20-90 % RH @ 0- 40°C (non-condensing)
Noise level: Less than 45dB @ 1 Meter
Management Smart RS-232/USB: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
Optional SNMP: Power management from SNMP manager and web browser
Accessories IEC outlet cable x 2, USB cable, User guide, Software CD, optional: SNMP card

Additional information

Weight 32 kg

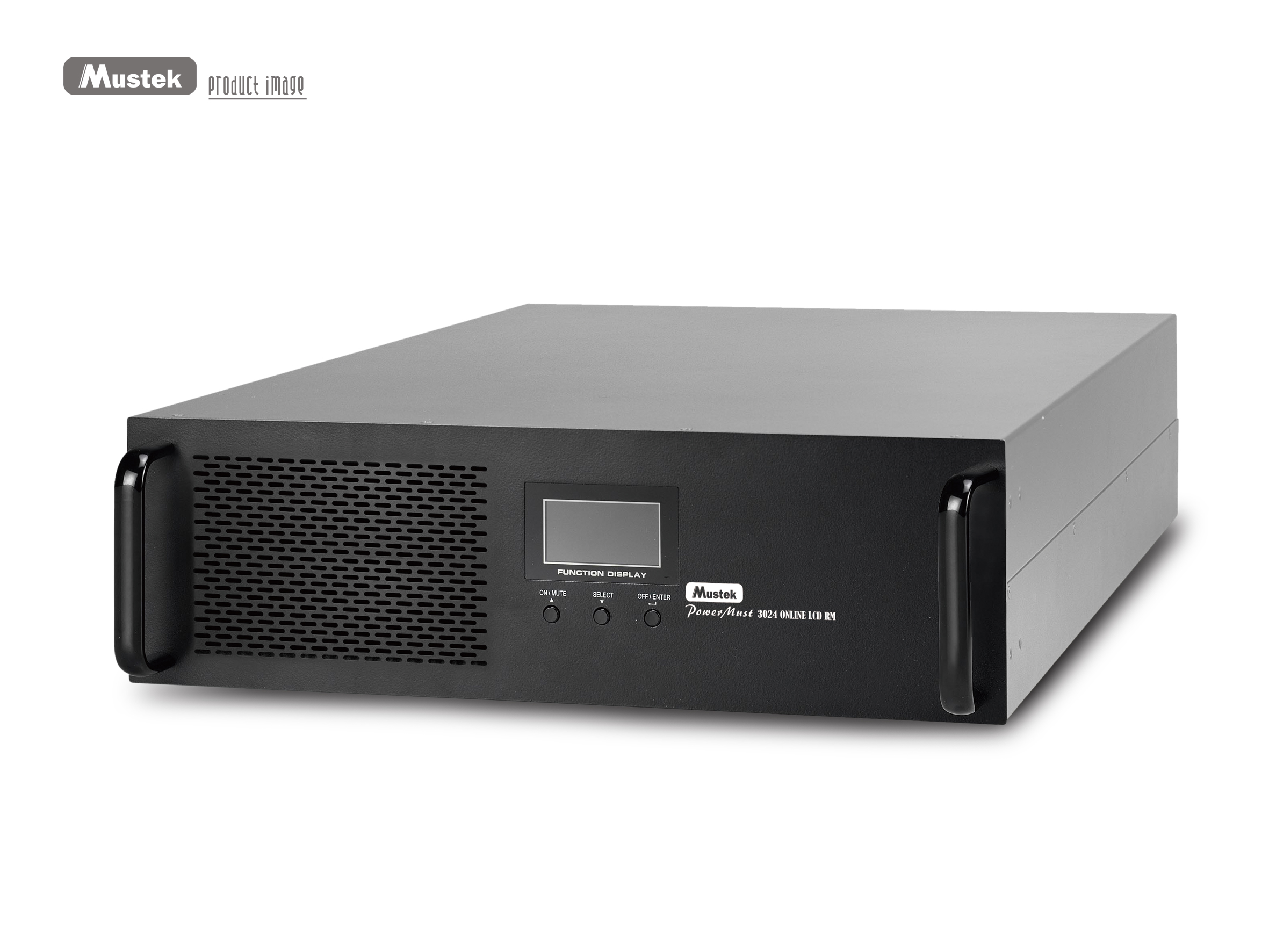

20x15 product image 300dpi PowerMust 3024 Online LCD RM.jpg0.9mb14-07-2017

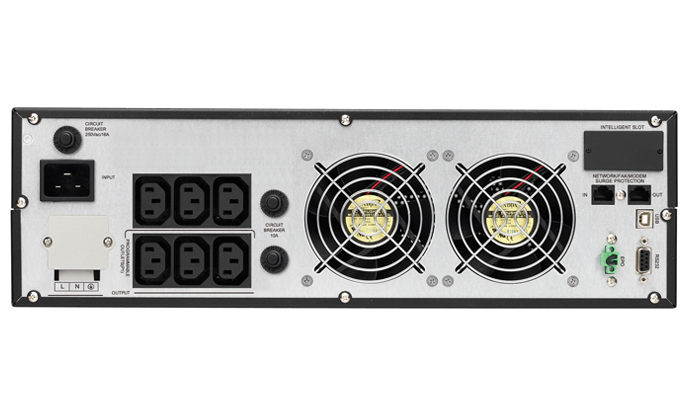

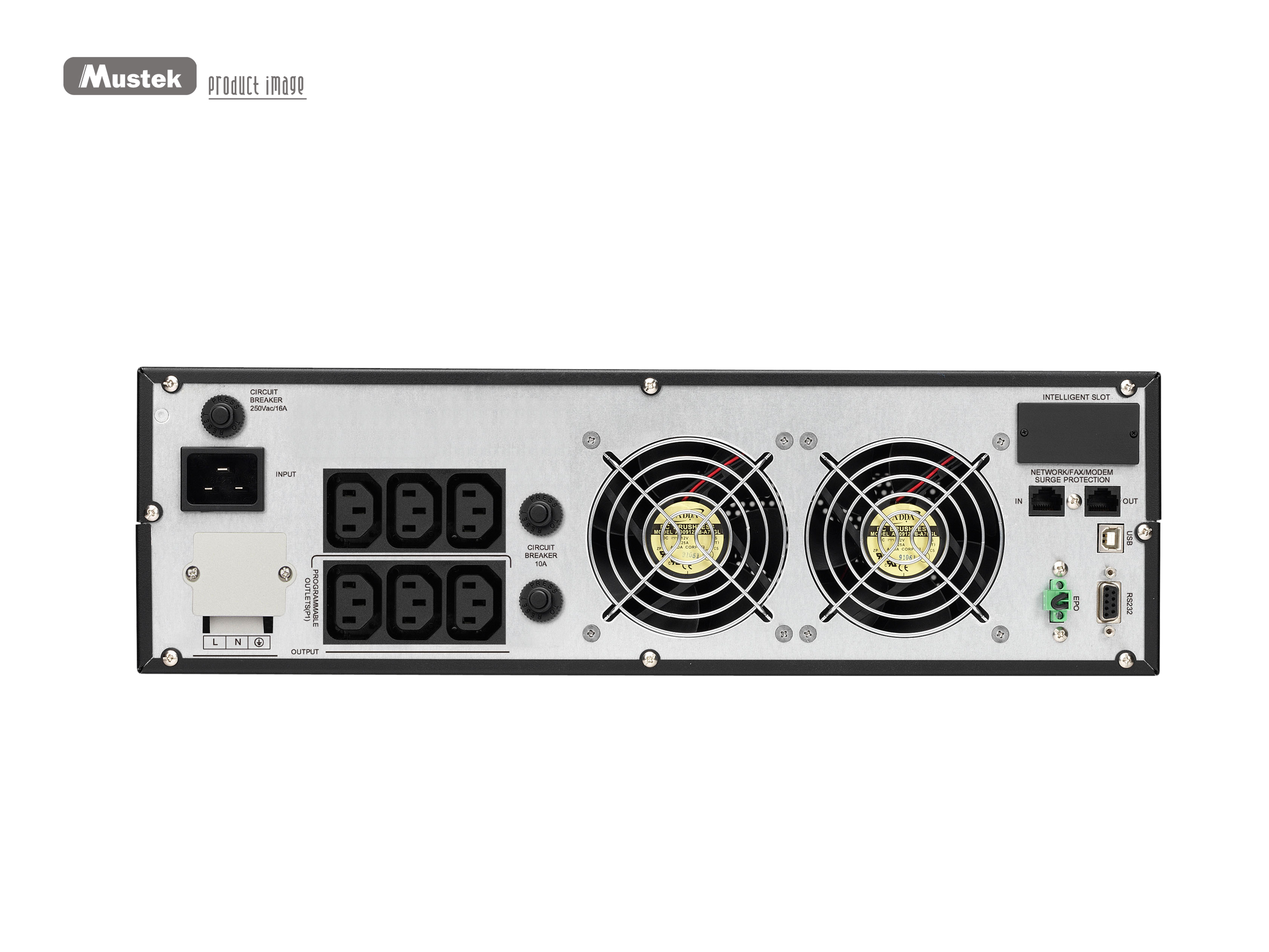

20x15 product image 300dpi PowerMust 3024 Online LCD RM rear.jpg1mb14-07-2017
Product info PM1008 2016 3024 (L) Online LCD RM -En.pdf0.9mb14-07-2017
PowerMust1008-3024 Online LCD RM -En.pdf2.7mb14-07-2017
