Mustek PowerMust 1000 RM Sinewave LCD Online IEC

Mustek PowerMust 1000 RM Sinewave LCD Online IEC

Features

  • Pure Sine Wave
  • True double-conversion online UPS
  • Wide input voltage range
  • Output Power factor 1
  • Emergency power off (EPO) function
  • SNMP + USB + RS 232 multiple communications
  • Selectable output voltage
  • Output voltage regulation < 1%
  • Programmable power management outlets
  • Output 50Hz/60Hz frequency converter mode
  • Higher output crest 3:1
  • ECO mode energy saving
  • Hot swappable battery design



SKU: 1000-LCD-ON-R20 Categories: , ,
MODEL PowerMust 1000 LCD, RM PowerMust 2000LCD,RM PowerMust 3000 LCD,RM
INPUT
Capacity 1000VA/1000W 2000VA/2000W 3000VA/3000W
Voltage Range  200/208/220/230/240 VAC
THDI ≤ 5% nominal input voltage
Frequency Range 40 ~ 70 Hz
Phase Single phase with ground
Power Factor ≥ 0.99 @ nominal voltage (100% load)
OUTPUT
Output voltage 200/208/220/230/240 VAC
AC Voltage Regulation ± 1%
Frequency Range (Synchronized Range) 57 ~ 63  or  47  ~ 53 Hz
Frequency range ( Batt. Mode) 50 or 60 Hz ± 0,1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≤2% THD (Linear Load); ≤4% THD (non-Linear Load)
Waveform (Batt. Mode) Pure Sinewave
BATTERY
Battery Type 12 V / 7 AH x 3 12 V / 7 AH x 6 12 V / 9 AH x 6
Recharge Time 3 hours recover to 95% capacity for internal battery @2 A charging current
Charging Current 200/208/220/230/240 VAC: default 2 A, max. 12 A adjustable Default 2A, Max 8A adjustable
BACK-UP TIME
Back up time with PF0,8 full load 11,0 min. 11,5 min. 9,6 min.
AUDIBLE ALARM
Battery Mode Sounding every 5 seconds
Battery Low Sounding every 2 second
Fault Continuesly sounding
Overload Sounding every second
TRANSFER TIME
BAT <–> LINE 0 ms 0 ms 0 ms
INV <–> BYPASS < 4 ms < 4 ms < 4 ms
INV –> ECO < 10 ms < 10 ms < 10 ms
PHYSICAL
Dimension, D X W X H (mm) 410 x 438 x 88 630 x 438 x 88
Net Weight (kgs) with internal battery  14,1 23,3 27,5
ENVIRONMENT
Operation Environment 0-40˚
Operation Humidity 20-95% (non-condensing)
Noise Level Less than 50 dB @1 Meter
INTERFACE
EPO Emergency Power Off
Intelligent slot External Type of SNMP / RS485 / AS 400 / USB card
AC Outlets IEC320 C13 x 8 IEC 320 C13 x 8 IEC320 C13 x8 + C19 x 1
USB port Yes
RS232 Yes
ACCESSORIES
Accessories User manual, 2P EPO connector x 1, Input power cord schuko, Output cable IEC x2, Pedestal for tower installation x 2, Fitting Ear x 2, USB cable x 1, Software CD
MANAGEMENT
Smart RS 232 or USB Port Supports Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC
Optional SNMP Power Management from SNMP manager and Web browser

Additional information

Weight 5.2 kg

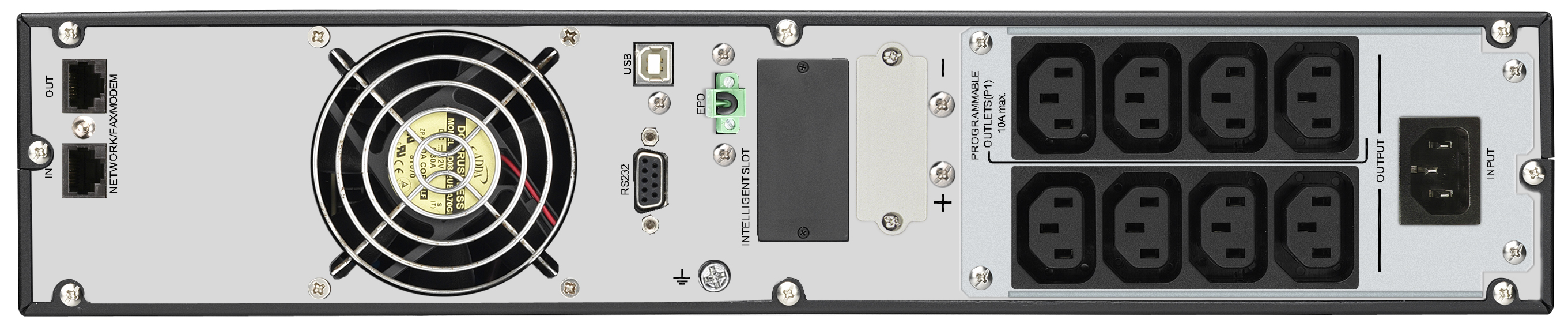

PM 1000 LCD RM Online IEC back.jpg0.8mb20-09-2017

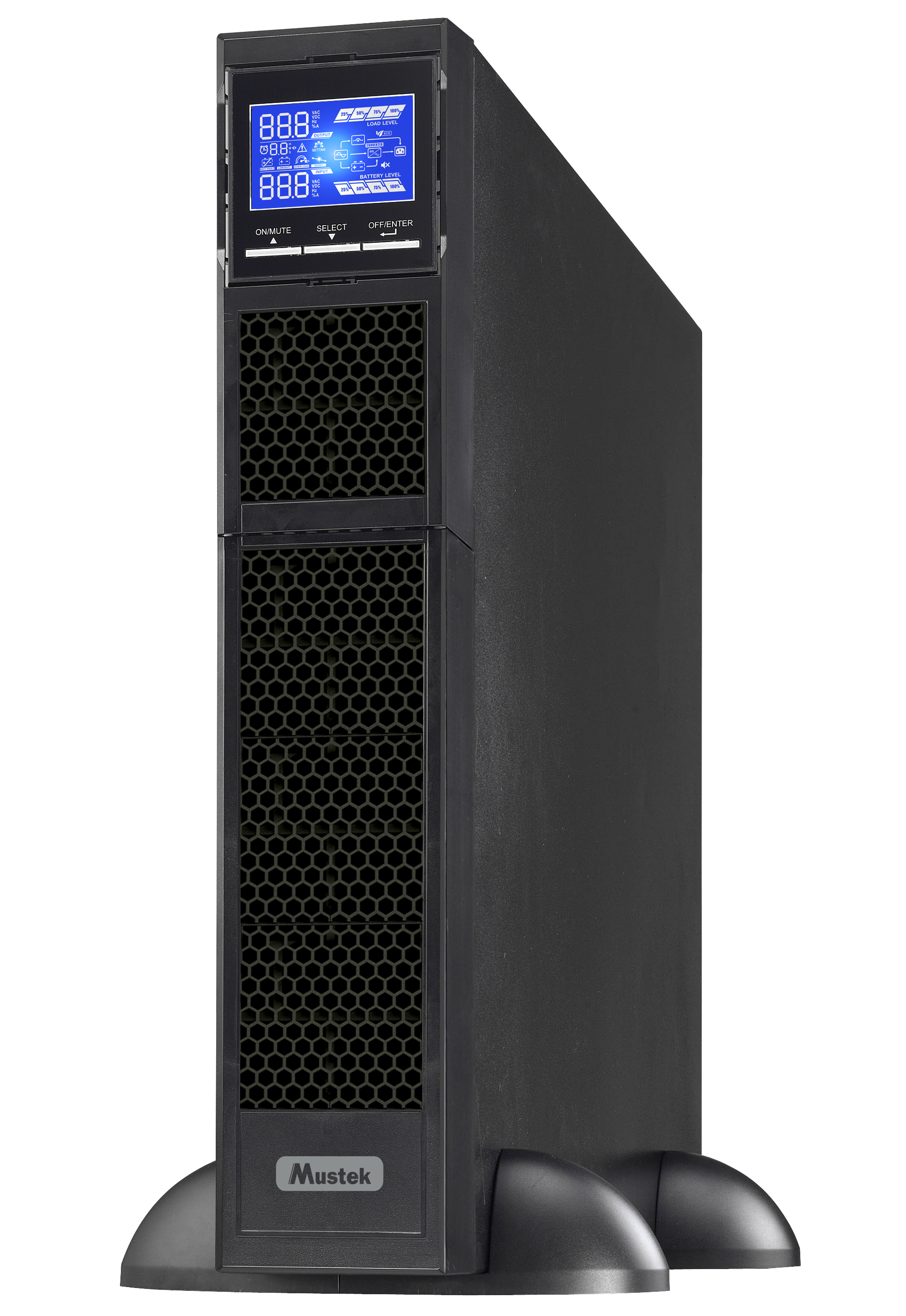

PM 1000-2000-3000 LCD RM Online IEC front.jpg1.6mb20-09-2017
