PowerMust 400 Offline
PowerMust 400 Offline
| Product type | Uninterrupted power supply; Offline |
| Capacity | 400VA/200W |
| Input | Phase: Single |
| Voltage: 110/120 VAC or 220/230/240 VAC | |
| Voltage range: 90~145 VAC / 170~270 VAC ±4VAC | |
| Frequency: 50 / 60Hz | |
| Frequency range: Min. 43HZ |
| Product type | Uninterrupted power supply; Offline |
| Capacity | 400VA/200W |
| Input | Phase: Single |
| Voltage: 110/120 VAC or 220/230/240 VAC | |
| Voltage range: 90~145 VAC / 170~270 VAC ±4VAC | |
| Frequency: 50 / 60Hz | |
| Frequency range: Min. 43HZ | |
| Output | Phase: Single |
| Voltage: 120 VAC or 220 VAC | |
| Voltage regulation ( Batt. mode ): ± 10% | |
| Frequency: 50 Hz or 60Hz | |
| Frequency redulation ( Batt. mode ): ±1Hz | |
| Output waveform ( Batt. mode ): Modified sinewave | |
| Power factor | 0.5 |
| Battetry | Battery type & number: 12V/4,5Ah *1 pc |
| Back up time ( at a PC load with 15″ monitor ): 6~9 minutes |
|
| Back up time ( at a PC load with 17″ monitor ): N/A |
|
| Recharge time: 10 hours to 90% after complete discharge | |
| Transfer time | Typical: 2-6ms, 12ms Max |
| Indicator | AC mode: Green lighting |
| Battery mode: Green LED flashing every 4 seconds | |
| Low battery at battery mode: Green LED flashing every second | |
| Fault: Red LED lighting | |
| Battery weak at AC mode: Red LED flashing every 2 seconds for 30 seconds | |
| Battery fault at AC mode: Red LED flashing 3 times every 2 seconds | |
| Overload: N/A | |
| Audible alarm | Battery mode: Sounding every 4 seconds |
| Low battery at battery mode: Sounding every second | |
| Fault: Continuously Sounding | |
| Battery weak at AC mode: Sounding every 2 seconds for 30 seconds | |
| Battery fault at AC mode: Sounding 3 times every 2 seconds | |
| Battery replacement: N/A | |
| Overload: N/A | |
| Protection | Full protection: Discharge, overcharge, and overload protection |
| Physical | Dimension, D*W*H (mm): 176.5*80*230 |
| Net weight (kg): 2.5 | |
| Environment | Operating Environment: 0- 40°C, 0-90 % relative humidity (non-condensing) |
| Noise Level: Less than 40dB | |
| Interface | Smart RS-232: N/A |
| USB Port: N/A | |
| Accessories | IEC output cable x1, User guide |

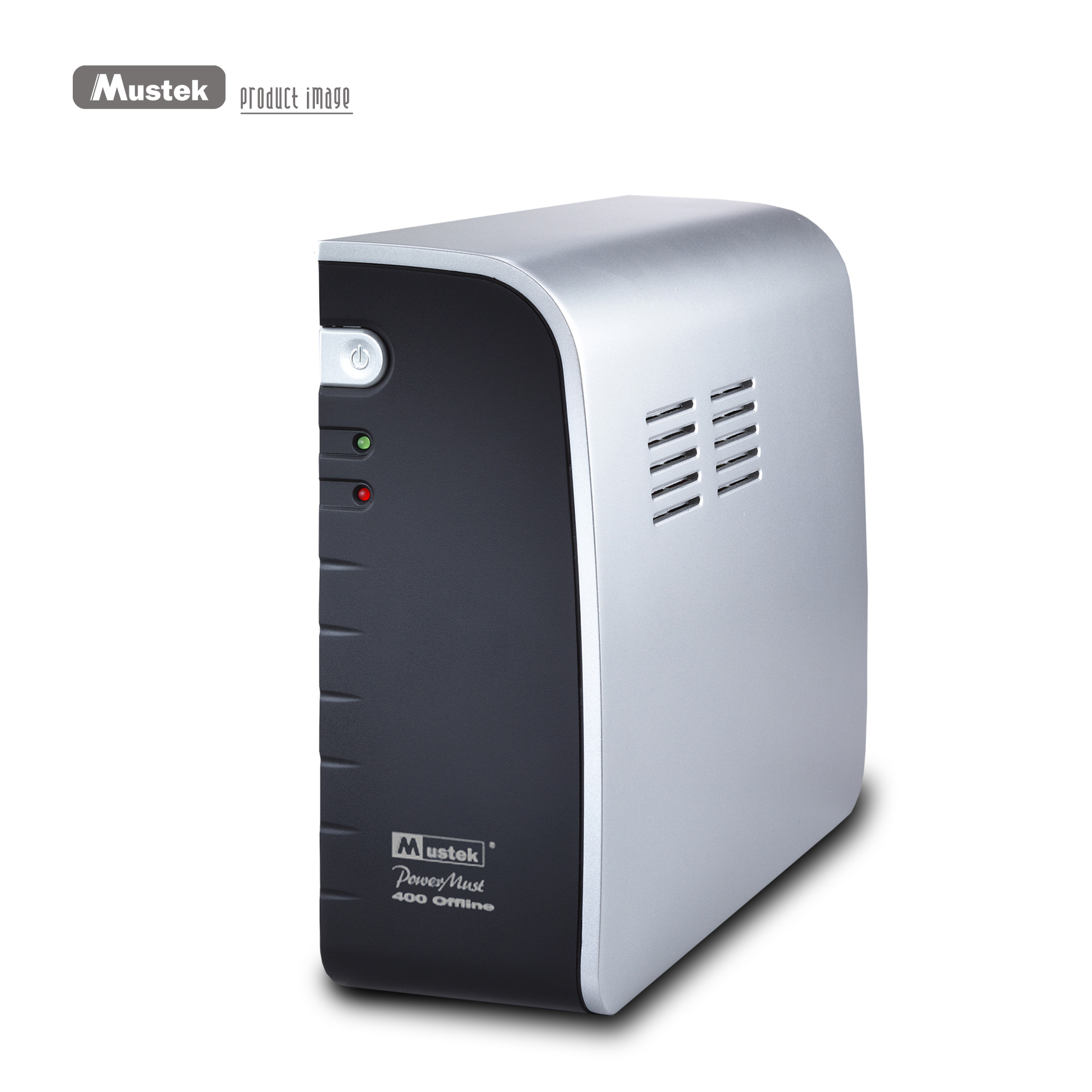

 | 15x15 product image 300dpi PowerMust400 Offline-tower.jpg | 0.9mb | 14-07-2017 |

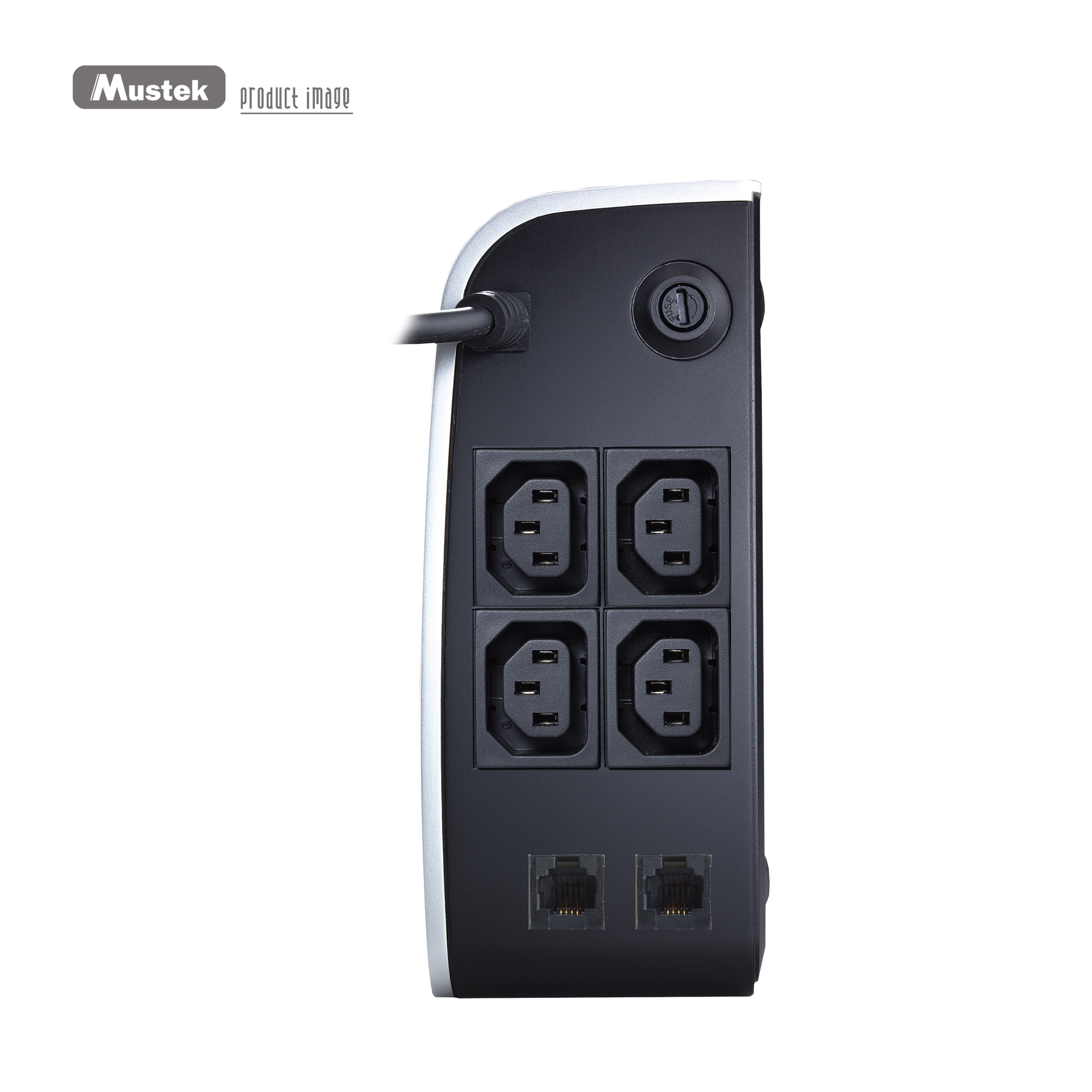

| 15x15 product image 300dpi PowerMust1000 Offline-back.jpg | 0.8mb | 14-07-2017 |
| 15x15 product image 300dpi PowerMust600 Offline-rack.jpg | 0.8mb | 14-07-2017 |

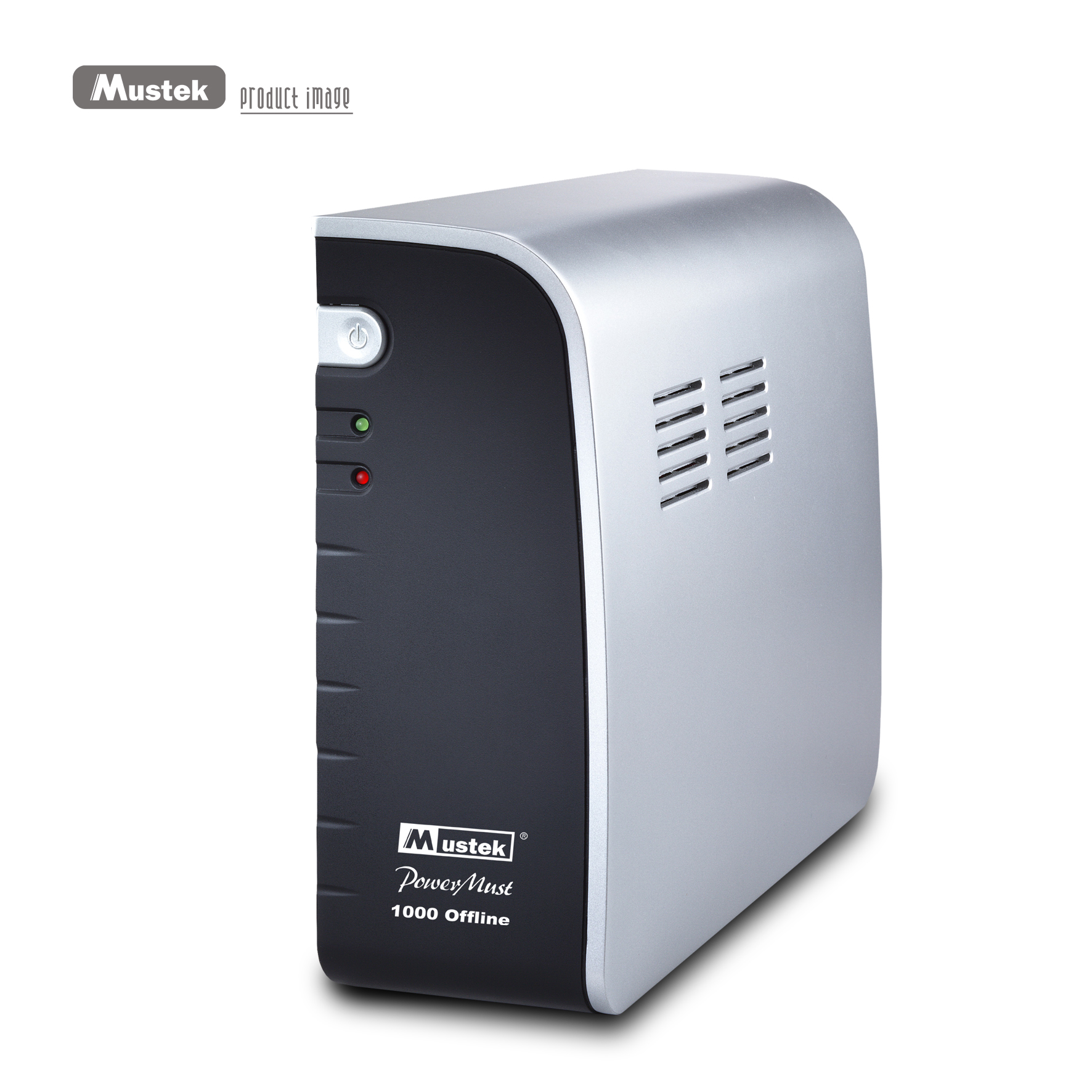

| 15x15 product image 300dpi PowerMust 1000 Offline-tower.jpg | 1mb | 14-07-2017 |

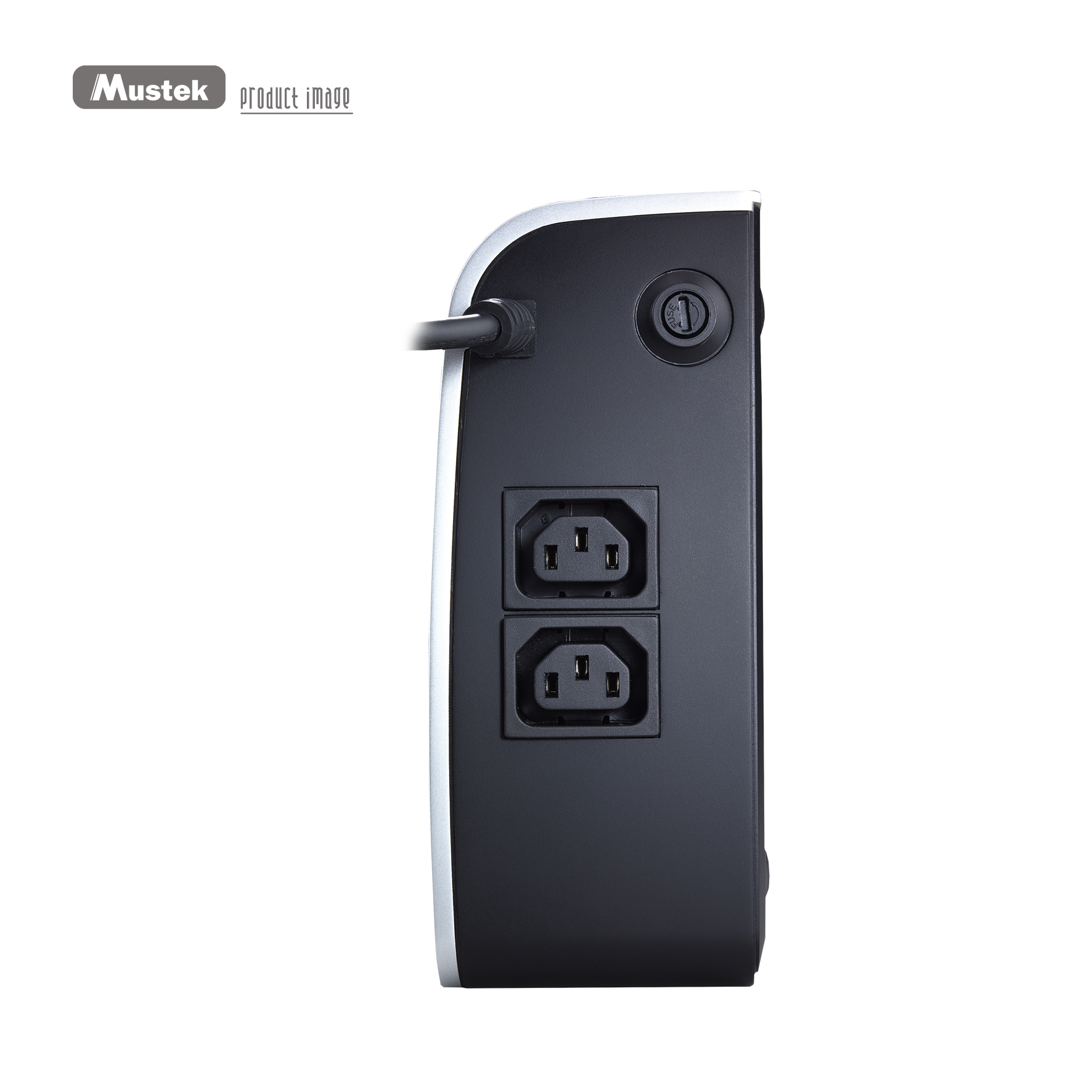

| 15x15 product image 300dpi PowerMust600 Offline-back.jpg | 0.7mb | 14-07-2017 |

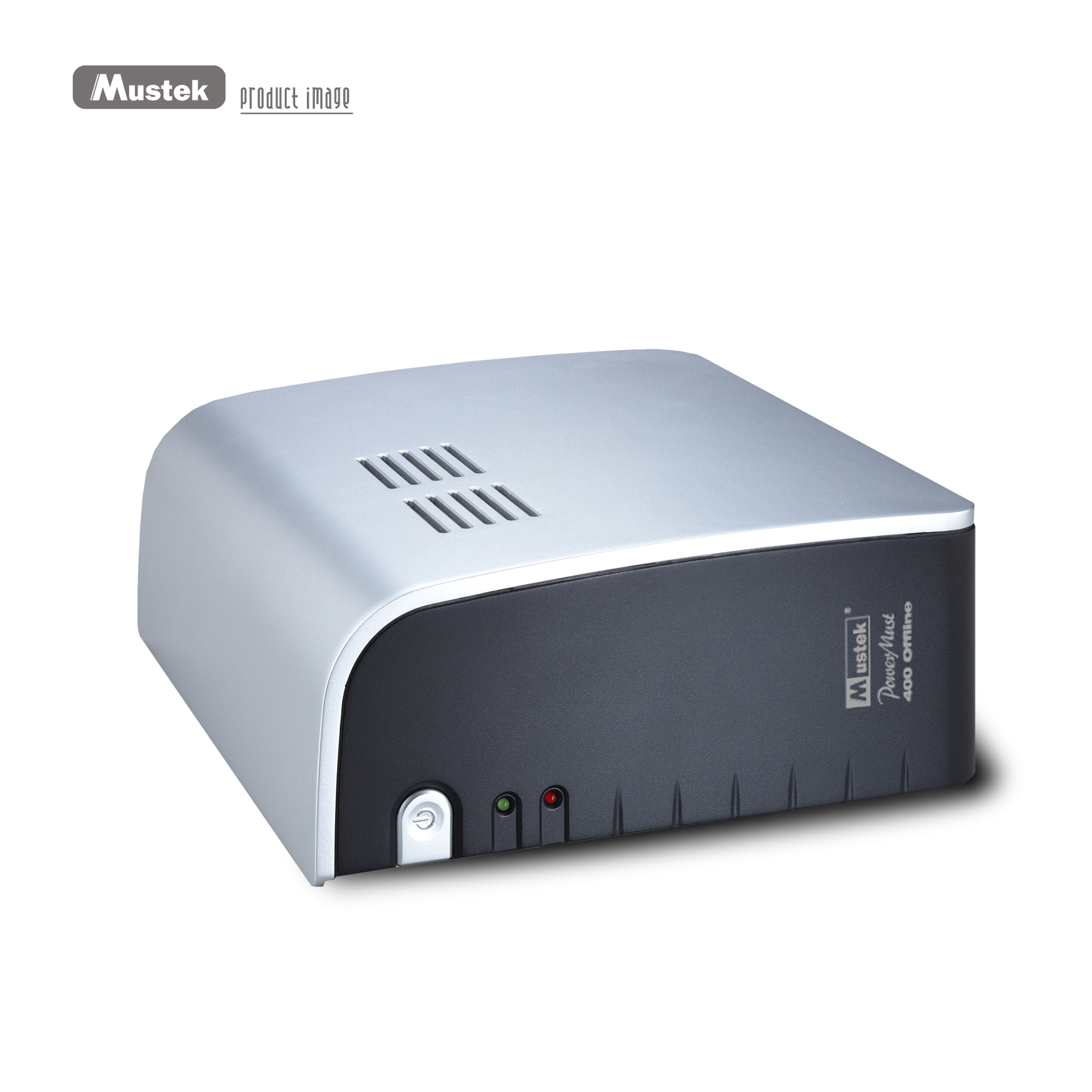

| 15x15 product image 300dpi PowerMust400 Offline-rack.jpg | 0.8mb | 14-07-2017 |
