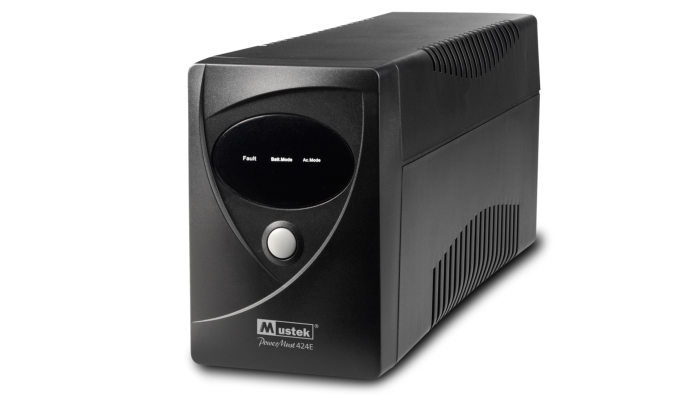

PowerMust 424E

Product type	Uninterrupted power supply; Line interactive
Capacity	450 VA / 240 W
Input	Voltage: 110/120 VAC or 220/230/240 VAC
	Voltage range: 81-145 VAC / 162-290 VAC
	Frequency range: 60/50 Hz (auto sensing)
Output	AC voltage regulation (Batt. mode): ± 10%
	Frequency range (Batt. mode): 50Hz or 60Hz ± 1Hz
	Transfer time: Typical 2-6 ms, 10ms max.
	Waveform (Batt. mode) Simulated Sine Wave
Battetry	Battery voltage: 12 V/4,5 Ah x 1
	Backup time ( one-PC load at 120 W ): 5 min.
	Typical recharge time: 4-6 hours recover to 90% capacity
Indicators	AC mode: Green lighting
	Battery mode: Yellow flashing
	Fault: Red flashing
Protection	Full protection: Overload, discharge, and overcharge protection
Alarm	Battery mode: Sounding every 10 seconds
	Low battery: Sounding every second
	Overload: Sounding every 0,5 seconds
	Battery replacement alarm: Sounding every 2 seconds
	Fault: Continuously sounding
Physical	Dimension, DXWXH (mm): 287 x 100 x 142
	Net weight (kg): 3,55
Operating environment	Humidity: 0-95 % RH @ 0- 40°C (non-condensing)
	Noise level: Less than 40dB
Accessories	User guide

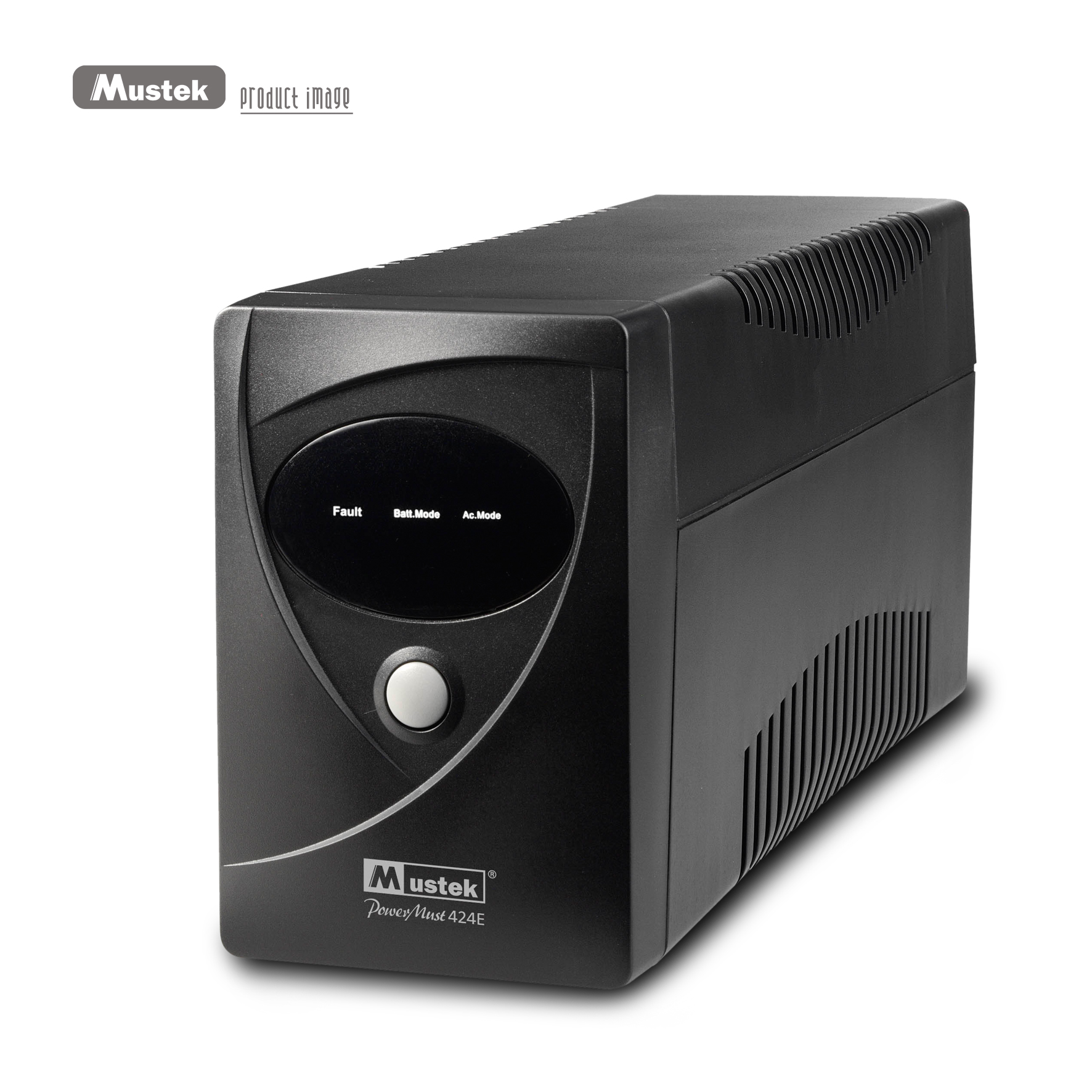

	15x15 product image 300dpi PowerMust 424E.jpg	0.9mb	14-07-2017

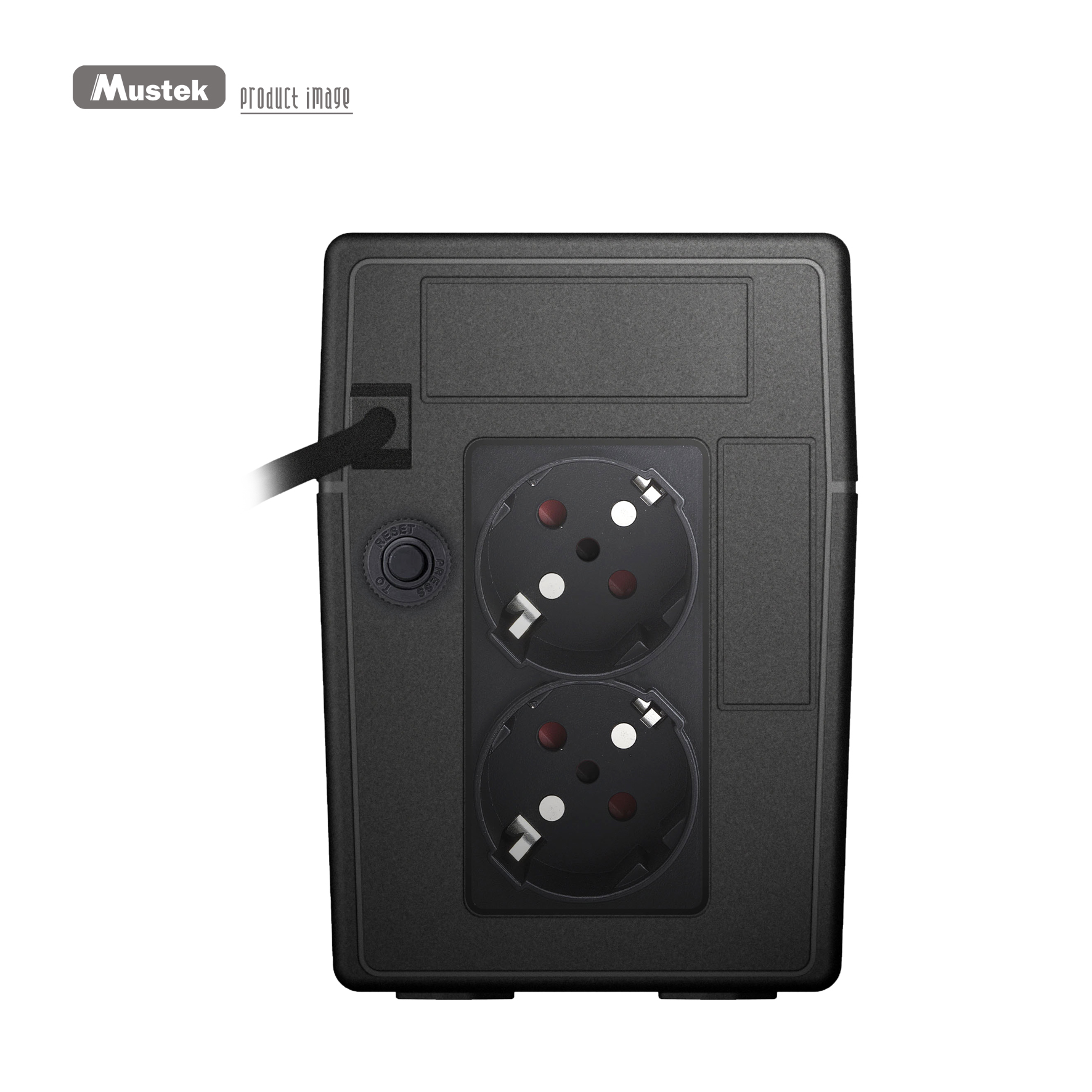

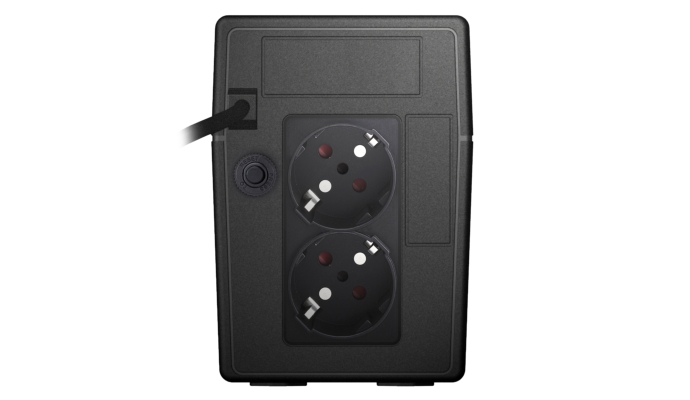

	15x15 product image 300dpi PowerMust 424,636,848E Back.jpg	0.8mb	14-07-2017

	PowerMust 424E, 636E, 848E-Part2.pdf	0.6mb	14-07-2017
	PowerMust 424E, 636E, 848E-Part1.pdf	0.5mb	14-07-2017
