– Capacity 600 VA / 360W
– Input Voltage 120 VAC or 220/230/240VAC
– Voltage range 81~145VAC / 162~290 VAC 5%
– Frequency range45~55Hz / 55~65Hz
– Output AC Voltage regulation (Batt. mode)10%
-Capacity 600 VA / 360W
-Input Voltage 120 VAC or 220/230/240VAC
-Voltage range 81~145VAC / 162~290 VAC 5%
-Frequency range45~55Hz / 55~65Hz
-Output AC Voltage regulation (Batt. mode)10%
-Frequency (Batt. mode) 50Hz/60Hz
-Output waveform (Batt.mode)Modified sinewave
-Transfer timeTypical 4-8ms
-Protection Discharge, overcharge and overload protection
-Battery type & amp; number 12V/7Ah x 1
-Recharge time 6 hours to 90% after complete discharge
-Backup time (half loading) 7 minutes Back up time (full loading) 1 minute
-Indicator
AC mode Green LED lighting
Battery mode Green LED flashing every 10 seconds
Low battery at battery mode Green LED flashing every second
Audible alarm
Battery mode Sounding every 10 seconds Low Battery as battery mode Sounding every second
Fault Continously sounding Battery replacement Sounding every 2 seconds Overload Sounding every 0.5 second
-Physical Dimension DxWxH (mm)330x100x140
-Net weight (kgs) 6
-Enviroment Operation enviroment 0-40C,
-0-90% relative humidity (non condensing)
-Noise levelLess than 40db

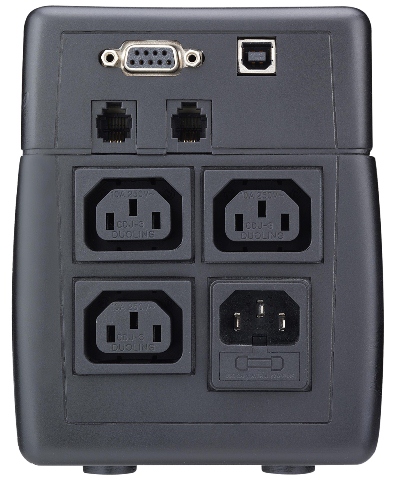

-Interface Power cord connector
1x IEC outlet
3x Socket outlet
N/A Phoneline/Network protection RJ11 (1x in/1x out) RS-232 1x
-Compliant OS: Windows/Linux/Sun Solaris/IBMAix/True 64/SGI IRIX/FreeBSD/HP UX and Mac USB port1x Compliant OS:
-Windows and Mac AccessoriesAC Input cable x1, IEC output cable x2, USB cable x1, RS232 cable x1, Application CD, User Guide

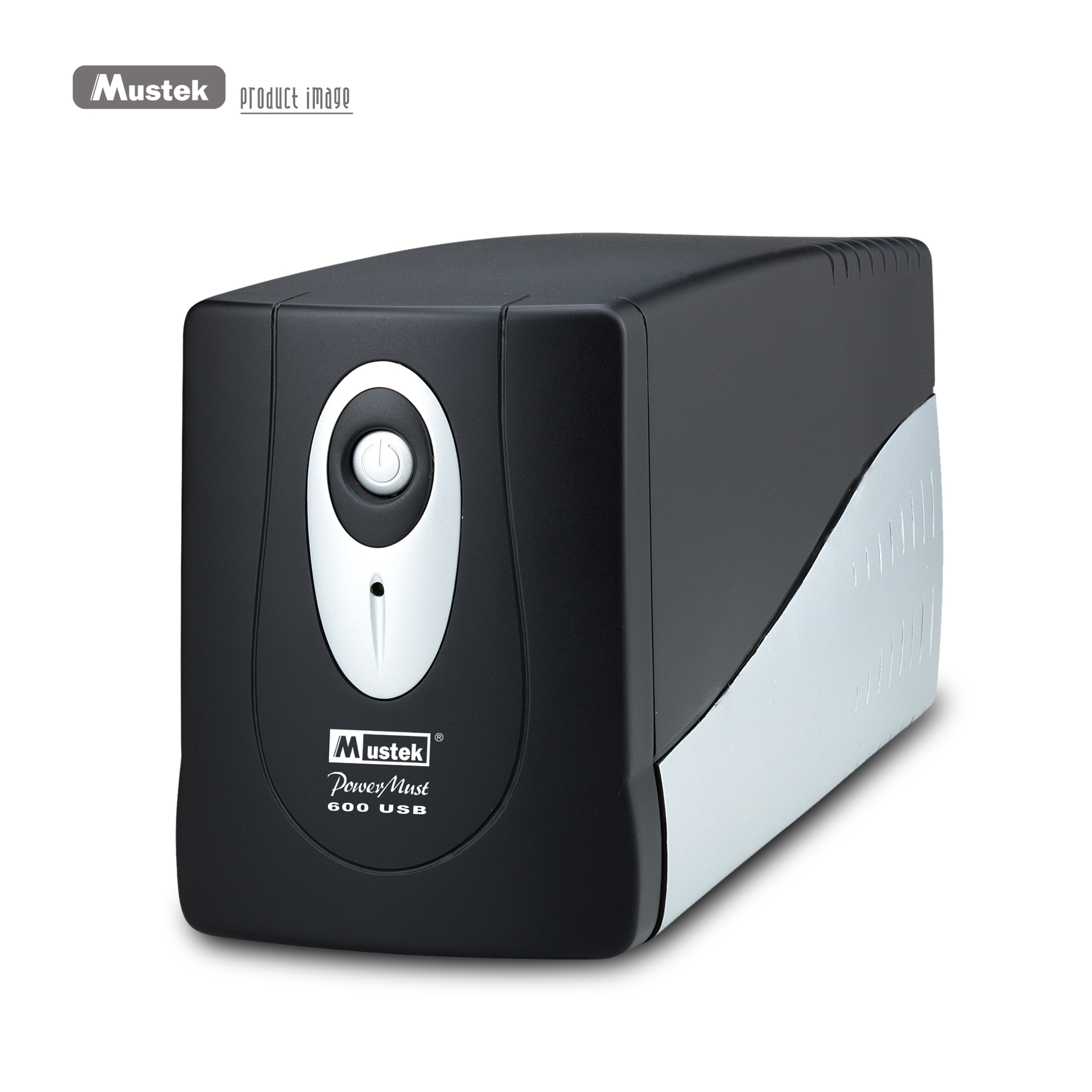

15x15 product image 300dpi PowerMust 600 USB.jpg | 0.9mb | 14-07-2017 | |

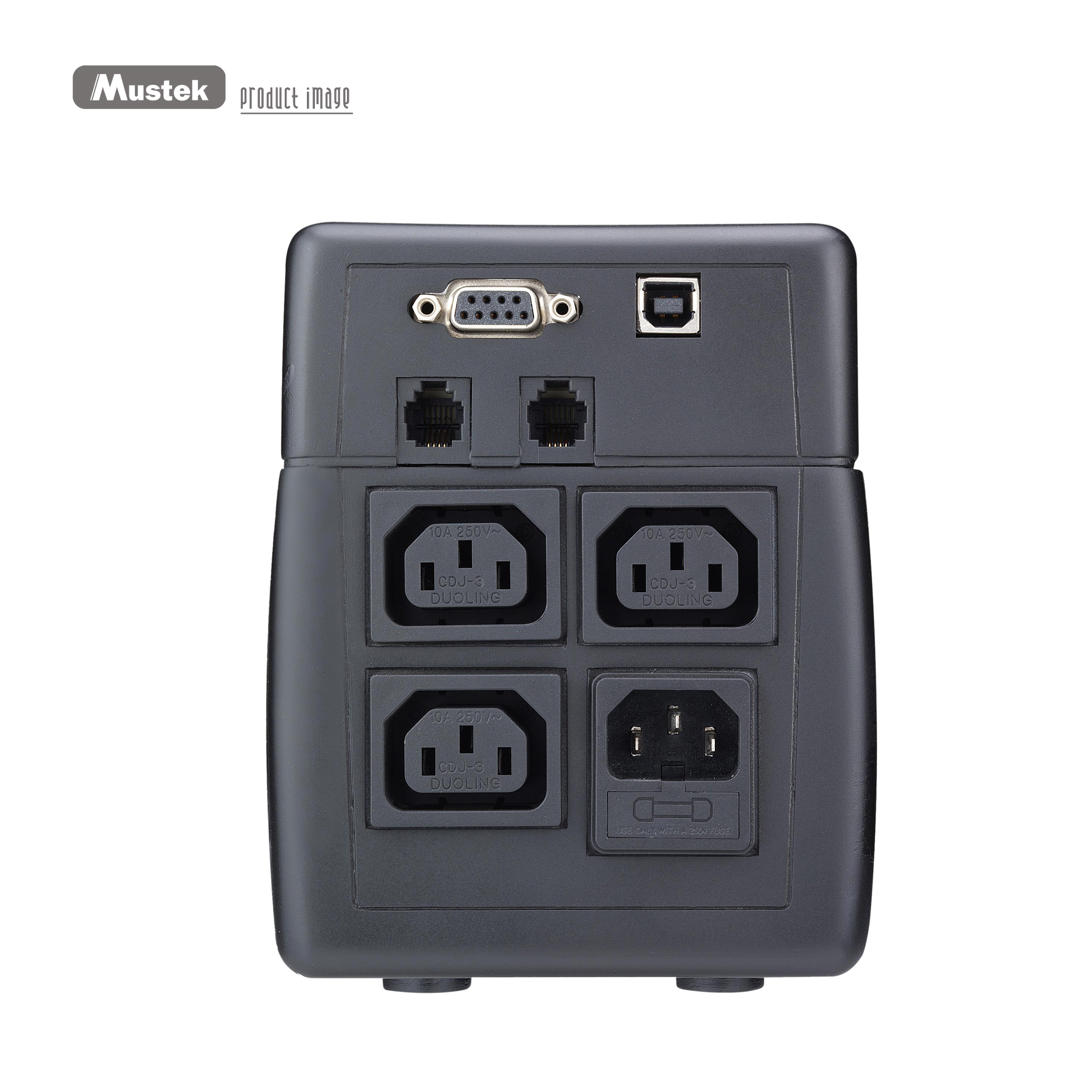

15x15 product image 300dpi PowerMust 400-800 USB back.jpg | 0.9mb | 14-07-2017 |
