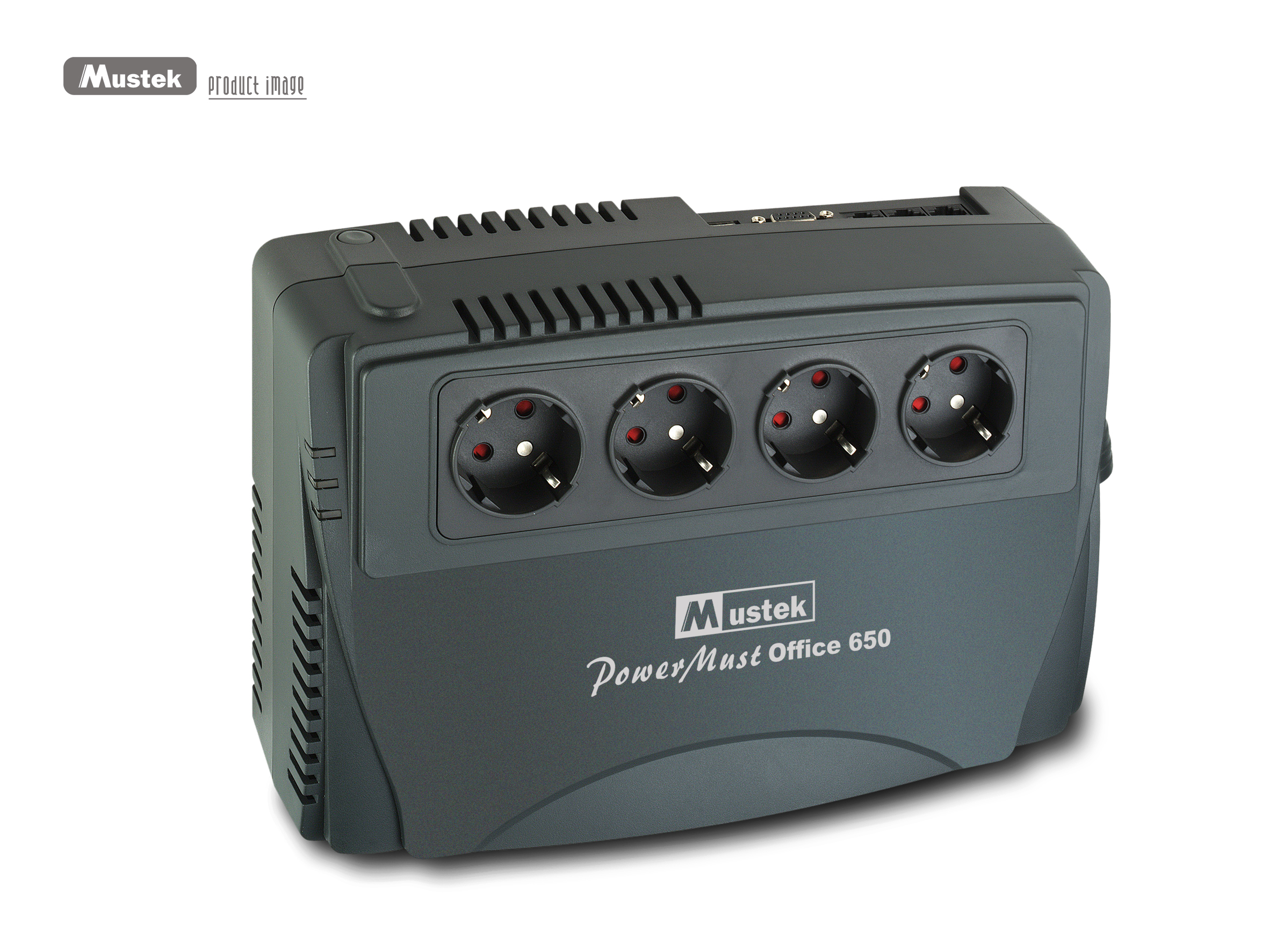

PowerMust Office 650
PowerMust Office 650
| Product type | Uninterrupted power supply; Offline / surge protection |
| Capacity | 650 VA / 390W |
| Product type | Uninterrupted power supply; Offline / surge protection |
| Capacity | 650 VA / 390W |
| Input | Phase: Single |
| Voltage: 120 VAC or 220 / 230 / 240VAC | |
| Voltage range: 99~141 VAC // 182~258 / 190~270 / 198~282 VAC | |
| Frequency: 50 / 60Hz | |
| Frequency range: 45~55 Hz // 55~65 Hz | |
| Output | Phase: Single |
| Voltage: 120 VAC or 230 VAC | |
| Voltage regulation (Batt. mode): ± 10% | |
| Frequency: 50 Hz or 60Hz | |
| Frequency regulation (Batt. mode): ±1Hz | |
| Output waveform (Batt. mode): Modified Sinewave | |
| Power factor | 0.6 |
| Battery | |
| Battery type & number: 12V7Ah * 1 pc | |
| Back up time (at a PC load with 15″ monitor): 20 minutes |
|
| Back up time (at a PC load with 17″ monitor): 16 minutes |
|
| Recharge time: 24 hours up to 90 % after complete discharge | |
| Transfer time | Typical: 2~6 ms |
| Indicator | AC mode: Green LED lighting |
| Battery mode: Orange LED flashing every 10 seconds | |
| Low battery at battery mode: Red LED lighting | |
| Fault: Red LED lighting | |
| Battery weak at AC mode: Red LED lighting | |
| Battery fault at AC mode: Red LED lighting | |
| Overload: N/A | |
| Audible alarm | Battery mode: Sounding every 10 seconds |
| Low battery at battery mode: Sounding every second | |
| Fault: Continuously Sounding | |
| Battery weak at AC mode: N/A | |
| Battery fault at AC mode: N/A | |
| Battery replacement: Sounding every 2 seconds | |
| Overload: N/A | |
| Protection | Full protection: Deep Discharge, OverCharge, Short Circuit Protection RJ 11 Modem/Telephone Protection *3 |
| Physical | Dimension, D*W*H (mm): 297*192*90 |
| Net weight (kgs): 6.2 | |
| Schuko type: 4 outlets (1 for surge protection, 3 for battery backup) | |
| Environment | Operating Environment: 0~40 °C, 20~90% relative humidity (non-condensing) |
| Noise Level: Less than 40dB | |
| Interface | Smart RS-232: Windows family, Linux, Sun Solaris, IBMAix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC |
| USB Port: Windows 98/2000/ME/XP | |
| Accessories | USB cable, RS232 cable, Application CD, User guide |
