Mustek PowerMust 1000 LCD Line Int., IEC / Schuko
Out of stock
Mustek PowerMust 1000 LCD Line Int., IEC / Schuko
Features
- Line Interactive UPS, LCD
- Compact size (32 x 13 x 18,2 cm)
- Excellent microprocessor control guarantees high reliability
- Boost and buck AVR for voltage stabilization
- Auto restart while AC is recovering
- Off mode charging
- Visual and Audible Alarm System
- Auto Voltage Regulator
- Cold start on Battery
| Specification | |||
| MODEL | PowerMust 1000 | PowerMust 1500 | PowerMust 2000 |
| INPUT | |||
| Capacity | 1000VA/600W | 1500VA/900W | 2000VA/1200W |
| Nominal Voltage | 220/230/240VAC | ||
| Voltage Range | 162-290 VAC | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | ± 10% | ||
| Frequency Range (Batt. Mode) | 50/60 Hz ± 1 Hz (auto sensing) | ||
| Transfer Time | Typical 2-6 ms | ||
| Waveform (Batt. Mode) | Simulated Sine Wave | ||
| Protection | Overload, discharge and overcharge protection | ||
| BATTERY | |||
| Battery Type | 12 V / 7 AH x 2 | 12 V/ 9 AH x 2 | 12 V / 9 AH x 2 |
| Typical Recharge Time | 4-6 hours to 90% capacity | ||
| Protection | Overload, Discharge and Overcharge protection | ||
| BACKUP TIME | |||
| 120 W | 35 min. | 45 min. | 45 min. |
| Full Loading | 30 sec. | 1 min. 20 sec. | 35 sec. |
| AUDIBLE ALARM | |||
| Battery Mode | Sounding every 10 seconds | ||
| Low Battery at Battery mode | Sounding every second | ||
| Overload | Sounding every 0.5 second | ||
| Fault | Continuously sounding | ||
| Battery Replacement | Sounding every 2 seconds | ||
| PHYSICAL | |||
| Dimension D x W x H (mm) | 320 x 130 x 182 | ||
| Net Weight (kgs) | 8,2 | 10,4 | 10,6 |
| ENVIRONMENT | |||
| Operation Humidity | 0-90% RH @ 0-40˚ C (non-condensing) | ||
| Noise Level | Less than 40 dB | ||
| INTERFACE | |||
| Power cord connector | IEC 1x | ||
| IEC / Schuko Outlet | 2 / 2 | 2 / 2 | 2 / 2 |
| Phoneline/Network protection | RJ45 | ||
| USB Port | USB | ||
| LED/LCD | LCD | ||
| Fan | No | Yes | |
| MANAGEMENT | |||
| USB Port | Windows® XP/Vista/2008/7/8/10, Linux and MAC | ||
Additional information
| Weight | 5.2 kg |
|---|

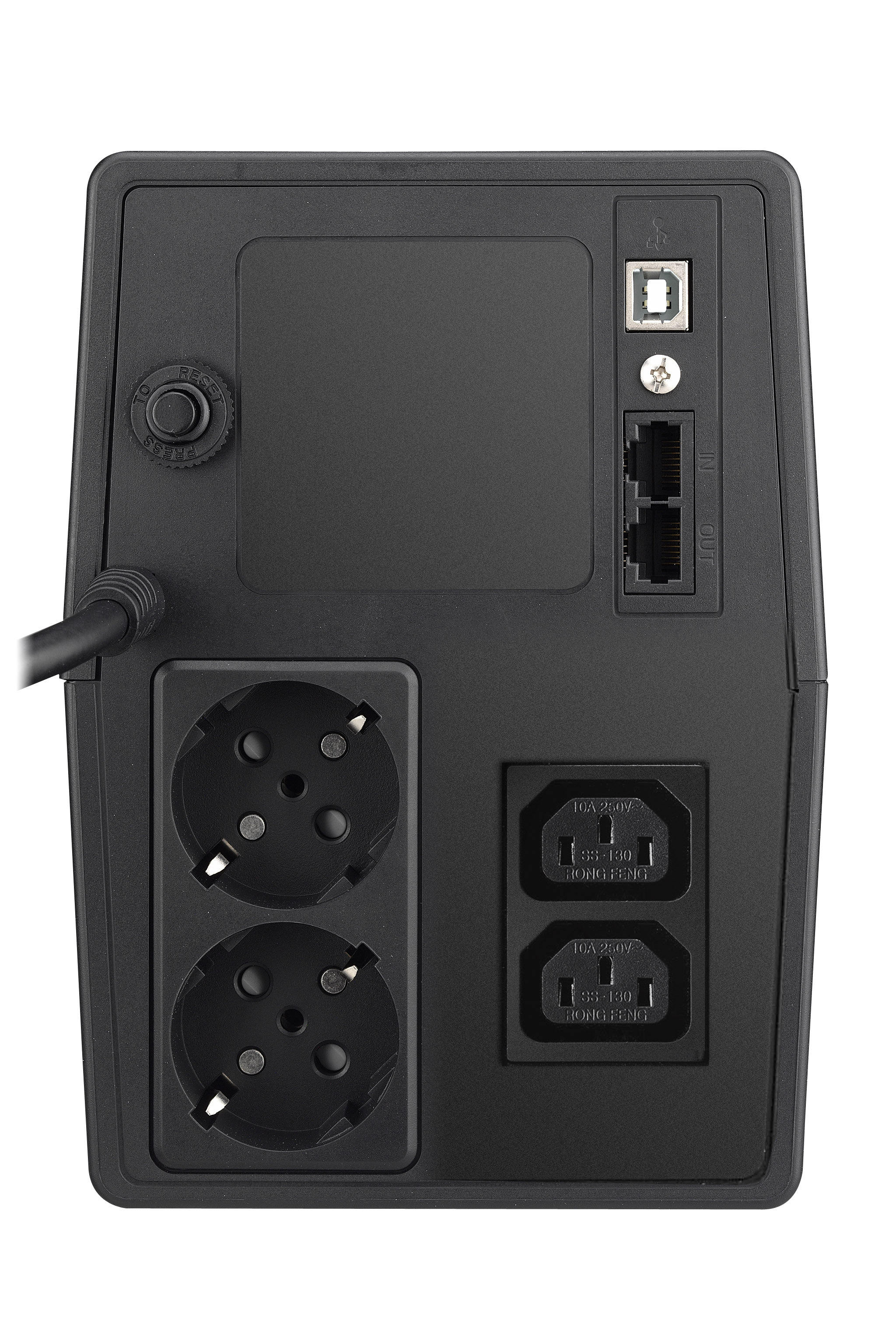

 | PM 1000 LCD IEC_Schuko back.jpg | 1.2mb | 20-09-2017 |

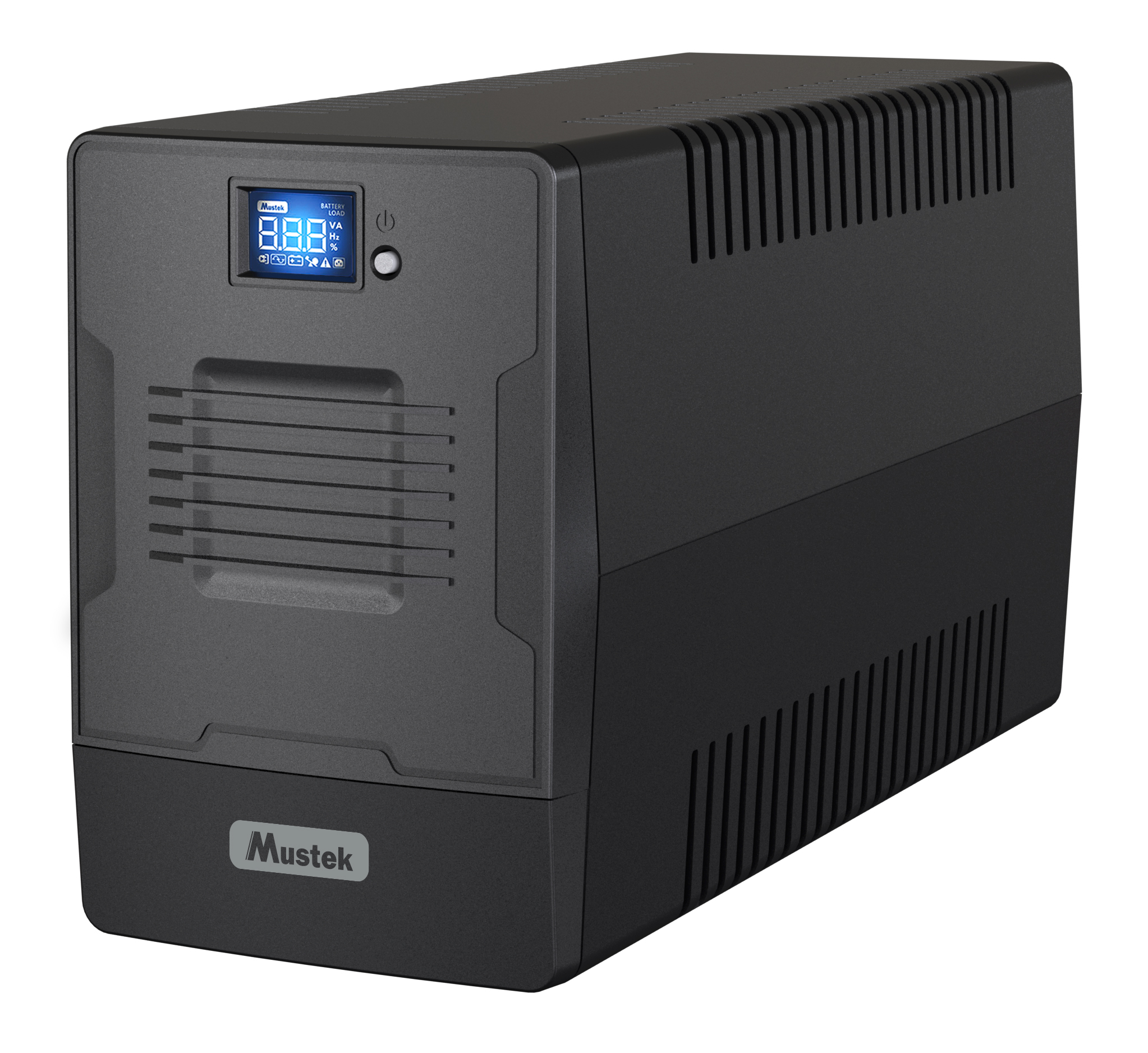

| PM 1000-1500-2000 LCD Line int R side.jpg | 1.5mb | 20-09-2017 |
| 1000-1500-2000 LCD IEC-Schuko.pdf | 0.5mb | 20-09-2017 |
| PowerMust 400_600_800_1000_1500_2000 LED_LCD.pdf | 2mb | 04-06-2018 |
