Mustek PowerMust 10000 Sinewave LCD Online IEC

Out of stock

Mustek PowerMust 10000 Sinewave LCD Online IEC

Features

  • Pure Sine Wave
  • True double-conversion online UPS
  • Wide input voltage range
  • High efficiency up to 94%
  • Emergency power off (EPO) function
  • Multiple communication, SNMO + USB + RS-232
  • Output power factor 1
  • Output voltage regulation < 2%
  • Generator compatible
  • DSP technology guarantees high performance



SKU: 10000-LCD-ON-T20-1 Categories: , ,
Specification
MODEL PowerMust 6000 LCD PowerMust 10000 LCD
INPUT
Capacity 6000VA/6000W 10000VA/10000W
Voltage Range 110–300 VAC@ 0-60% load;140-300 VAC@60-80% load;176–300 VAC@80-100% load
THDI < 4% @ 100% load : < 6% @50% load
Frequency Range 46-54 Hz / 56-64 Hz
Phase Single phase with ground
Power Factor ≥ 0.99 @ full load
OUTPUT
Output voltage 208/220/230/240 VAC
AC Voltage Regulation ± 1%
Frequency Range (Synchronized Range) 46 ~ 54  or  56  ~ 64 Hz
Frequency range ( Batt. Mode) 50 Hz or 60 Hz ± 0,1 Hz
Current Crest Ratio 3:1 (max)
Harmonic Distortion ≤1% THD (Linear Load); ≤4% THD (non-Linear Load)
Waveform (Batt. Mode) Pure Sinewave
BATTERY
Battery Type 12 V / 7 AH x 16 12 V / 9 AH x 16
Recharge Time 9 hours recover to 90% capacity
Charging Current 1.0 A
BACK-UP TIME
Back up time > 4 min. > 2,5 min.
AUDIBLE ALARM
Battery Mode Sounding every 4 seconds
Battery Low Sounding every 2 seconds
Fault Continuesly sounding
Overload Sounding twice every second
TRANSFER TIME
BAT <–> LINE 0 ms 0 ms
INV <–> BYPASS 0 ms 0 ms
INV –> ECO 0 ms 0 ms
ECO–> INV 10 ms (Typical) 10 ms (Typical)
PHYSICAL
Dimension, D X W X H (mm) 269 x 190 x 688 442 x 190 x 688
Net Weight (kgs) 54 66
ENVIRONMENT
Operation Environment 0-40˚
Relative Humidity 20-95% (non-condensing)
Noise Level < 50 dB @ front 1 Meter < 58dB @ 1 Meter
INTERFACE
EPO Emergency Power Off
Dry Contact External Battery Connector (Change to 0,8PF with external EBM)
Intelligent slot External Type of SNMP / RS485 / AS 400 / USB card
AC Outlets Terminal Block
USB port USB
ACCESSORIES
Accessories User manual,EPO connector x1, Input power cord schuko, USB cable x 1, Software CD
MANAGEMENT
Smart RS 232 or USB Port Supports Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC
Optional SNMP Power Management from SNMP manager and Web browser

Additional information

Weight 5.2 kg

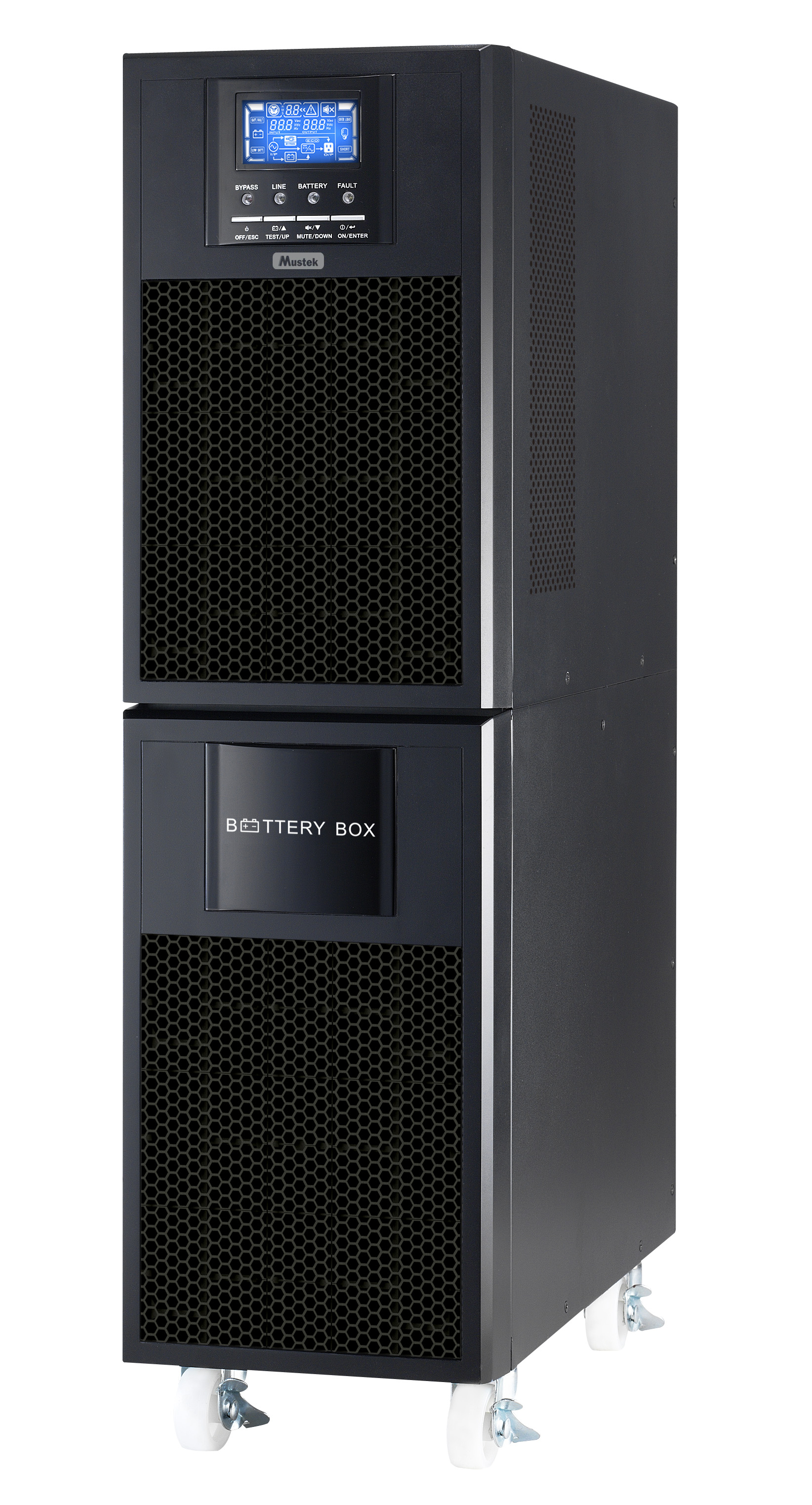

PM 6000-10000 LCD Online IEC front.jpg0.9mb20-09-2017

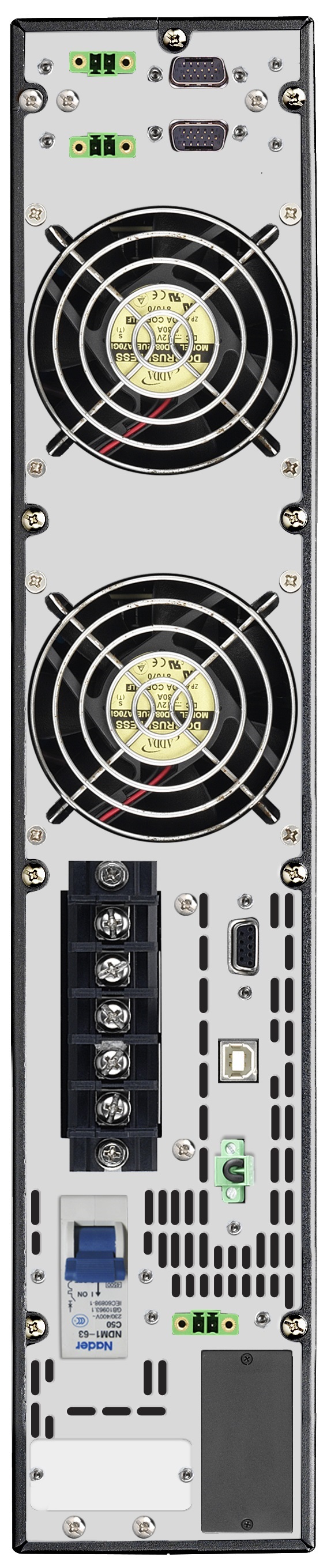

PM 6000-10000 LCD Online IEC back.jpg0.5mb20-09-2017
6000-10000 LCD Online.pdf0.7mb20-09-2017
PowerMust 6000_10000 LCD Online IEC.pdf3.3mb04-06-2018
