PowerMust 600EG Line Int. Schuko

PowerMust 600EG Line Int. Schuko

Features

  • Line Interactive UPS
  • Compact size
  • Microprocessor control guarantees high reliability
  • Discharge and overcharge protection
  • Auto restart while AC is recovering
  • Off mode charging
  • Auto Voltage regulator
  • Visiual and audible Alarm system
  • Cold start on Battery



SKU: 600-LED-LIG-T10 Category:
Specification
MODEL PowerMust 400EG PowerMust 600EG PowerMust 800EG
INPUT
Capacity 400VA/240W 600VA/360W 800VA/480W
Nominal Voltage  220/230/240VAC
Voltage Range  162-290 VAC
Frequency Range 60/50 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) ± 10%
Frequency Range (Batt. Mode) 50 / 60 Hz ± 1 Hz
Transfer Time Typical 2-6 ms
Waveform (Batt. Mode) Simulated Sine Wave
BATTERY
Battery Type 12 V / 4.5 AH 12 V/ 7 AH x1 12 V / 9 AH x 1
Typical Recharge Time 4-6 hours recover to 90% capacity
Protection Overload, discharge and overcharging protection
BACKUP TIME
Half Loading 7 min. 5 min. 5 min.
Full Loading 1 min (80%) 5 sec. 5 sec.
INDICATORS
AC Mode Green Lighting
Battery Mode Green flashing
AUDIBLE ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
PHYSICAL
Dimension, D X W X H (mm) 279 x 101  x 142
Net Weight (kgs) 3,55 4,2 4,9
ENVIRONMENT
Operation Humidity 0-90% RH @ 0-40˚ C (non-condensing)
Noise Level Less than 40 dB
INTERFACE
Inlet Inlet Power
LED LED x 1
Outlet 2 x Schuko

Additional information

Weight 4.25 kg

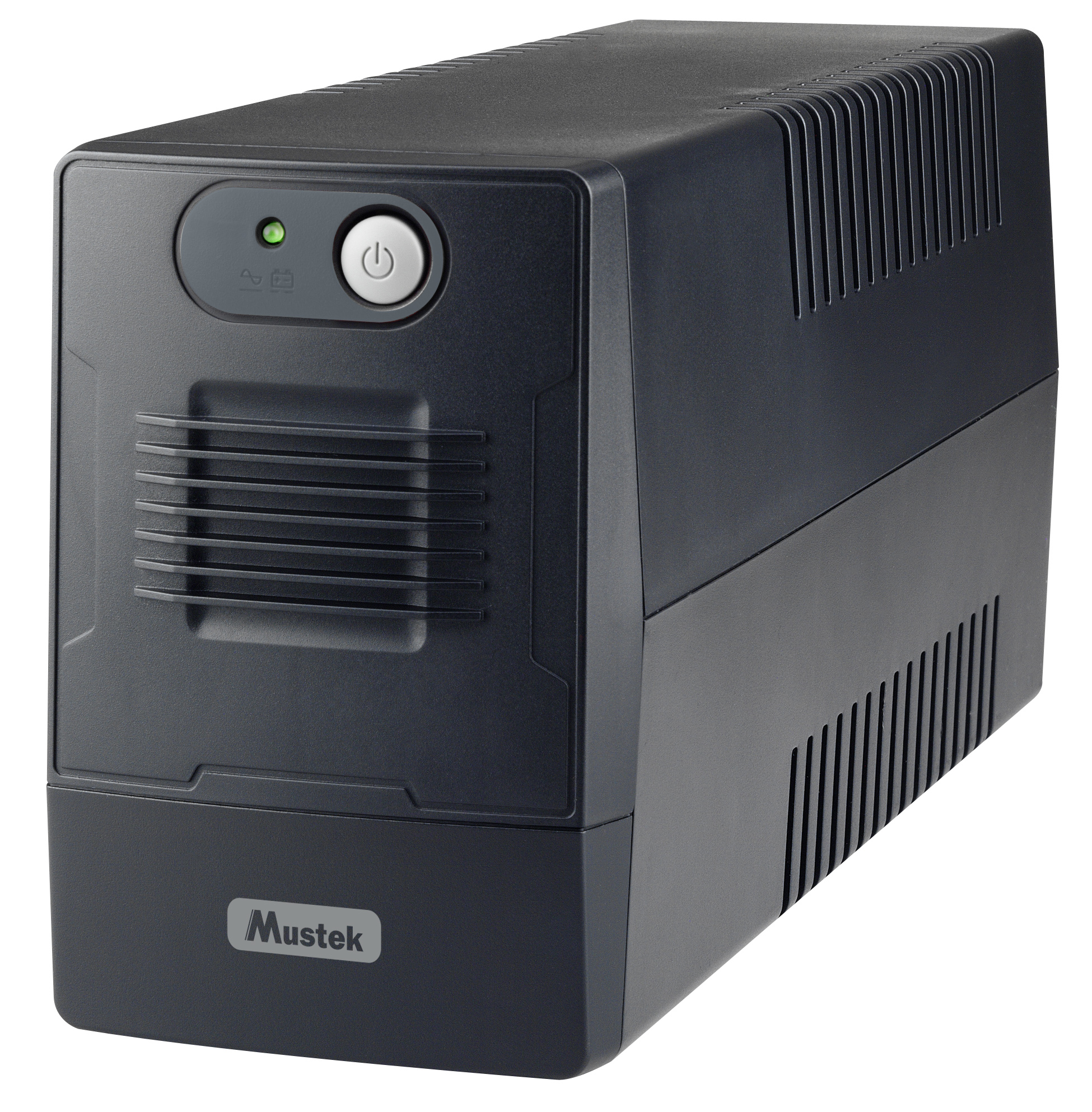

PM 400-600-800 EG LED-R side.jpg1.5mb20-09-2017

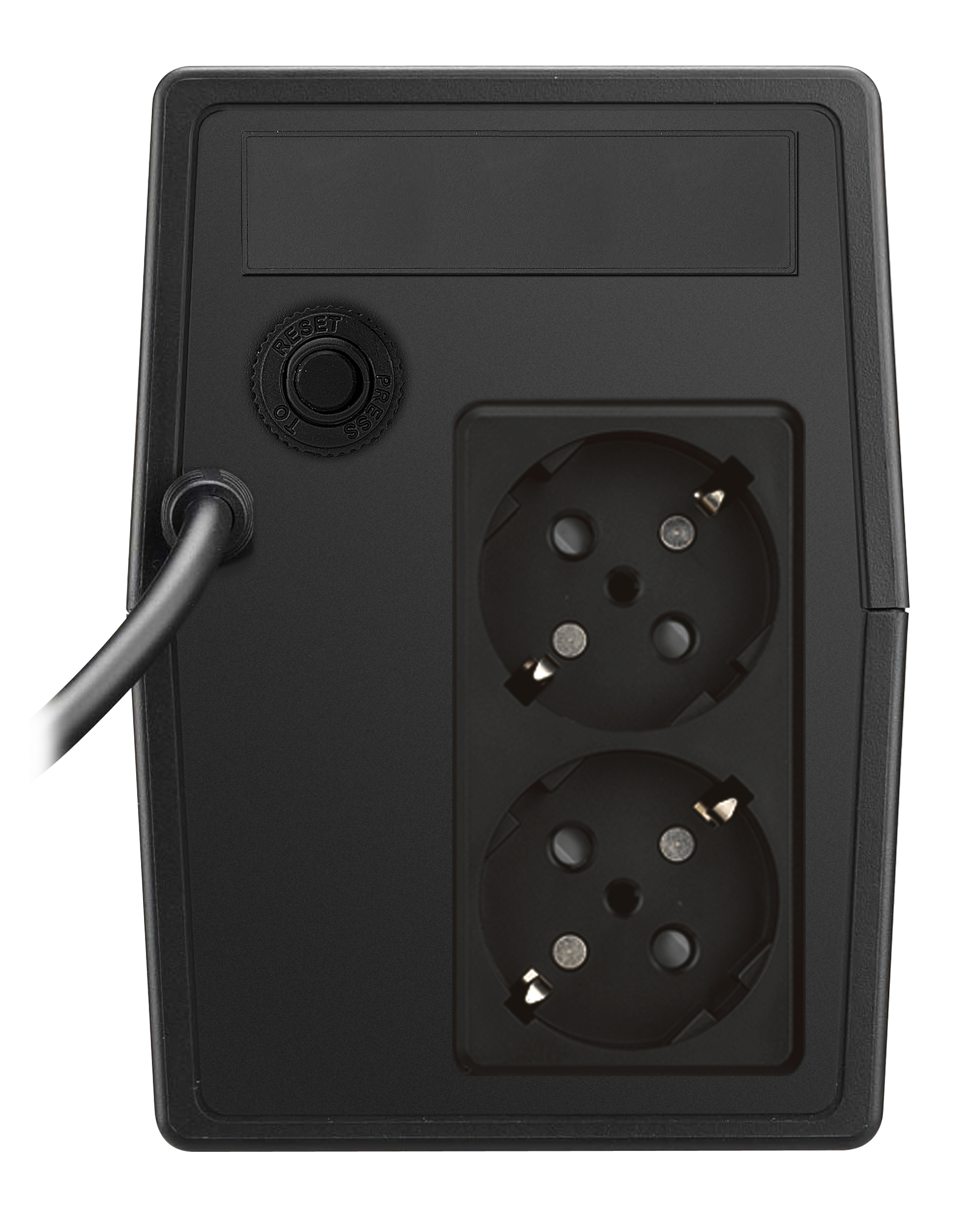

PM 400-600-800 EG line int schuko back.jpg1.4mb20-09-2017
