Mustek PowerMust 6000 Sinewave LCD Online IEC
Out of stock
Mustek PowerMust 6000 Sinewave LCD Online IEC
Features
- Pure Sine Wave
- True double-conversion online UPS
- Wide input voltage range
- High efficiency up to 94%
- Emergency power off (EPO) function
- Multiple communication, SNMO + USB + RS-232
- Output power factor 1
- Output voltage regulation < 2%
- Generator compatible
- DSP technology guarantees high performance
| Specification | ||||
| MODEL | PowerMust 6000 LCD | PowerMust 10000 LCD | ||
| INPUT | ||||
| Capacity | 6000VA/6000W | 10000VA/10000W | ||
| Voltage Range | 110–300 VAC@ 0-60% load;140-300 VAC@60-80% load;176–300 VAC@80-100% load | |||
| THDI | < 4% @ 100% load : < 6% @50% load | |||
| Frequency Range | 46-54 Hz / 56-64 Hz | |||
| Phase | Single phase with ground | |||
| Power Factor | ≥ 0.99 @ full load | |||
| OUTPUT | ||||
| Output voltage | 208/220/230/240 VAC | |||
| AC Voltage Regulation | ± 1% | |||
| Frequency Range (Synchronized Range) | 46 ~ 54 or 56 ~ 64 Hz | |||
| Frequency range ( Batt. Mode) | 50 Hz or 60 Hz ± 0,1 Hz | |||
| Current Crest Ratio | 3:1 (max) | |||
| Harmonic Distortion | ≤1% THD (Linear Load); ≤4% THD (non-Linear Load) | |||
| Waveform (Batt. Mode) | Pure Sinewave | |||
| BATTERY | ||||
| Battery Type | 12 V / 7 AH x 16 | 12 V / 9 AH x 16 | ||
| Recharge Time | 9 hours recover to 90% capacity | |||
| Charging Current | 1.0 A | |||
| BACK-UP TIME | ||||
| Back up time | > 4 min. | > 2,5 min. | ||
| AUDIBLE ALARM | ||||
| Battery Mode | Sounding every 4 seconds | |||
| Battery Low | Sounding every 2 seconds | |||
| Fault | Continuesly sounding | |||
| Overload | Sounding twice every second | |||
| TRANSFER TIME | ||||
| BAT <–> LINE | 0 ms | 0 ms | ||
| INV <–> BYPASS | 0 ms | 0 ms | ||
| INV –> ECO | 0 ms | 0 ms | ||
| ECO–> INV | 10 ms (Typical) | 10 ms (Typical) | ||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 269 x 190 x 688 | 442 x 190 x 688 | ||
| Net Weight (kgs) | 54 | 66 | ||
| ENVIRONMENT | ||||
| Operation Environment | 0-40˚ | |||
| Relative Humidity | 20-95% (non-condensing) | |||
| Noise Level | < 50 dB @ front 1 Meter | < 58dB @ 1 Meter | ||
| INTERFACE | ||||
| EPO | Emergency Power Off | |||
| Dry Contact | External Battery Connector (Change to 0,8PF with external EBM) | |||
| Intelligent slot | External Type of SNMP / RS485 / AS 400 / USB card | |||
| AC Outlets | Terminal Block | |||
| USB port | USB | |||
| ACCESSORIES | ||||
| Accessories | User manual,EPO connector x1, Input power cord schuko, USB cable x 1, Software CD | |||
| MANAGEMENT | ||||
| Smart RS 232 or USB Port | Supports Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC | |||
| Optional SNMP | Power Management from SNMP manager and Web browser | |||
Additional information
| Weight | 5.2 kg |
|---|

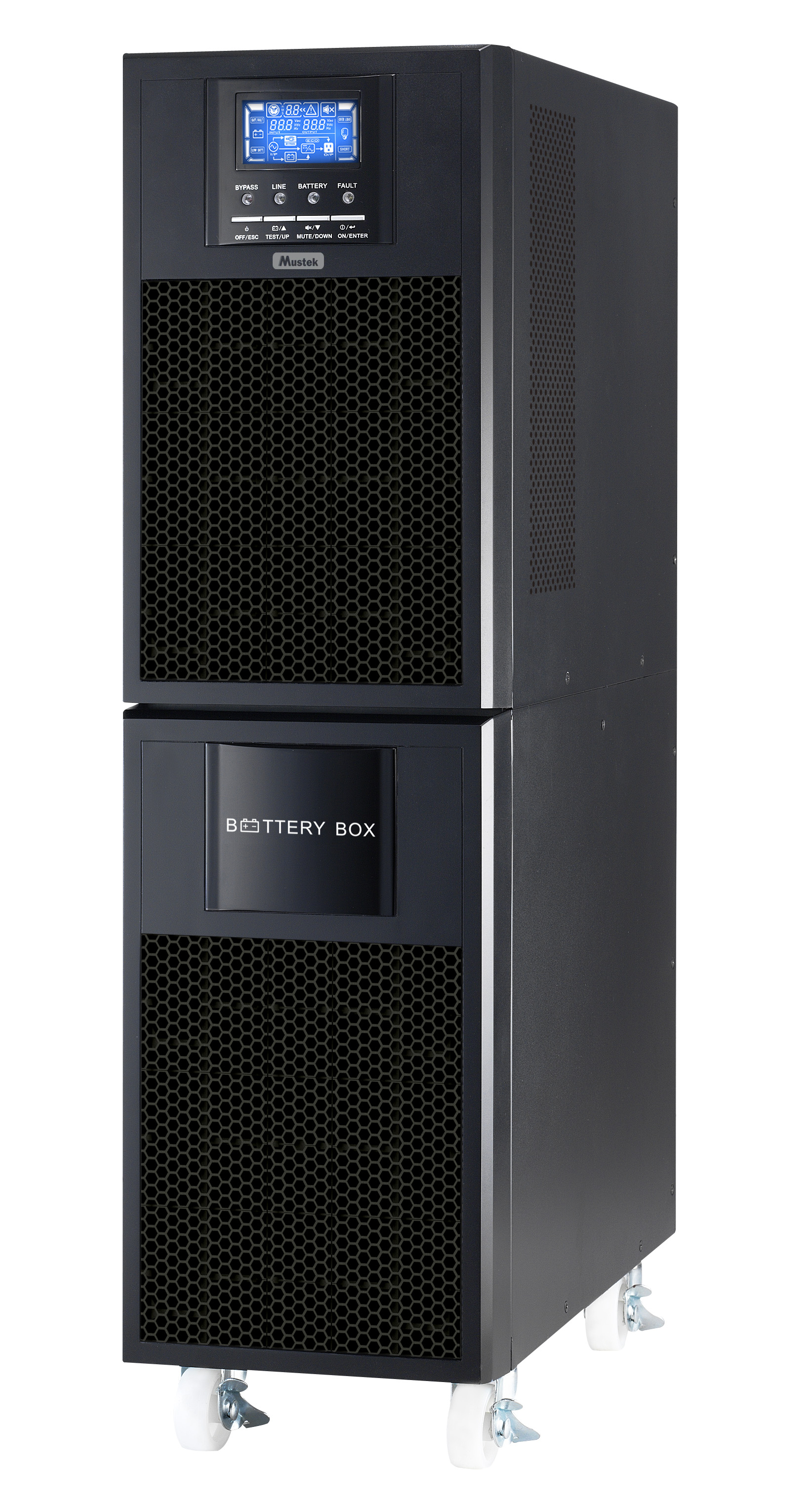

 | PM 6000-10000 LCD Online IEC front.jpg | 0.9mb | 20-09-2017 |

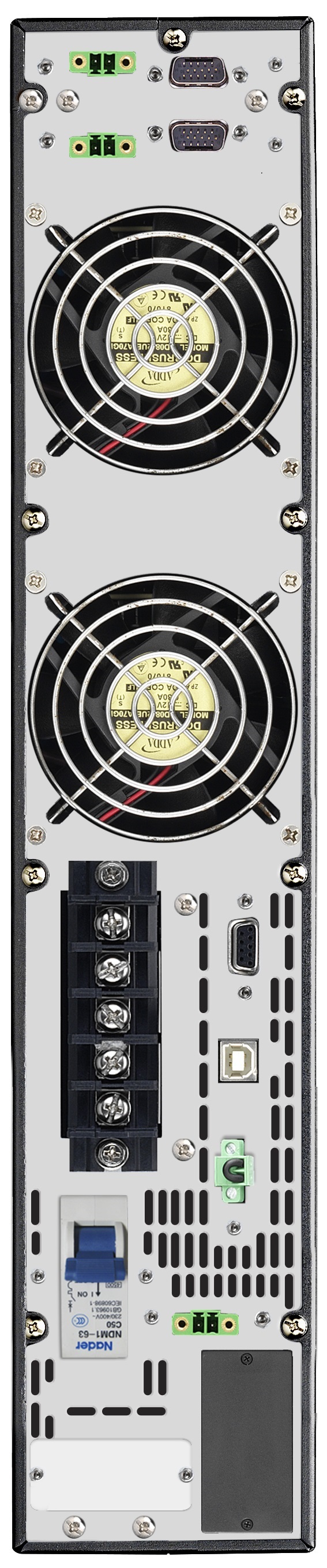

| PM 6000-10000 LCD Online IEC back.jpg | 0.5mb | 20-09-2017 |
| 6000-10000 LCD Online.pdf | 0.7mb | 20-09-2017 |
| PowerMust 6000_10000 LCD Online IEC.pdf | 3.3mb | 04-06-2018 |
