Mustek PowerMust 2000 Line Int., Schuko

Mustek PowerMust 2000 Line Int., Schuko

Features

  • Line Interactive UPS
  • Compact size (32 x 13 x 18,2 cm)
  • Excellent microprocessor control guarantees high reliability
  • Boost and buck AVR for voltage stabilization
  • Auto restart while AC is recovering
  • Off mode charging
  • Visual and Audible Alarm System
  • Cold start on Battery



SKU: 2000-LED-LI-T10 Categories: ,
Specification
MODEL PowerMust 1000 PowerMust 1500 PowerMust 2000
INPUT
Capacity 1000VA/600W 1500VA/900W 2000VA/1200W
Nominal Voltage  220/230/240VAC
Voltage Range  162-290 VAC
OUTPUT
AC Voltage Regulation (Batt. Mode) ± 10%
Frequency Range (Batt. Mode) 50 / 60  Hz ± 1 Hz
Transfer Time Typical 2-6 ms
Waveform (Batt. Mode) Simulated Sine Wave
BATTERY
Battery Type 12 V / 7 AH x 2 12 V/ 9 AH x 2 12 V / 9 AH x 2
Typical Recharge Time 4-6 hours to 90% capacity
Protection Overload, Discharge and Overcharge protection
BACKUP TIME
120W 35 min. 45 min. 45 min.
Full Loading 30 sec. 1 min. 20 sec. 35 sec.
INDICATORS
AC Mode Green LED lighting
Battery Mode Yellow LED flashing
Fault Red LED lighting
AUDIBLE ALARM
Battery Mode Sounding every 10 seconds
Low Battery at Battery mode Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
PHYSICAL
Dimension, D X W X H (mm) 320 x 130 x 182
Net Weight (kgs) 8,2 10,4 10,6
ENVIRONMENT
Operation Humidity 0-90% RH @ 0-40˚ C (non-condensing)
Noise Level Less than 40 dB
INTERFACE
Power cord connector IEC 1x
Schuko Outlet 4
IEC Outlet
Phoneline/Network protection connector RJ45
USB Port USB Type B communication port
LED 3x
Fan No Yes Yes
MANAGEMENT
USB Port Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC

Additional information

Weight 5.2 kg

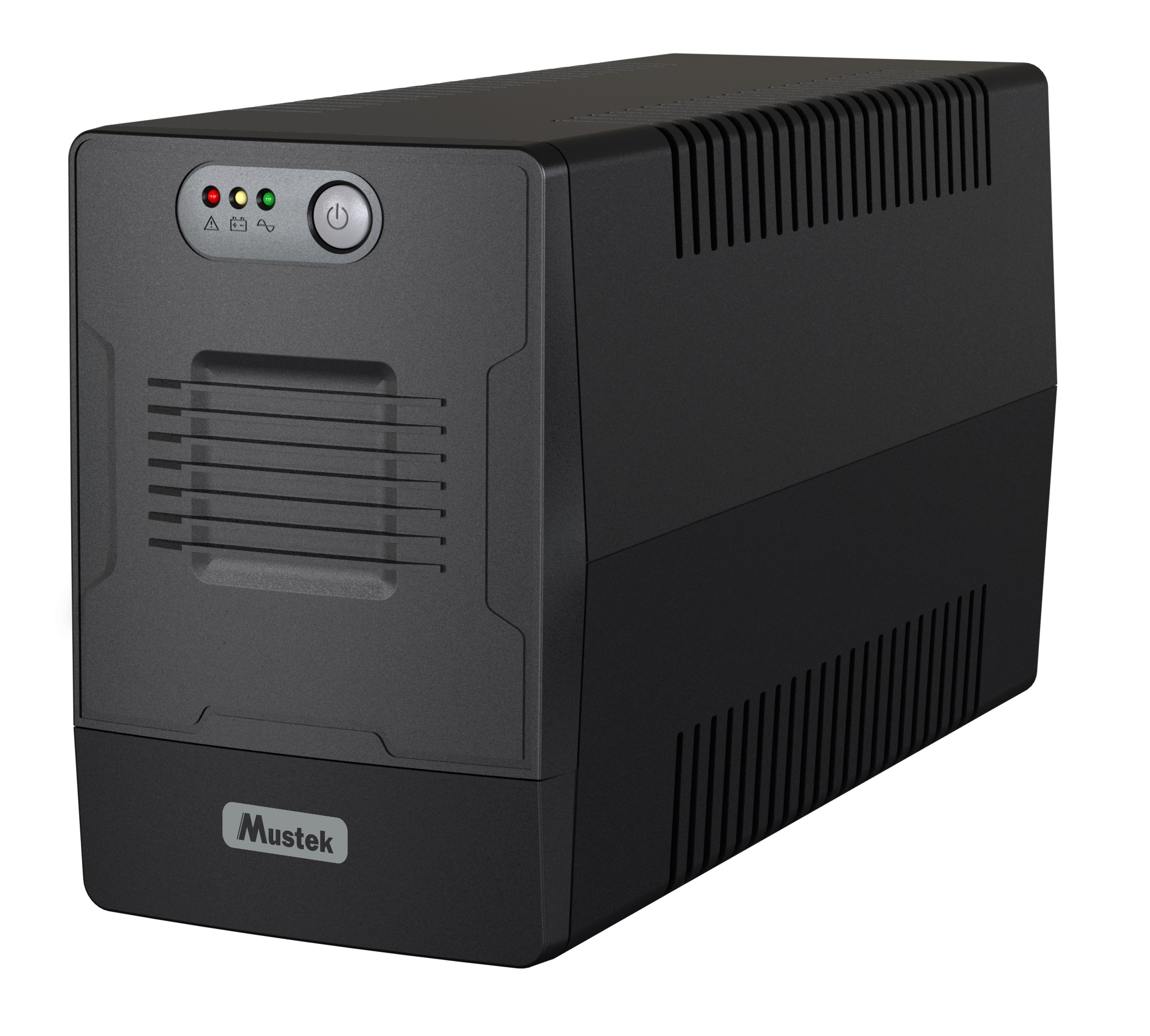

PM 1000-1500-2000 line int R side.jpg1.5mb20-09-2017

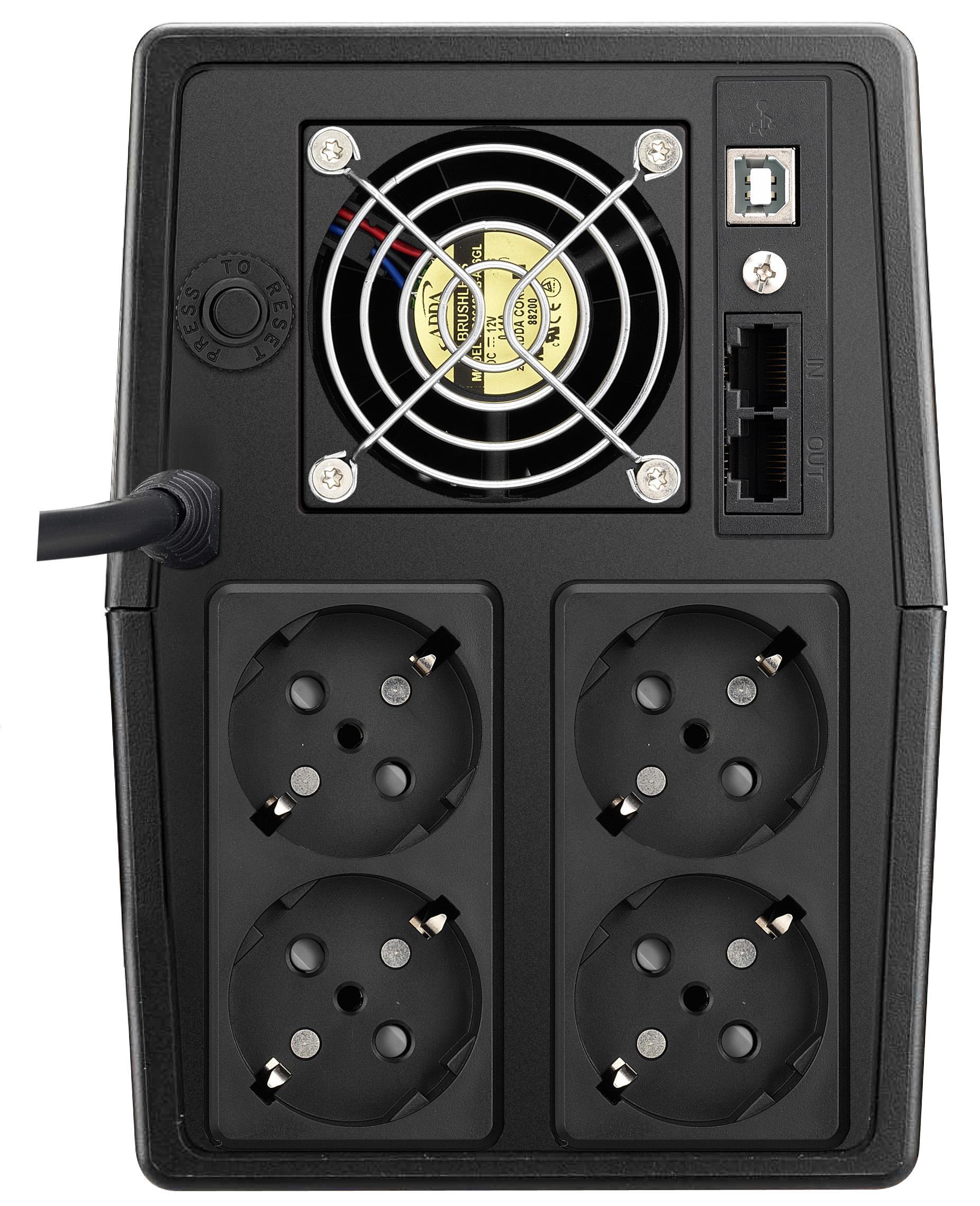

PM 1500-2000 line int schuko back.jpg1.1mb20-09-2017
