PowerMust 1000EG Line Int. Schuko

Out of stock

PowerMust 1000EG Line Int. Schuko

Features

  • Line Interactive UPS
  • Compact size
  • Microprocessor control guarantees high reliability
  • Discharge and overcharge protection
  • Auto restart while AC is recovering
  • Off mode charging
  • Auto Voltage regulator
  • Visiual and audible Alam system
  • Cold start on Battery



SKU: 1000-LED-LIG-T10 Category:
Specification
MODEL PowerMust 1000EG
INPUT
Capacity 1000VA/600W
Nominal Voltage  220/230/240VAC
Voltage Range  162-290 VAC
Frequency Range 60/50 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) ± 10%
Frequency Range (Batt. Mode) 50 / 60 Hz ± 1 Hz
Transfer Time Typical 2-6 ms
Waveform (Batt. Mode) Simulated Sine Wave
BATTERY
Battery Type 12 V / 7 AH x 2
Typical Recharge Time 4-6 hours recover to 90% capacity
Protection Overload, discharge and overcharge protection
BACKUP TIME
Half Loading 7 min.
Full Loading 1 min (80%)
INDICATORS
AC Mode Green Lighting
Battery Mode Yellow flashing
Fault Red Lighting
AUDIBLE ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
PHYSICAL
Dimension, D X W X H (mm) 320 x 130  x 182
Net Weight (kgs) 8,2
ENVIRONMENT
Operation Humidity 0-90% RH @ 0-40˚ C (non-condensing)
Noise Level
INTERFACE
Inlet Inlet Power
LED LED x 3
Outlet 4 x Schuko

Additional information

Weight 4.25 kg

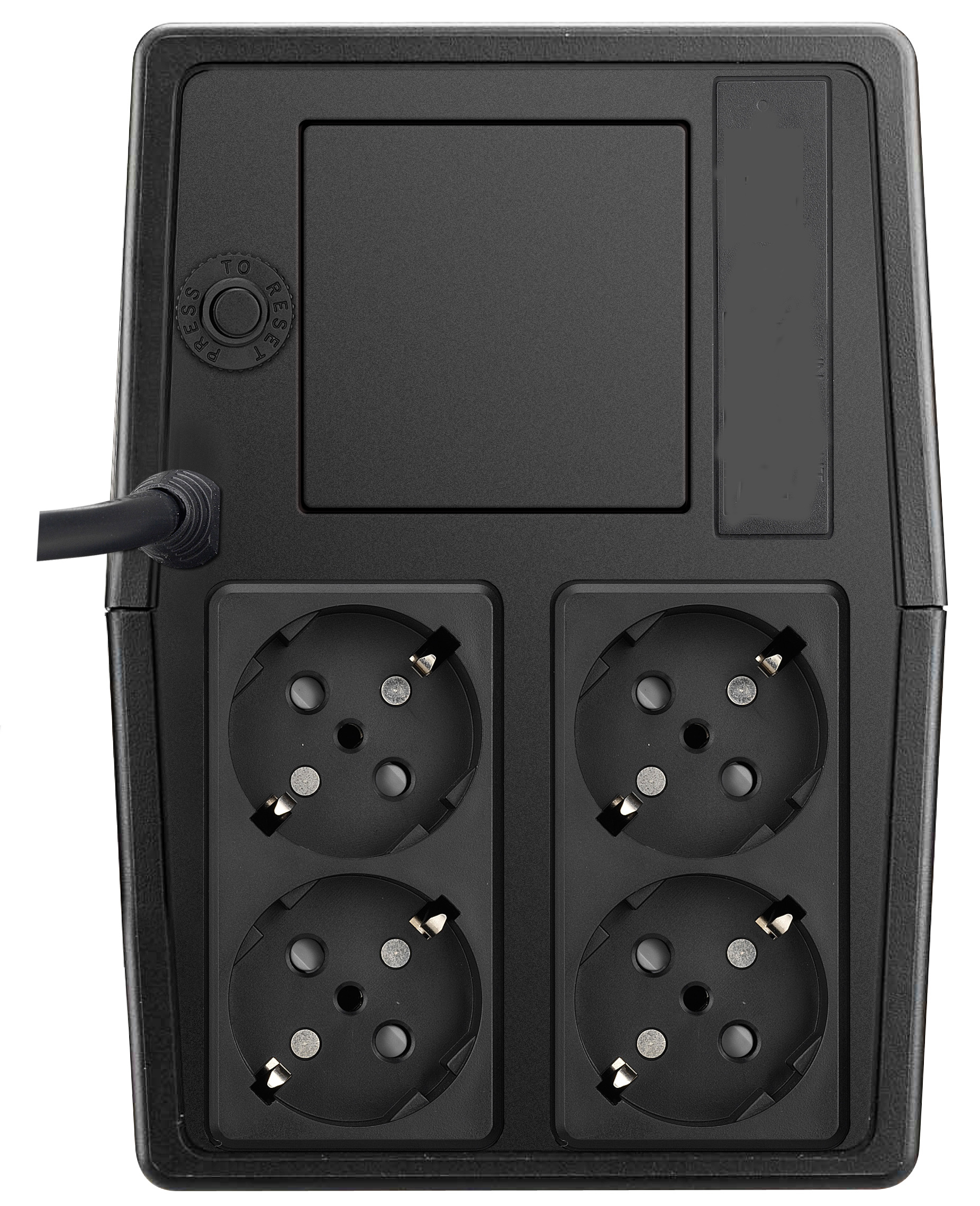

PM 1000EG back.jpg1.3mb20-09-2017

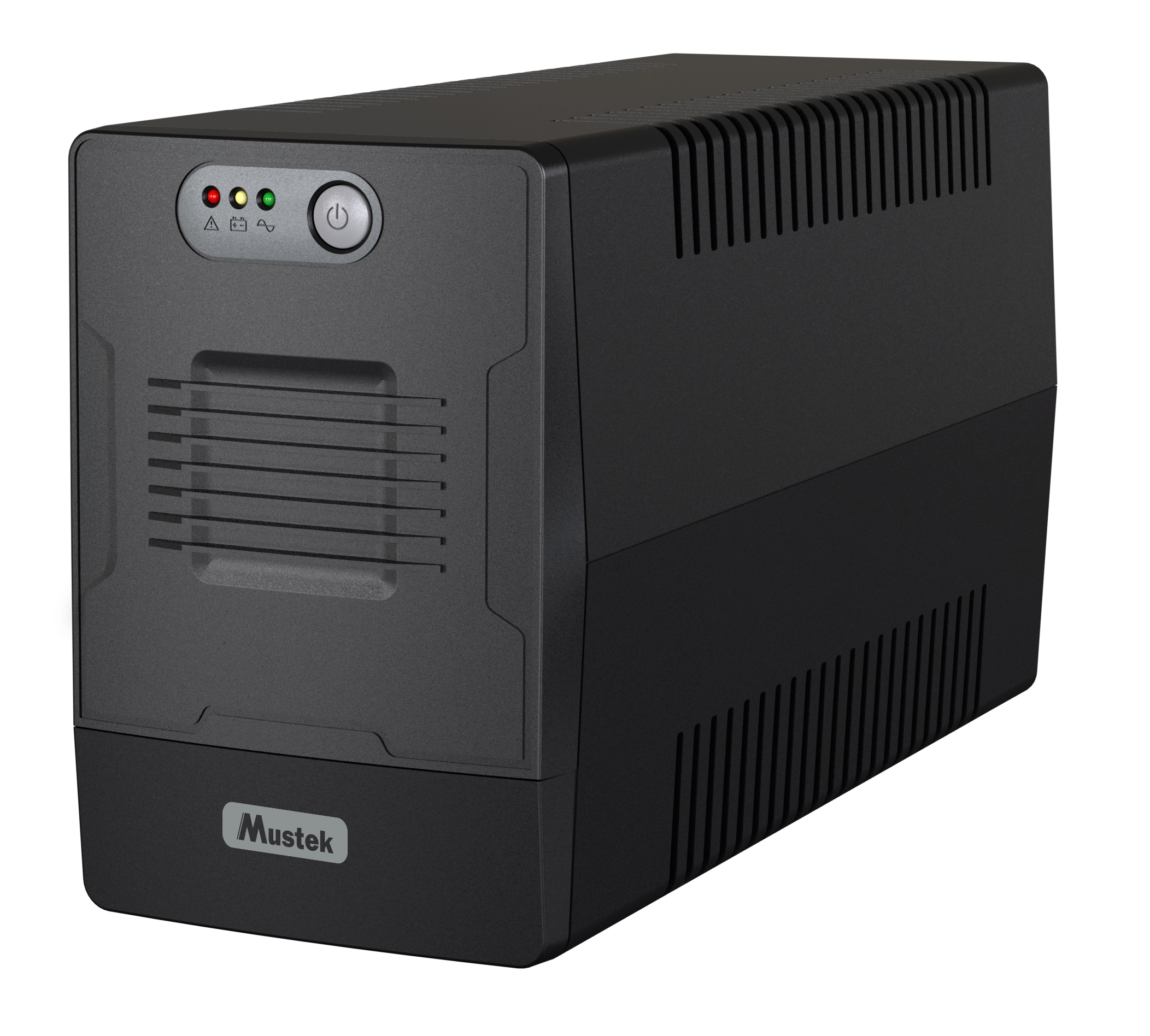

PM 1000-1500-2000 EG Line int schuko.jpg1.5mb20-09-2017
1000-1500-2000 EG.pdf1mb20-09-2017
PowerMust 400_600_800_1000_1500_2000 LED_LCD.pdf2mb04-06-2018
