Mustek PowerMust 600 LCD , Line Int., Schuko
Out of stock
Mustek PowerMust 600 LCD , Line Int., Schuko
Features
- Line Interactive UPS
- Touch Screen LCD to display UPS information
- Compact size (30,0 x 10,1 x 14,2cm)
- Microprocessor control guarantees high reliability
- Discharge and overcharge protection
- Auto restart while AC is recovering
- Off mode charging
- Visual and audible Alarm system
- Cold start function
| MODEL | PowerMust 600 LCD | PowerMust 800 LCD |
| INPUT | ||
| Capacity | 600VA/360W | 800VA/480W |
| Nominal Voltage | 220/230/240VAC | |
| Voltage Range | 162-290 VAC | |
| Frequency Range | 50/60 Hz ± 1 Hz (auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 220 / 230 /240 ± 10% | |
| Frequency Range (Batt. Mode) | 50 / 60 Hz ± 1 Hz | |
| Transfer Time | Typical 2-6 ms | |
| Waveform (Batt. Mode) | Simulated Sine Wave | |
| Protection | Overload, discharge and overcharge protection | |
| BATTERY | ||
| Battery Type | 12 V/ 7 AH x 1 | 12 V / 9 AH x 1 |
| Recharge Time | 4 hours to 90% capacity | |
| Backup Time (at 100W load) | 16 min. | 20 min. |
| AUDIBLE ALARM | ||
| Battery Mode | Sounding every 10 seconds | |
| Low Battery at battery mode | Sounding every second | |
| Fault | Continuously sounding | |
| Battery replacement | Sounding every 2 seconds | |
| Overload | Sounding every 0.5 second | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 300 x 101 x 142 | |
| Net Weight (kgs) | 4,5 | 5 |
| ENVIRONMENT | ||
| Operation Humidity | 0-90% RH @ 0-40˚ C (non-condensing) | |
| Noise Level | Less than 40 dB | |
| INTERFACE | ||
| Power Cord Connector | Schuko input powercord | |
| Outlet | Schuko 2 x | |
| Phoneline/ Network protection | RJ11 | |
| USB port | Yes | |
| LED/LCD | LCD | |
| MANAGEMENT | ||
| USB Port | Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC | |
Additional information
| Weight | 5.2 kg |
|---|

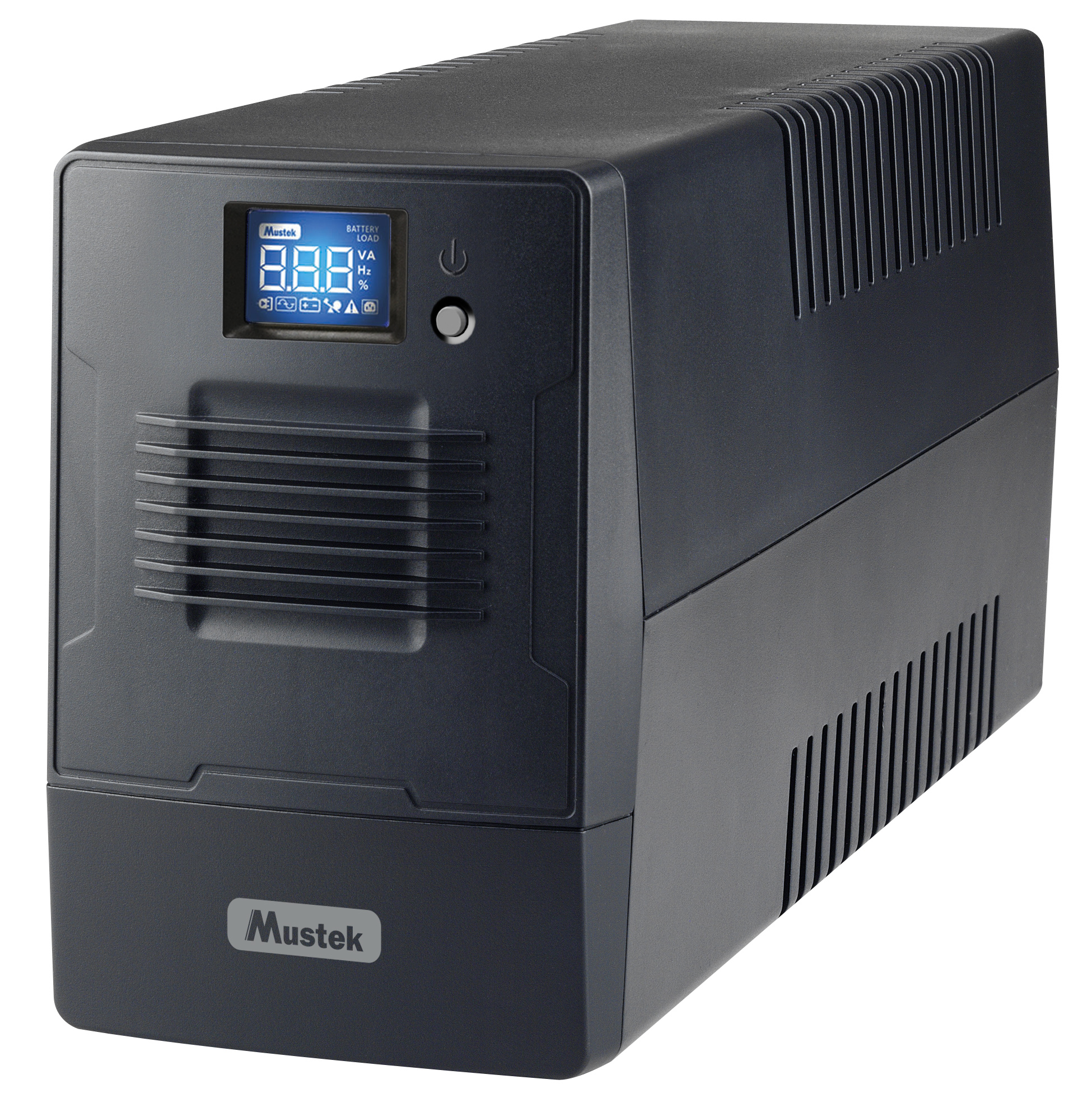

 | PM 600-800 LCD-R side.jpg | 1.5mb | 20-09-2017 |

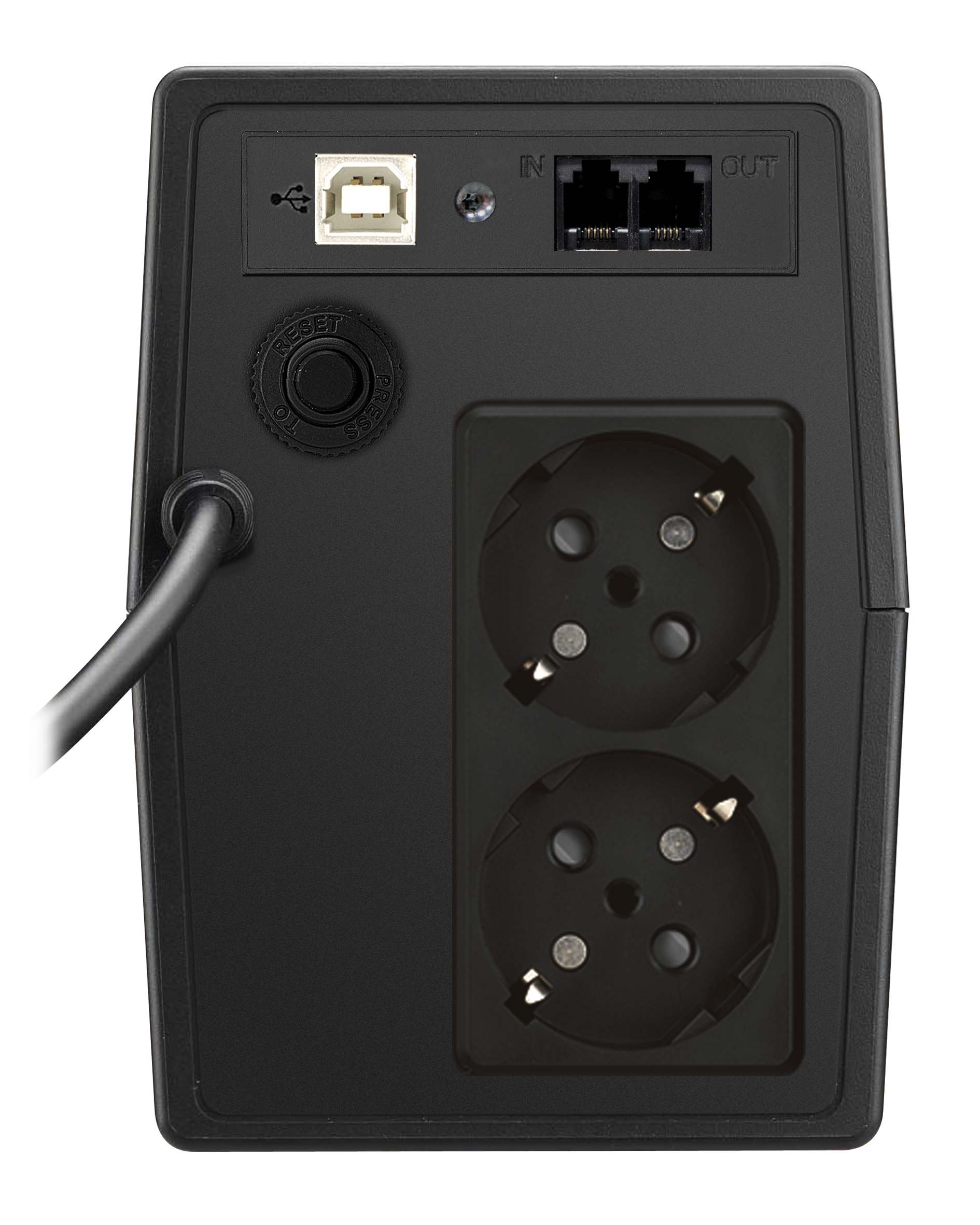

| PM 600-800 LCD schuko back.jpg | 1.4mb | 20-09-2017 |
| 600-800 LCD line interactive schuko or IEC.pdf | 0.6mb | 20-09-2017 |
| PowerMust 400_600_800_1000_1500_2000 LED_LCD.pdf | 2mb | 04-06-2018 |
