PowerMust 800 Offline, Schuko

MODEL	PowerMust 600 offline	PowerMust 800 offline
INPUT
Capacity	600VA/300W	800VA/400W
Nominal Voltage	220/230/240 VAC
Voltage Range	180-270 VAC
Frequency Range	50/60 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	± 10%
Frequency Range (Batt. Mode)	50 / 60 Hz ± 1 Hz
Transfer Time	Typical 2-6 ms, 10 ms max.
Line Mode Voltage	Same as input voltage
Waveform (Batt. Mode)	Simulated Sinewave
Protection	Discharge, Overcharging and Overload protection
BATTERY
Battery Type	12 V/ 4,5 AH x1	12 V / 5 AH x 1
Recharge Time	4-6 hours (recharge to 90% capacity)
Backup Time (half Load)	5 min	5 min
INDICATORS
Line Mode Normal	Green lighting
Battery Normal	Yellow flashing
Battery Low	Yellow flashing
Fault	Red lighting

AUDIBLE ALARM
Battery Mode	Sounding every 10 seconds
Low Battery at battery mode	Sounding every second
Fault	Continuously sounding
Overload	Sounding every 0.5 second
PHYSICAL
Dimension, D x W x H (mm)	305 x 158,5 x 95
Net Weight (kgs)	2,6	2,9
ENVIRONMENT
Operation Humidity	0-90% RH @ 0-40˚ C (non-condensing)
INTERFACE
Power Cord Connector	IEC inlet
Outlet	Schuko x 6 ( 3 for surge only, 3 for battery backup)
Phoneline/ Network protection R45	Yes
	–
LED/LCD	LED x 3

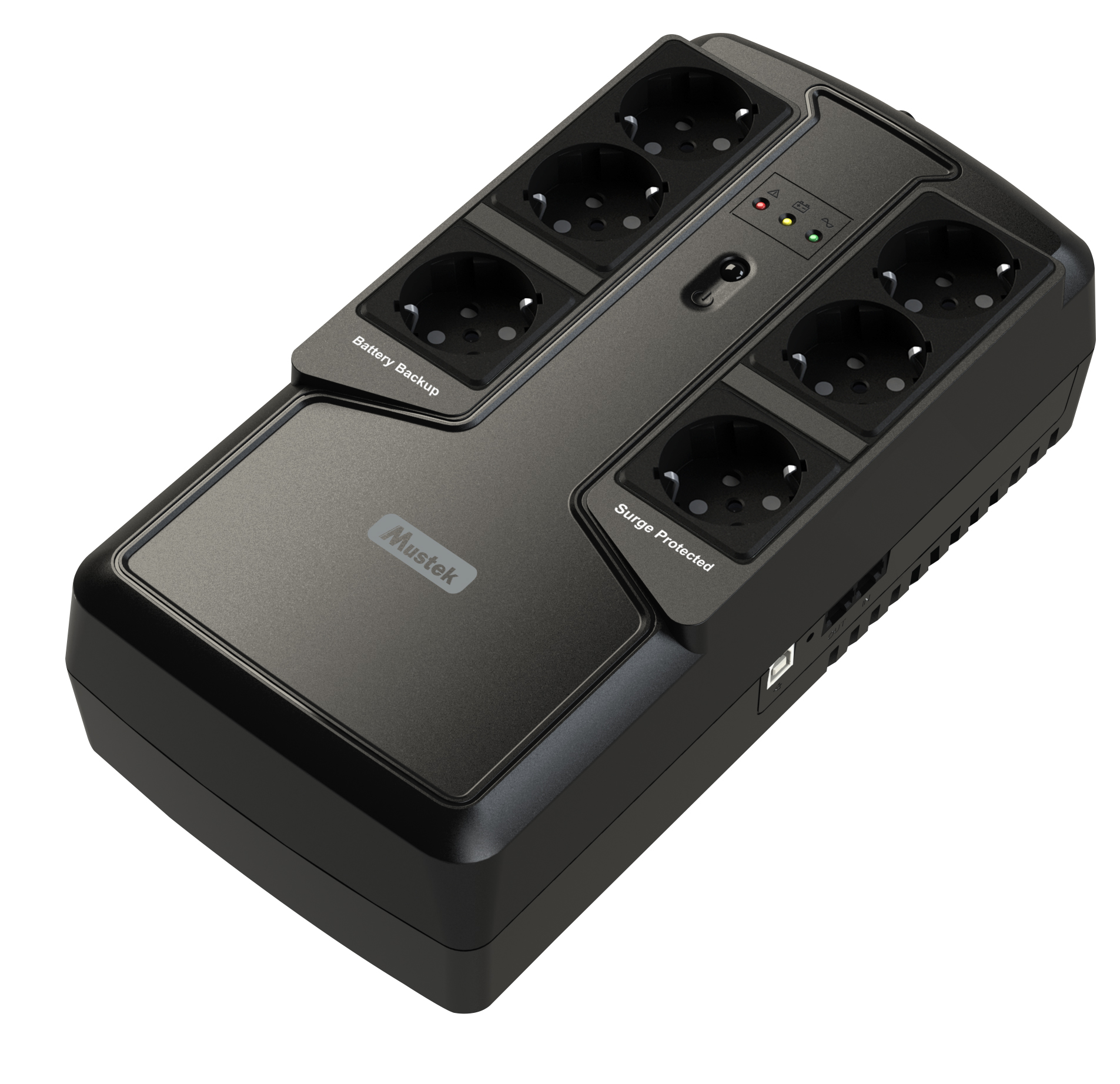

	PM 600-800 offline R side.jpg	0.8mb	20-09-2017

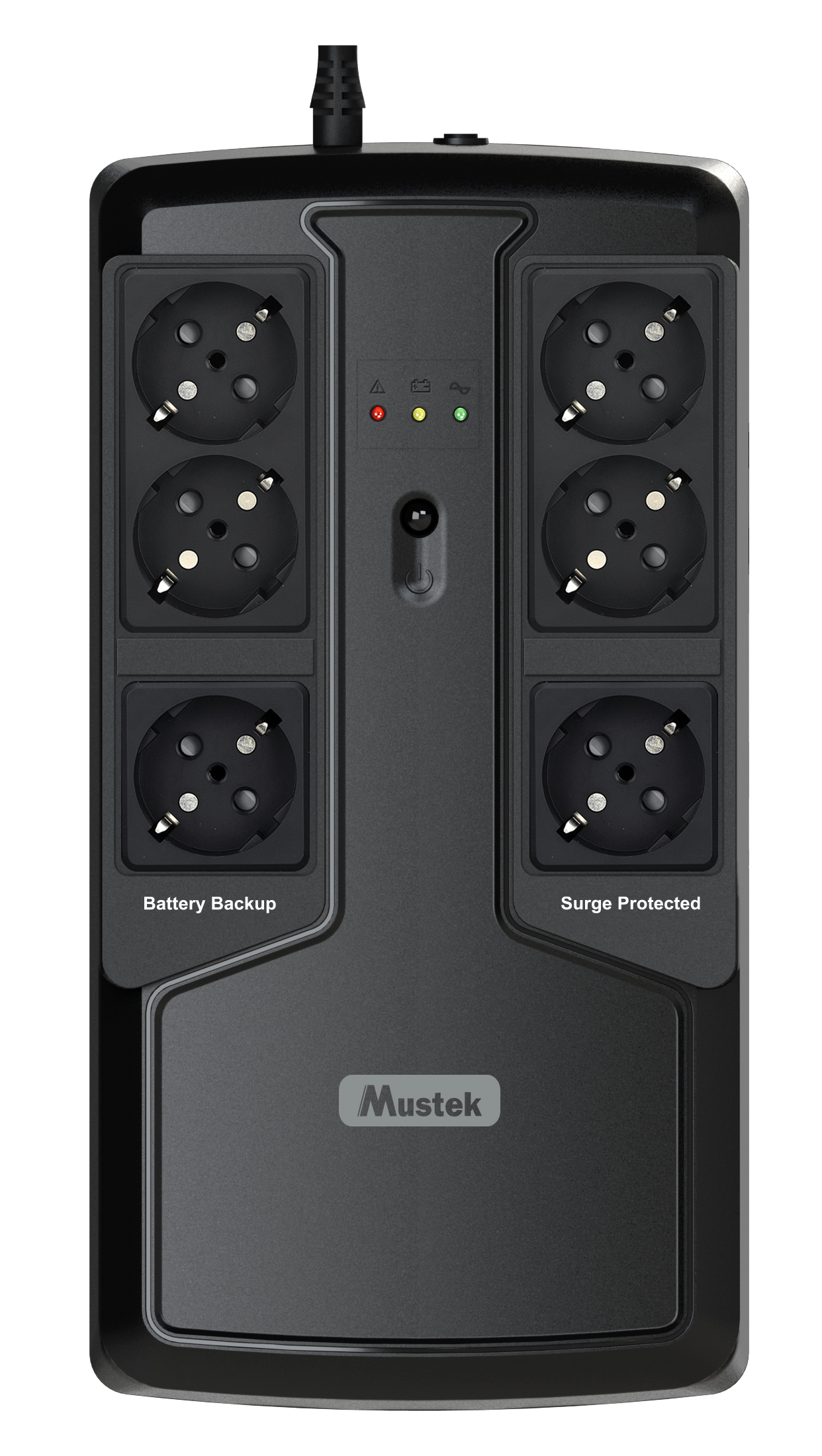

	PM 600-800 offline SchukoTop.jpg	0.9mb	20-09-2017
