Mustek PowerMust 10000 RM Sinewave LCD Online IEC
Out of stock
Mustek PowerMust 10000 RM Sinewave LCD Online IEC
Features
- Pure Sine Wave
- True double-conversion online UPS
- Wide input voltage range (110-300VAC)
- Output Power factor 1
- Emergency power off (EPO) function
- Active input power factor correction 0,99
- Generator compatible
- 50Hz/60Hz frequency converter mode
- SNMP/USB/RS-232 communications
- Optional N+X parallel redundancy
- Adjustable battery numbers
| Specification | ||||
| MODEL | PowerMust 6000 LCD, RM | PowerMust 10000 LCD, RM | ||
| INPUT | ||||
| Capacity | 6000VA/6000W | 10000VA/10000W | ||
| Voltage Range | 110-300VAC@(0-60%) load;140-300VAC @(60-80%) load; 176-300VAC@(80-100%) load | |||
| THDI | < 4% @ 100, < 6% @ 50% load | |||
| Frequency Range | 46-54 Hz@ 50Hz / 56-64 Hz@ 60Hz | |||
| Phase | Single phase with ground | |||
| Power Factor | ≥ 0.99 @ full load | |||
| OUTPUT | ||||
| Output voltage | 208/220/230/240 VAC | |||
| AC Voltage Regulation | ± 1% | |||
| Frequency Range (Synchronized Range) | 46-54 Hz@ 50Hz / 56-64 Hz@ 60Hz | |||
| Frequency range ( Batt. Mode) | 50 or 60 Hz ± 0.1 Hz | |||
| Current Crest Ratio | 3:1 (max.) | |||
| Harmonic Distortion | ≤1,5% THD (Linear Load); ≤7% THD (non-Linear Load) | |||
| Waveform (Batt. Mode) | Pure Sinewave | |||
| BATTERY | ||||
| Battery Type | 12 V / 7 AH x 16 | 12 V / 9 AH x 16 | ||
| Recharge Time | 9 hours recover to 90% capacity | |||
| Charging Current | 1 A (max.) | |||
| BACK-UP TIME | ||||
| Back up time | > 4 min. | > 2,5 min. | ||
| AUDIBLE ALARM | ||||
| Battery Mode | Sounding every 4 seconds | |||
| Battery Low | Sounding every second | |||
| Fault | Continuesly sounding | |||
| Overload | Sounding twice every second | |||
| TRANSFER TIME | ||||
| BAT <–> LINE | 0 ms | 0 ms | ||
| INV <–> BYPASS | 0 ms | 0 ms | ||
| INV –> ECO | 0 ms | 0 ms | ||
| ECO–> INV | < 10 ms | <10 ms | ||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 600 x 438 x 88 (2U) | 600 x 438 x 88 (2U) | ||
| Net Weight (kgs), with batteries | 48 | 48 | ||
| ENVIRONMENT | ||||
| Operation Environment | 0-40˚ | |||
| Relative Humidity | 20-95% (non-condensing) | |||
| Noise Level | < 55 dB @1 Meter | < 58dB @ 1 Meter | ||
| INTERFACE | ||||
| EPO | Emergency Power Off | |||
| Intelligent slot | External Type of SNMP / RS485 / AS 400 / USB card | |||
| USB port | Yes | |||
| ACCESSORIES | ||||
| Accessories | User manual, EPO connector x1, Input power cord schuko, USB cable x 1,pedestal for tower installation x2, Fitting Ear for UPS x2, Fitting Ear for PDU x1( 10900 x2), Software CD | |||
| MANAGEMENT | ||||
| Smart RS 232 or USB Port | Supports Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC | |||
| Optional SNMP | Power Management from SNMP manager and Web browser | |||
Additional information
| Weight | 5.2 kg |
|---|

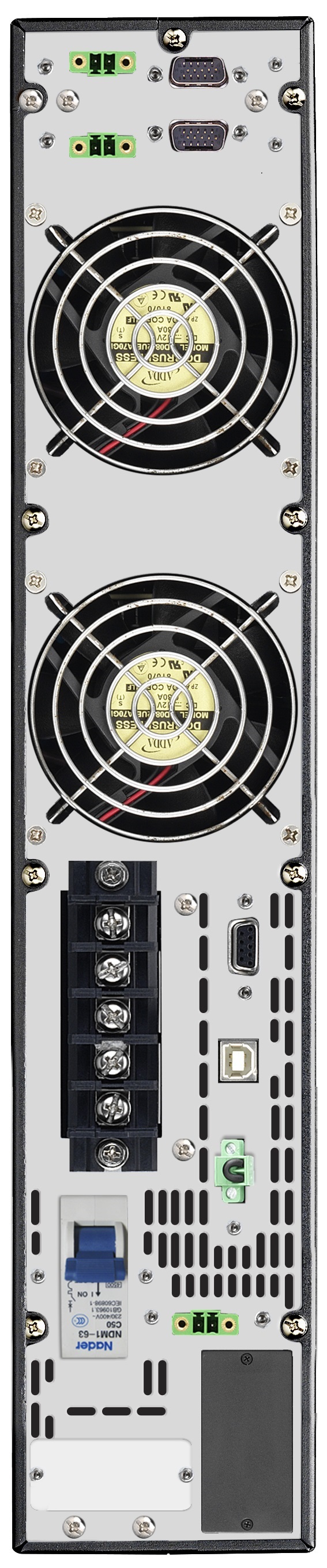

 | PM 6000-10000 LCD RM Online IEC back.jpg | 0.5mb | 20-09-2017 |

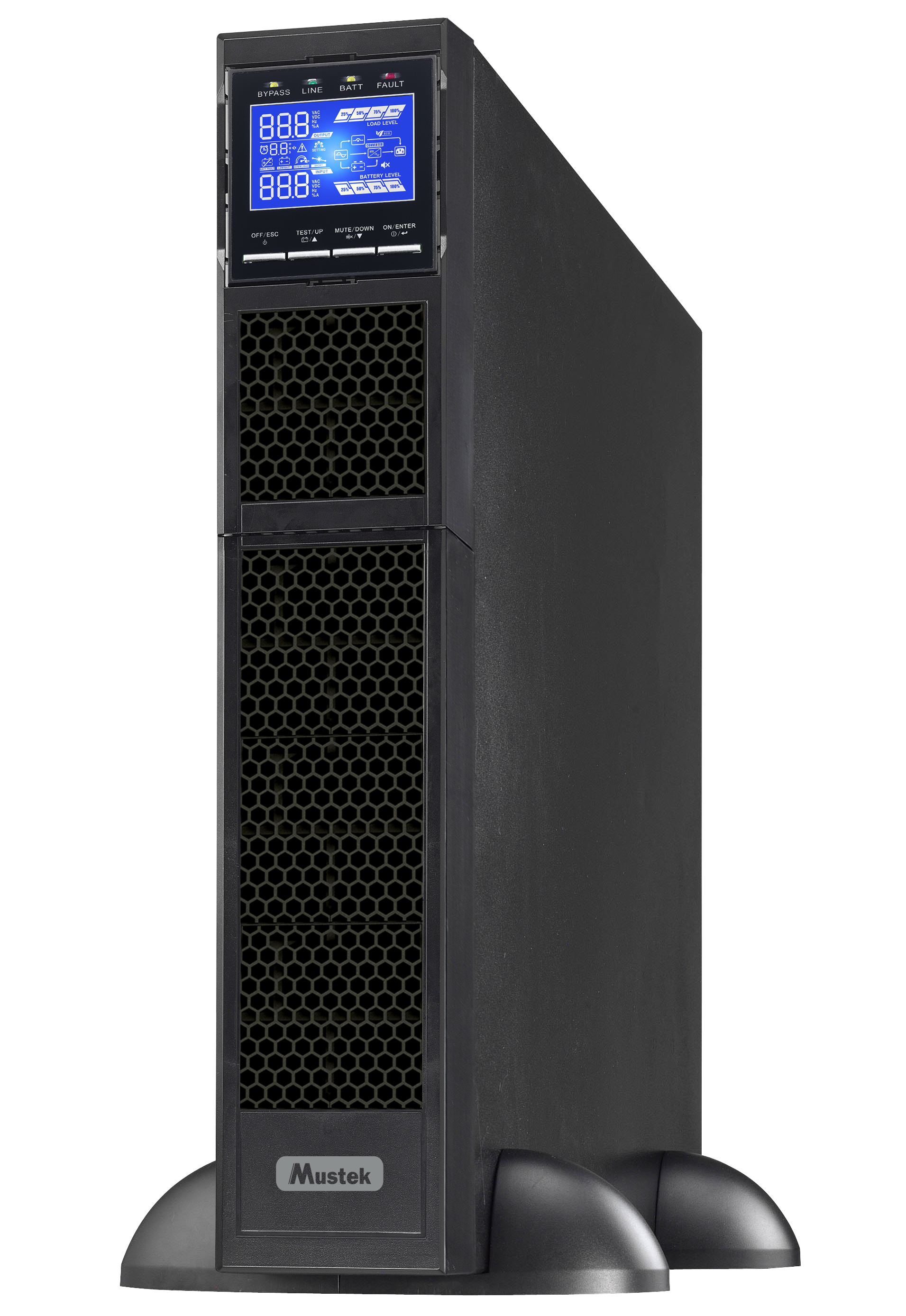

| PM 6000-10000 LCD RM Online IEC front.jpg | 1.6mb | 20-09-2017 |
